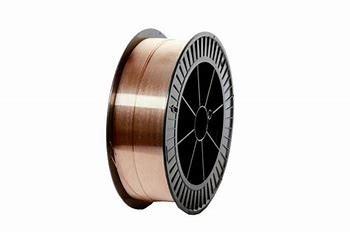

C02 Mig Mag Soldering Wire 0.8mm 15Kg Plastic Metal Spool Copper Coated
C02 Mig Mag Soldering Wire 0.8mm 15Kg Plastic Metal Spool Copper Coated
Specifications
Brand Name :
LONGTENG
Model Number :
LT·ER70-G
Certification :
TUV CE, ABS, DB, ISO9001
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
High Strength Steel Solid Welding Wire LT·ER70-G
Model :
LT·ER70-G (ER100S-G)
Brand :
LONGTENG
Diameter :
0.8/0.9/1.0/1.2/1.6mm
Weight :
1/5/15/20kg
Surface :
Cooper plating
Spool material :
Black plastic spool
Packing :
Color box
OEM :
Accept
Diameter of spool :
100/200/270/300mm
Description

C02 Mig Mag Soldering Wire 0.8mm 15Kg Plastic Metal Spool Copper Coated Welding Wire SG2 ER70s-6

Features:

ER70S-6 is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.

Application:

Used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.

Conform with:

GB/T ER50-6 DIN SG2 JIS YGW12

AWS ER70S-6 BS A18 EN G3Si1

Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Mo Ti Cr Cu
Guarantee Value ≤0.11 1.40~ ≤0.80 ≤0.025 ≤0.025 0.50~ 0.20~ ≤0.16 ≤0.30 ≤0.50
1.9 1.55 0.6

Mechanical Properties of Deposited Metal(Ar+20%CO2)
Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-20℃
Guarantee Value ≥670 ≥610 ≥16 ≥27
General Result 740 645 23 121/128/126

Notes:
1. The welding electrodes should be preheated 2 hour at 300~350℃ before welding.
2. The impurities such as rust, oil stains and moisture must be cleared off of the work piece.
