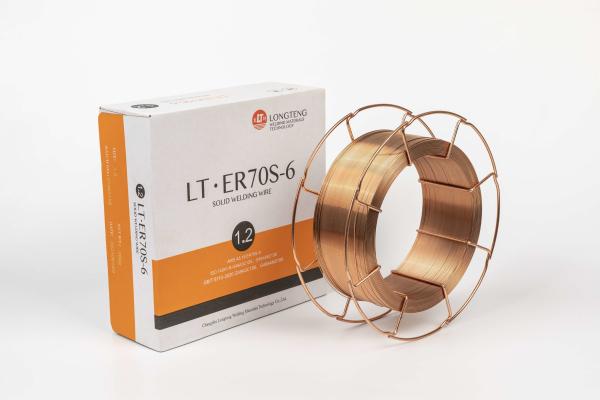

Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire
Specifications
Brand Name :
LONGTENG
Model Number :
ER70S-6 (ER50-6)
Certification :
TUV CE, ABS, DB, ISO9001
Place of Origin :
CHINA
MOQ :
One pallet
Price :
USD 1
Payment Terms :
L/C, T/T
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Brand :
LONGTENG
Modle :
ER70S-6 (ER50-6)
Certificate :
TUV CE, ABS, DB, ISO9001
Country of origin :
CHINA
Size(mm) :
0.8mm 1.0mm 1.2mm 1.6mm
CHARACTERISTICS :
higher manganese
Description

Mild Steel Copper Coated 0.8mm 1.0mm 1.2mm 1.6mm Er70s-6 CO2 MIG Welding Wire

LT*ER70S-6 0.8/1.0/1.2/1.6mm Cooper Coating CO2 Mig Welding Wire

Features and Applications:

ER70S-6 CO2 Mig Welding Wire is a premium carbon steel electrode formulated for welding carbon
steels with a yield strength range of 55,000-70,000 psi. ER70S-6 is well suited for steels containing medium to high levels of mill scale and mild amounts of contaminants. The wire’s copper coating promotes excellent feeding characteristics.
ER70S-6 CO2 Mig Welding Wire is a good selection for weldments requiring better tie-in and wetting than possible with a 70S-3 electrode. It is a terrific choice for welding pressure vessels,structural steel, pipe, steel buildings, and automotive repair.
CHARACTERISTICS:
1. Has higher manganese and silicon for improved performance over scaled plate.
2. Excellent feedability and welder appeal.
3. Extremely stable and consistent arc transfer.
4. Achieves high wire feed speeds without problems.

LT·ER50-6 ER70S-6 CO2 Mig Welding WireConform to Standard :

GB/T 8110 ER50-6

ISO 14341-A-G424C13Si1

AWS A5.18 ER70S-6

JIS YGW12

Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V Cu
Guarantee Value 0.06~0.15 1.40~1.85 0.80~1.15 ≤0.025 ≤0.025 ≤0.15 ≤0.15 ≤0.15 ≤0.03 ≤0.50
General Result 0.077 1.45 0.87 0.013 0.012 0.017 0.031 0.002 0.004 0.125

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-40℃
Guarantee Value ≥500 ≥420 ≥22 ≥47
General Result 555 450 29 77/95/83

Reference Current(DC+)
Size(mm) Current range (A) GAS flow rate(L/min)
Φ0.8 50~100 15
Φ1.0 50~220 15~20
Φ1.2 80~350 15~25
Φ1.6 170~550 20~25
