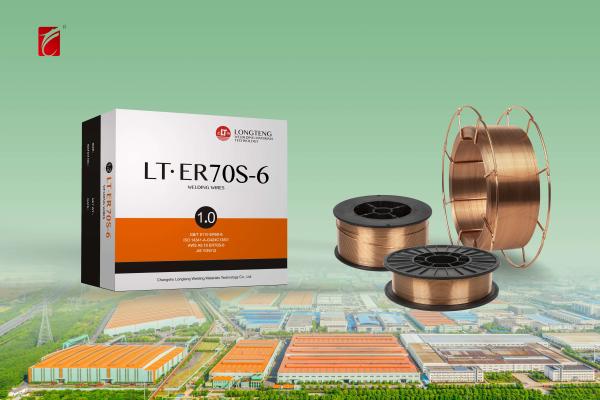

Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Er70s-6 Welding Wire With Black Spool D270 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Specifications
Brand Name :
LONGTENG
Model Number :
ER70S-6
Certification :
TUV CE, ABS, DB, ISO9001,CCS
Place of Origin :
China
MOQ :
One pallet
Price :
USD 1
Payment Terms :
L/C, T/T,
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT Color box/OEM brand box
Description

Er70s-6 Welding Wire With Black Spool D270 Good Quality On Hot Sale 0.8/0.9/1.0/1.2/1.6mm

Basic Info.

Model NO.
ER70S-6
Application
Mechanic Manufacture, Shipbuilding, etc
OEM & ODM
Provided
Drum
100kg 250kg 350kg
Diameter
0.8 0.9 1.0 1.2 1.6 2.0mm
Approvals
ABS Ce ISO TUV dB Lr Gl BV Nk CCS RoHS
Business Type
Manufacturer
Deadline
10~20 Days
Melting Point
2700 Degree
Steel
Mild Steel/Low Alloy Steel
Transport Package
5kg 15kg 20kg/Spool
Specification
CE
Trademark
PANDING/OEM
Origin
Changshu, China
Surface
Cooper Plating
Production Capacity
1,200,000 TONS

Product Description

Chinese HOT SALE CO2 ER70s-6 Welding wire

1. Brief Introduction:

AWS A5.18 CO2 Welding Wire ER70S-6 has excellent mechanical performance such as depositing speed and

high efficiency, stable arc, little splash, good welding seam.

This series of AWS A5.18 CO2 Welding Wire ER70S-6 are suitable for the low carbon steel and low alloy

structure, vehicle, bridge, container, construction machinery, boilers and construction etc. High depositing speed and efficiency, stable arc, little splash, good welding seam.

2. Size:

Wire Size Spool Size Package Size

0.8mm
0.9mm

1.0mm
1.2mm
1.6mm

D270mm
D270mm

D270mm

D270mm

5kg

15kg

20kg

250kg

3. Chemical Composition:

C Mn Si S P Cu Other
Standard Value 0.06-0.15 1.40-1.85 0.80-1.15 ≤0.035 ≤ 0.025 ≤ 0.50 ≤ 0.50
Sample Value 0.08 1.51 0.92 0.020 0.016 0.20 0.02

4. Typical Mechanical Properties of Deposited Metal:

Tenile Strength

δb (MPa)

Yield Point

δ0.2(MPa)

Elongation

δ5 (%)

AKV Impact Value

(J) (-20°C)

 Shielding Gas
≥ 500 ≥ 420 ≥ 22 ≥ 27 CO2; CO2 + Ar
560 500 27 102 CO2 ; CO2 + Ar

5.Diameter of wire & referance current(DC+)

Diameter of wire (mm) Ø0.8 Ø 1.0 Ø 1.2 Ø 1.6
F current (A) 40-180 50-220 80-350 170-550
V current (A) 40-140 50-160 50-180
OH current (A) 40-120 50-160 45-180


6.Application:

This series of CO2 Welding Wire ER70S-6
are suitable for the carbon steel and Welding for the vehicle,

building, ship and bridge which using shipping steel and high intensity of 500Mpa, and also can used in sheet,pipe of high speed welding.
