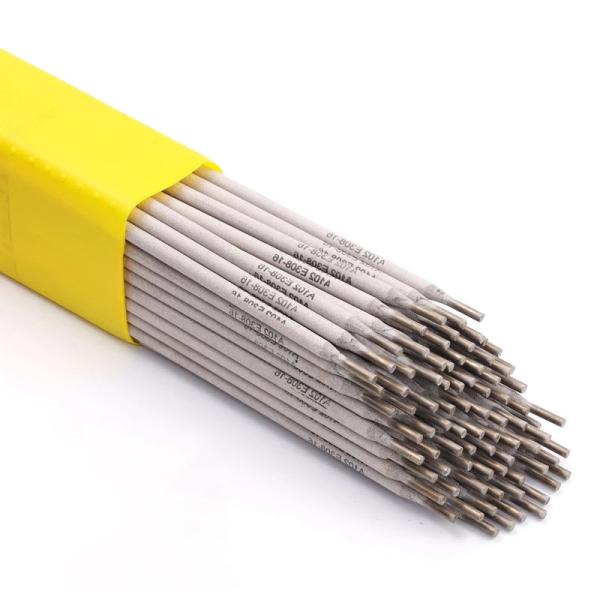

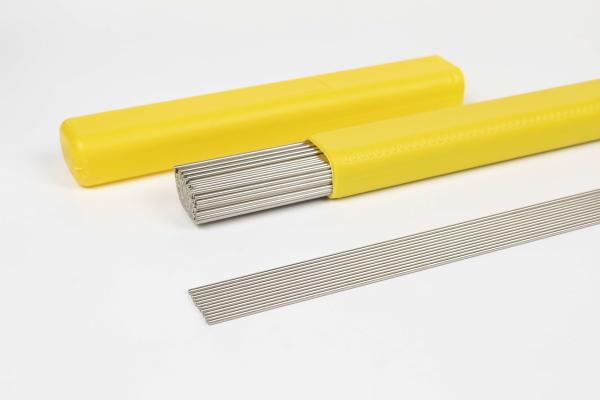

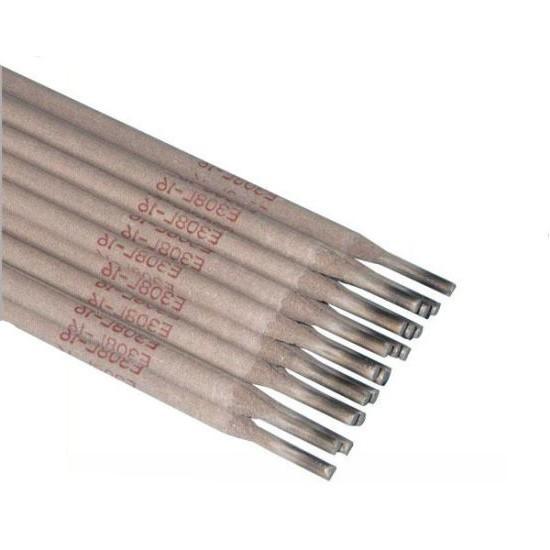

E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
E347-16 347 Stainless Steel Welding Rod 1/16 1/8 1.6MM 2.0MM 2.5MM
Specifications
Brand Name :
LONGTENG
Model Number :
E347-16
Certification :
TUV CE, ABS, DB, ISO9001,CCS
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
Stainless Steel Electrodes LT·A132
Model :
E347-16
Brand :
LONGTENG
Diameter :
2.0/2.5/3.2/4.0/5.0
Weight :
5kg
Type of Coating :
Calcium-Titanium
Packing :
Plastic box
OEM :
Accept
Description

E347-16 347 Stainless Steel Welding Rod 1/16" 1/8" 1.6MM 2.0MM 2.5MM

E347-16 2.0/2.5/3.2/4.0/5.0 mm Stainless Steel Electrodes

Descrption of Stainless Steel Electrodes

Conform to Standard

GB/T 983 E347-16

AWS A5.4 E347-16

ISO 3581-A-E(19 9Nb) R 3 2

ISO 3581-B-ES 347-16

Specification:A132 is a kind of Titanium calcium type coating Cr19Ni10Nb which contains the Nb stabilizing property. It has excellent mechanical properties and inter granular corrosion resistance. Heat resistance coating and crack resistance. AC/DC both can be applied.

Chemical Composition(%)

Chemical Composition C Mn Si S P Cr Ni Mo Cu Nb+Ta
Guarantee Value

≤

0.08

0.50~

2.50

≤

1.00

 ≤0.030 ≤0.040

18.0~

21.0

9.0~

11.0

≤

0.75

≤

0.75

8×C~

1.00
General Result 0.045 1.68 0.76 0.008 0.021 19.80 9.70 0.066 0.105 0.45

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥520 ≥25
General Result 630 41

Reference Current(AC,DC+)
Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~80 50~100 70~130 100~160 140~200

Notes:

1. The electrode must be preheated at the temperature of 300°C for 1 hour. Preheat the rod whenever it is used

2. Preferred DC power supply, electric current should not be high.
