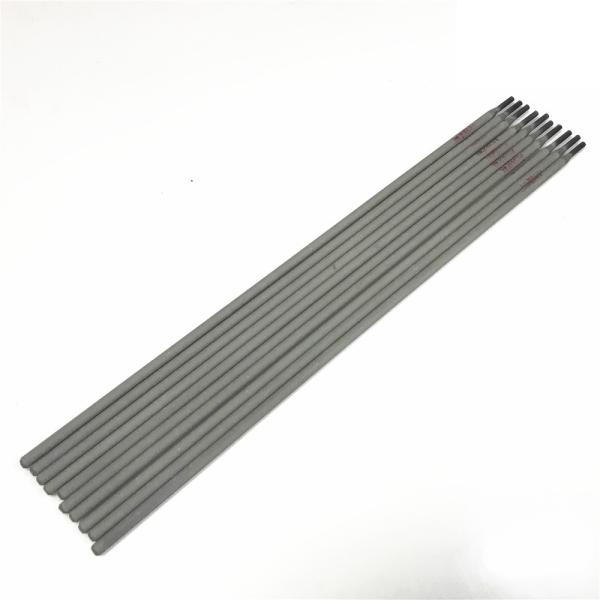

E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
E4303 High Carbon Steel Welding Electrodes 2.0/2.5/3.2/4.0/5.0 Diameter
Specifications
Brand Name :
LONGTENG
Model Number :
E4303
Certification :
TUV CE, ABS, DB, ISO9001,CCS
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
Carbon Steel Electrodes E4303
Model :
E4303
Brand :
LONGTENG
Diameter :
2.0/2.5/3.2/4.0/5.0
Weight :
5kg
Type of Coating :
Calcium-Titanium
Packing :
Plastic box
OEM :
Accept
Description

E4303 Welding Electrode Cs Welding Rod For High Carbon Steel Welding Electrodes

E4303 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes

LT·J422 Conform to Standard GB/T 5117 E4303

ISO 2560-B-E 43 03 A


Specification:Welding electrode E4303 (J422) is rutile-calcium based carbon steel welding electrode. It has excellent welding performance and mechanical properties that enables to operate on AC/DC, perform all-position welding. It is featured with stable arc, small spatter, easy slag peeling and arc re-striking. Weld bead is smooth and clean. It is flexible in weld ripple width and thickness.

Purpose:GB E4030 is used for welding of low carbon steel structure and low strength grade of low alloy steel structure. Such as Q235, 09Mnv, 09Mn2 etc.

Chemical Composition(%)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

≤

0.20

≤

1.20

≤

1.00

 ≤0.035 ≤0.040

≤

0.30

≤

0.20

≤

0.30

≤

0.08
General Result 0.077 0.42 0.18 0.018 0.023 0.020 0.032 0.008 0.005

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) ReL(MPa) A(%) KV2(J)
0℃ -20℃
Guarantee Value ≥430 ≥330 ≥20 ≥27 ≥47
General Result 469 385 30 97 70

X-Ray Radio-graphic Test Requirements:Grade II

Reference Current(AC,DC)

Diameter(mm) Φ2.0 Φ2.5 Φ3.2 Φ4.0 Φ5.0
Amperage(A) 40~70 60~100 80~140 140~220 180~230
