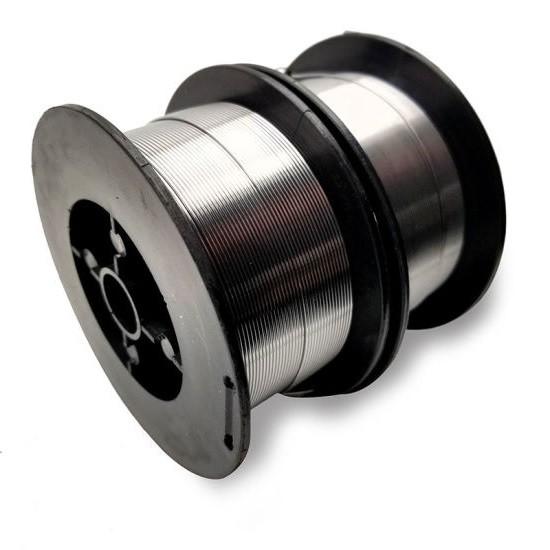

E501Ni Gmaw Flux Cored Arc Welding Wire 5kg CO2 Shielding 0.035 0.030
E501Ni Gmaw Flux Cored Arc Welding Wire 5kg CO2 Shielding 0.035 0.030
E501Ni Gmaw Flux Cored Arc Welding Wire 5kg CO2 Shielding 0.035 0.030
E501Ni Gmaw Flux Cored Arc Welding Wire 5kg CO2 Shielding 0.035 0.030
Specifications
Brand Name :
LONGTENG
Model Number :
E501Ni
Certification :
TUV CE, ABS, DB, ISO9001
Place of Origin :
CHINA
MOQ :
one pallet
Price :
USD 1
Supply Ability :
1,200,000 TON PER YEAR
Delivery Time :
15 WORKING DAYS
Packaging Details :
Neutral box/ LT color box/OEM brand box
Product name :
Gas Shielded Flux Cored Arc Welding Wire E501Ni
Model :
E501Ni
Brand :
LONGTENG
Diameter :
1.0/1.2/1.4/1.6mm
Weight :
1/5/15/20kg
Surface :
Silvery
Spool material :
Black/White plastic spool
Packing :
Color box
OEM :
Accept
Diameter of spool :
100/200/270/300mm
Description

E501Ni Gmaw Flux Cored Arc Welding Wire 5kg .035" 0.030"

LT*E501Ni E71T1-C1A4-Ni1 1.0/1.2/1.4/1.6mm CO2 Gas Shielded Flux Cored Arc Welding Wire

LT·E501Ni

Conform to Standard :GB/T 17493 E491T1-Ni1C

AWS A5.36 E71T1-C1A4-Ni1

JIS Z3313 T493T1-1CA-N2

ISO 17632-B-T493T1-1CA-N2


Purpose:Most widely used for welding some key structures like shipbuilding, mechanical manufacture, pressure vessels, boilers, petroleum machinery, chemical machinery, hoisting machinery etc.

Specification: LT·E501Ni is a kind of titanium oxide gas shielded( CO2)flux-cored wire,It has excellent welding performance,soft and stable arc, lower spatters, good slag detach ability and beautiful appearance of weld; suitable for all-position welding,It has high welding efficiency. The weld metal has been given toughening treatment by micro-elements.so it has excellent low temperature toughness, good crack-resistance, stable and reliable inherent quality.

Chemical Composition(%)(Shielding Gas:CO2)

Chemical Composition C Mn Si S P Ni Cr Mo V
Guarantee Value

≤

0.12

≤

1.50

≤

0.80

 ≤0.030 ≤0.030

0.80~

1.10

≤

0.15

≤

0.35

≤

0.05
General Result 0.04 1.28 0.38 0.006 0.011 0.90 - - -

Mechanical Properties of Deposited Metal(Shielding Gas:CO2)

Test Item Rm(MPa) ReL/Rp0.2(MPa) A(%) KV2(J)
-30℃ -40℃
Guarantee Value 490~620 ≥400 ≥20 ≥27 -
General Result 570 510 27 135 120
Diffusion hydrogen content of the deposited metal (Mercury Method)≤10ml/100g

Reference Current(DC+)

Size(mm) Φ1.2 Φ1.4 Φ1.6
Current Range (A) Flat Position 120~300 150~400 180~450
Vertical Upward welding/ Overhead position 120~260 150~270 180~280
Vertical Downward weldingOverhead position 200~300 220~300 250~300
Horizontal Welding 120~280 150~320 180~350

Notes:

1. Adopt degreasing and rust cleaning process before operate.

2. Shielding gas flow: 20-25L/min when welding

3. Extension: 15-25mm

4. The humidity of welding wire storage should be less than 60%

5. Storage period: Vacuum packaging less than 1 Year, other packaging less than half year.
