9.0mm Spun Piles Prestressed Concrete Steel Bar High Tensile Steel Rod
9.0mm Spun Piles Prestressed Concrete Steel Bar High Tensile Steel Rod
Specifications
Brand Name :
LT
Model Number :
Dia9.0m
Certification :
JISG3137
Place of Origin :
CHINA
MOQ :
20mt
Delivery Time :
IN 7 DAYS AFTER ORDER
Grade :
30MnSi
Surface :
Spiral Groove
Tensile Strngth :
≥1420Mpa
Yield Strength :
≥1280Mpa
Relaxation :
≤2.0%
Elongation :
≥7.0%
Nominal area :
64mm2
Application :
PHC PILE
Description

9.0MM PRESTRESSED CONCRETE STEEL BAR

1, Technical parameters of PC BAR

Size(mm) Surface Shape Type

Nominal steel area

(S/mm2)

Tensile Strength

(Mpa)

Yield Stress

(Mpa)

Relaxation

rate

(%)

Elongation

(%)
7.1/7.4 Spiral Groove 39-41.7 ≥1420 ≥1280 ≤2.0 ≥7.0
9.0/9.2 62.4-66.5
10.7/11 87.5-93.6
12.6/13 121.5-129.9

2, Chemical composition (%) of PC BAR –Material 30MnSi

C Si Mn P(Max) S(Max) Cu(Max)
0.28-0.33 0.60-0.90 0.90-1.30 0.03 0.035 0.3

3, Reference info

Production standard JIS G 3137 SBPDL 1275/1420 / KSD3505 / MS1138:PART 3/ SNI 7701:2016

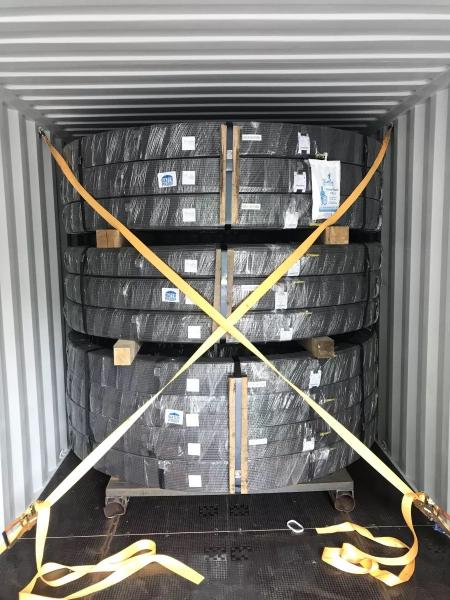

Packing Tied with at least 8 steel strips per coil, wrapped with PP woven or stretch film
Coil weight Approx. 0.9MT and 1.3MT
Diameter of Coil Inside Dia.:1.99m Outside Dia.:2.3m Height:18cm
Application Pre-stressed concrete pile /Spun piles /Poles
