300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
Specifications
Brand Name :
LONGTENG
Model Number :
D300-D600
Place of Origin :
CHINA,CHANGSHU
MOQ :
25MT
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
4,000MT/MONTH
Delivery Time :
30 DAYS
Packaging Details :
SEAWORTHY OF PACKING
Material :
Q235B
Specification :
D300-D600
Sufurface :
black or polished
Applicatoin :
for prestressed concrete pile joint end plate
Package :
export standard package
Shipment :
by 20'gp container
Description

D400X95X20-7-10.7, END PLATE FOR PHC

Concrete pile end plate is a fixed connecting part for steel cage of concrete pile, it bears and transfers all loads of tensioning. And end plate is also the important part to connecting two concrete piles together, so the material of the end plate should be better weldability and mechanical strength.

Material :Q235B

Sizes with GB Standard:

ITEM Specification(mm)
1 300*70*16-6-7.1
2 300*70*18-6-9.0
3 300*70*18-8-9.0
4 300*70*20-8-10.7
5 400*95*16-10-7.1
6 400*95*18-10-9.0
7 400*95*18-7-9.0
8 400*95*20-10-10.7
9 400*95*20-13-10.7
10 400*95*20-7-10.7
11 500*100*18-11-9.0
12 500*100*18-11-10.7
13 500*100*20-11-10.7
14 500*100*20-11-9.0
15 500*100*24-11-12.6
16 500*100*24-13-12.6
17 500*110*18-11-9.0
18 500*110*20-11-10.7
19 500*110*24-11-12.6
20 500*110*24-13-12.6
21 500*125*18-12-9.0
22 500*125*20-12-10.7
23 500*125*24-12-12.6
24 500*125*24-15-12.6
25 600*110*18-14-9.0
26 600*110*20-14-10.7
27 600*110*24-14-12.6
28 600*110*24-17-12.6
29 600*130*18-16-9.0
30 600*130*20-16-10.7
31 600*130*24-16-12.6
32 600*130*24-20-12.6

Could produce special speficiations accoridng to customer's requirements.

Our advantage:

1) We run two sets of blast furnaces, could supply completed productoin chain from Iron Making, Steel Making, Billet Making, Spring Rolling,

End Plate processing.

2) The first fully automatic production lines in China is applied to end plate production. Could save labor cost and supply competitive price.

Raw material made by our own facotory, blast furance billet, quality assurance:

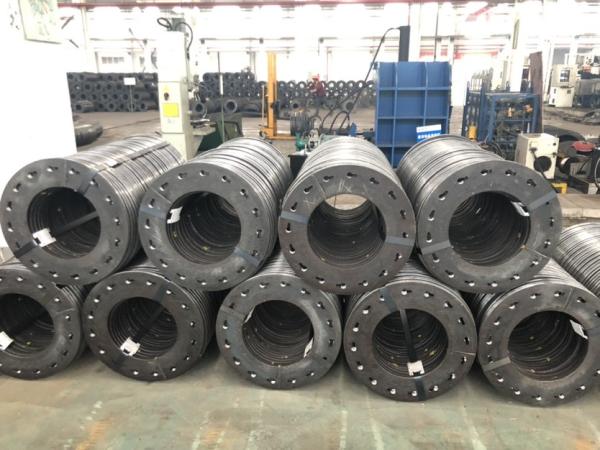

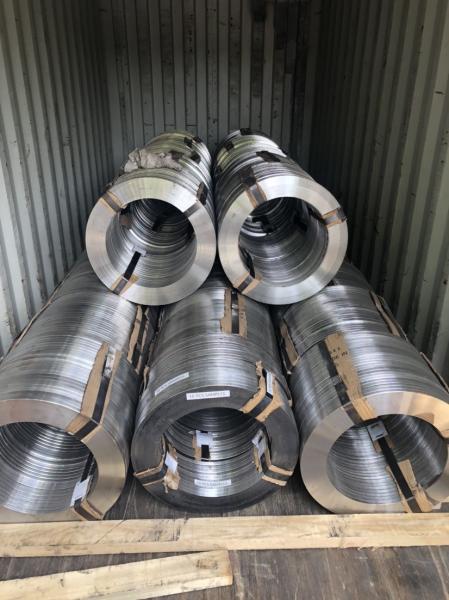

300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7

Product detail:

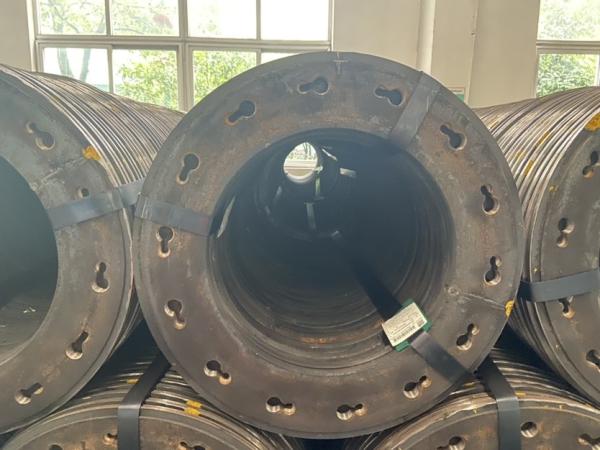

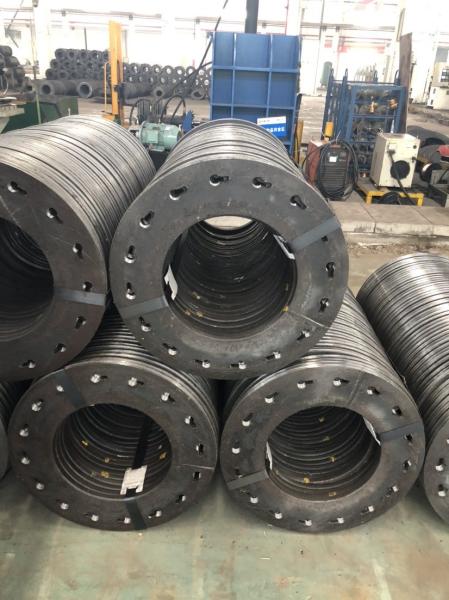

300-1500mm PHC Spun Pile End Plate D400x95x20-7-10.7
