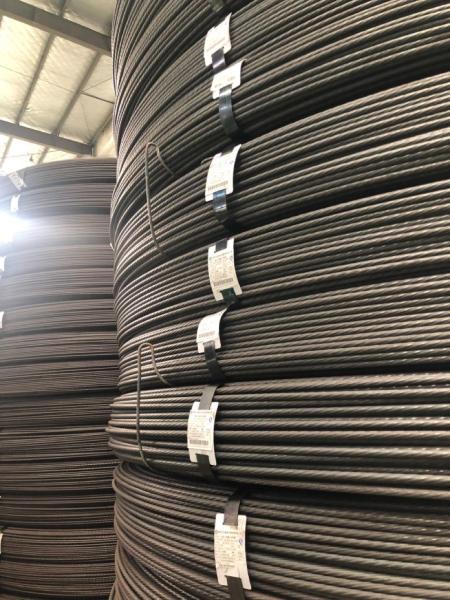

1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
Specifications
Brand Name :
LT
Model Number :
Dia7.1mm Dia9.0mm Dia10.7mm Dia12.6mm
Certification :
JIS G3137-2008
Place of Origin :
CHINA
MOQ :
20mt
Delivery Time :
IN 7 DAYS AFTER ORDER
PRODUCT NAME :
PRESTRESSED CONCRETE STEEL BAR
MATERIAL :
30MnSi
APPLICATION :
Prestressed Concrete Pile
SURFACE :
GROOVE ON SURFACE
BRAND :
LT
DIAMETER :
7.1MM,9.0MM,10.7MM,12.6MM
Description

PC STEEL BAR PRESTRESSED CONCRETE STEEL BAR

1, Technical parameters of PC BAR

Size(mm) Surface Shape Type

Nominal steel area

(S/mm2)

Tensile Strength

(Mpa)

Yield Stress

(Mpa)

Relaxation

rate

(%)

Elongation

(%)
7.1/7.4 Spiral Groove 39-41.7 ≥1420 ≥1280 ≤2.0 ≥7.0
9.0/9.2 62.4-66.5
10.7/11 87.5-93.6
12.6/13 121.5-129.9

2, Chemical composition (%) of PC BAR –Material 30MnSi

C Si Mn P(Max) S(Max) Cu(Max)
0.28-0.33 0.60-0.90 0.90-1.30 0.03 0.035 0.3

3, Application : Concrete plie

Product detail:

1280mpa Prestressed Concrete Steel Bar For Bridge 9.0mm 9.2mm
