600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
600mm Concrete Pile End Plate Joint Plates For Spun Pile
Specifications
Brand Name :
LONGTENG
Model Number :
D400X95X20-7-10.7-D600X130X20-16-10.7
Place of Origin :
CHINA
MOQ :
25MT
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
4,000MT/MONTH
Delivery Time :
30 DAYS
Packaging Details :
SEAWORTHY OF PACKING
Material :
Q235B
Standard :
GB, JIS
Package :
Nude package or wood pallet
Shipment :
by 20'gp container
Diameter :
D300-D1200
Application :
Prestressed Conrete Pile
Description

D600X110X20-14-10.7 , Q235B, FOR CONCRETE PILE, END PLATE​

Material :Q235B or customized

Sizes:

ITEM Specification(mm)
1 300*70*16-6-7.1
2 300*70*18-6-9.0
3 300*70*18-8-9.0
4 300*70*20-8-10.7
5 400*95*16-10-7.1
6 400*95*18-10-9.0
7 400*95*18-7-9.0
8 400*95*20-10-10.7
9 400*95*20-13-10.7
10 400*95*20-7-10.7
11 500*100*18-11-9.0
12 500*100*18-11-10.7
13 500*100*20-11-10.7
14 500*100*20-11-9.0
15 500*100*24-11-12.6
16 500*100*24-13-12.6
17 500*110*18-11-9.0
18 500*110*20-11-10.7
19 500*110*24-11-12.6
20 500*110*24-13-12.6
21 500*125*18-12-9.0
22 500*125*20-12-10.7
23 500*125*24-12-12.6
24 500*125*24-15-12.6
25 600*110*18-14-9.0
26 600*110*20-14-10.7
27 600*110*24-14-12.6
28 600*110*24-17-12.6
29 600*130*18-16-9.0
30 600*130*20-16-10.7
31 600*130*24-16-12.6
32 600*130*24-20-12.6

Could produce different speficiations accoridng to customer requirements.

Raw material made by our own facotory:

600mm Concrete Pile End Plate Joint Plates For Spun Pile

600mm Concrete Pile End Plate Joint Plates For Spun Pile

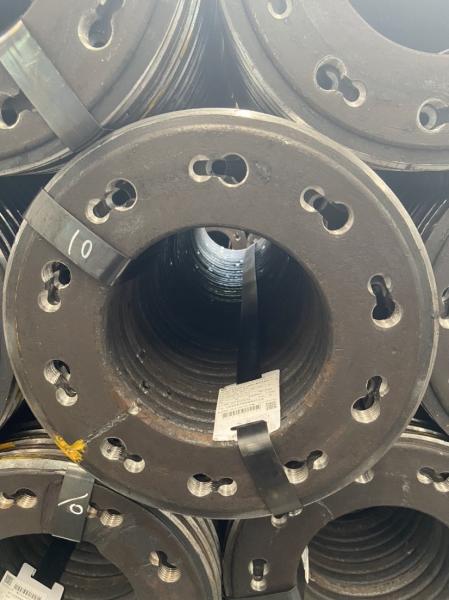

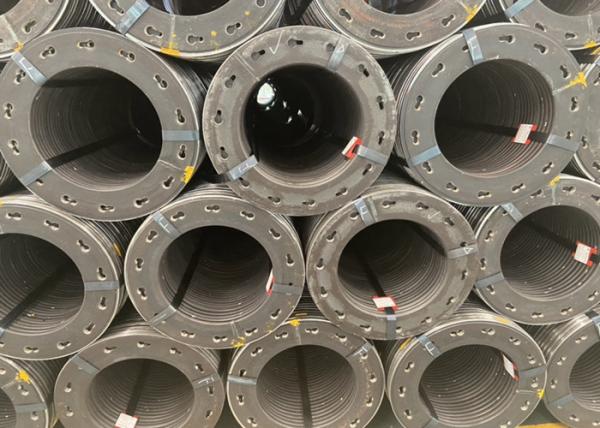

Finished product:

600mm Concrete Pile End Plate Joint Plates For Spun Pile

600mm Concrete Pile End Plate Joint Plates For Spun Pile

600mm Concrete Pile End Plate Joint Plates For Spun Pile
