Using Aluminum profile LED linear light SMD3014 led chip with high quality
Using Aluminum profile LED linear light SMD3014 led chip with high quality
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
LGTO
Certification :
CE&ROHS
Model Number :
LGTO-LNLL3014-W15-2.5M
MOQ :
50pcs
Delivery Time :
7-15 days
Payment Terms :
T/T, Western Union or Paypal
Supply Ability :
1000pcs/day
Description

Using Aluminum profile LED linear light SMD3014 led chip with high quality

Features:

Using high brightness SMD3014 and 2835 led chip
Input voltage:24V DC
Color: White,Warm White,Nature White and RGB color
Non-waterproof
Quick and Easy to install, beautiful appearance
Low power consumption & high intensity
70%-80%Energy saving
Long lifespan: 50,000 hours
Description:
Installation type:pendant type/Surface type

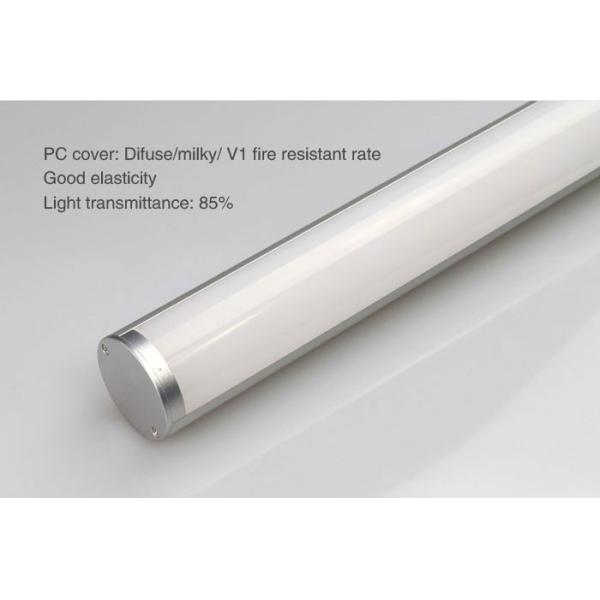

PC cover:Diffuse/V1 fire resitsnt rate
Ending cap:Silver PC with hole;V1 fire resistant rate
Matched FPCB:15-20mm width
Aluminun type:6063-T5Aviation aluninum,anodized aluminm

Specification:

Model NO.

Color

Power

Voltage

LED QTY(M)

Size

LGTO-LNLL3014-W15-1M

W/WW/NW/RGB

28.8W/M

DC24V

240PCS SMD3014

1010*19*36MM

LGTO-LNLL3014-W15-2M

W/WW/NW/RGB

28.8W/M

DC24V

240PCS SMD3014

2010*19*36MM

LGTO-LNLL3014-W15-2.5M

W/WW/NW/RGB

28.8W/M

DC24V

240PCS SMD3014

2510*19*36MM

LGTO-LNLL2835-W15-1M

W/WW/NW/RGB

34.5W/M

DC24V

144PCS SMD2835

1010*40*40MM

LGTO-LNLL2835-W15-2M

W/WW/NW/RGB

34.5W/M

DC24V

144PCS SMD2835

2010*40*40MM

LGTO-LNLL2835-W15-2.5M

W/WW/NW/RGB

34.5W/M

DC24V

144PCS SMD2835

2510*40*40MM

LGTO-LNLL3014-W10-1MA

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

1010*38*45MM

LGTO-LNLL3014-W10-2MA

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2010*38*45MM

LGTO-LNLL3014-W10-2.5MA

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2510*38*45MM

LGTO-LNLL3014-W10-1MB

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

1010*67*28MM

LGTO-LNLL3014-W10-2MB

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2010*67*28MM

LGTO-LNLL3014-W10-2.5MB

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2510*67*28MM

LGTO-LNLL3014-W10-1MC

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

1010*29*73MM

LGTO-LNLL3014-W10-2MC

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2010*29*73MM

LGTO-LNLL3014-W10-2.5MC

W/WW/NW

14.4W/M

DC24V

120PCS

SMD 3014

2510*29*73MM

Installation:

Pendant Installation type:

1.Drill holes for M3 recessed screw in the aluminum profile evenly.

2.Place LED flexible strip in aluminum profile smoothly and connect

lamp with power supply.

3.Push PC cover in to aluminum profile.

4.Flxthe ending cap in to aluminum profile by screw.

Using Aluminum profile LED linear light SMD3014 led chip with high quality

Surface Installation type:

1.Drill holes for M3 recessed screw in the aluminum profile evenly.

2.Place LED flexible strip in aluminum profile smoothly and connect

lamp with power supply.

3.Push PC cover in to aluminum profile.

4.Flxthe ending cap in to aluminum profile by screw.

5.Fix clips in appropriate place with M3*15 screw.

6.Install the assembled products into the clips.

Using Aluminum profile LED linear light SMD3014 led chip with high quality

Application:

Used close range indoor decorative lighting, like office, meeting room, upscale hotels and restaurants, home use, etc.

Using Aluminum profile LED linear light SMD3014 led chip with high quality
