Specifications

Brand Name :

LONGWAY

Model Number :

GLY

Certification :

CE ISO

Place of Origin :

china

MOQ :

1set

Price :

USD 15000

Payment Terms :

TT.LC

Supply Ability :

10SET PER WEEK

Delivery Time :

25days

Packaging Details :

Wooden case

Material :

SUS304/316

Driven Type: :

Mechanical

Place of Origin: :

Jiangsu, China (Mainland)

Dimension(L*W*H): :

2300X2100X2200MM

After-sales Service Provided: :

Engineers available to service Overseas

Packaging Material: :

Glass, Plastic

Voltage :

220V/380V, Customized

Brand Name: :

Longway

Weight :

2500kg

Guarantee time: :

18 Months

Filling type: :

Balanced pressure Filling

Aplication :

Beverage, carbonated beverage

Automatic Grade :

: Automatic

Power :

5KW

Model Number: :

DCGF16-12-6

PLC/ transducer/ touch screen:: :

Siemens

Washing Heads :

Filling Heads :

Capping Heads :

Description

Product Description

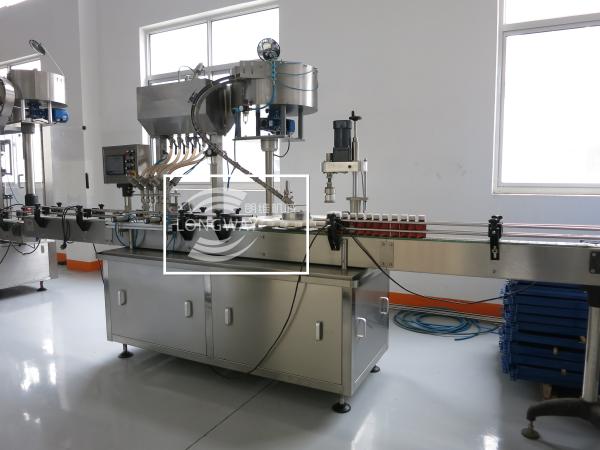

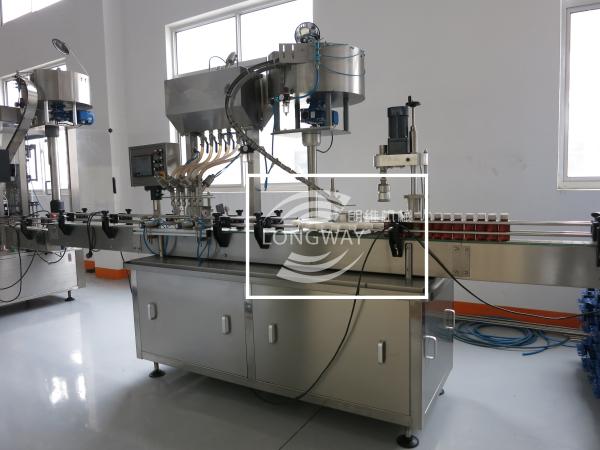

automatic 5-30ml bottle filling capping machine for liquid

Automatic inline filling capping machine is new generation utility product, developed from most advanced technology to suit to market demand, the machine adopt SS304 volumetric injection pump, auto cap orienting and cappingh together. Economic utility, low plant cover, the machine is widely applied to liquid packing in the market of pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet to the requirement of GMP.

Technical parameters
Itemg GLYX	-500
Filling nozzles	4
Capping heads	1
Filling range	20-500ml
Ideal filling range	20-100ml 50-250ml 100-500ml
Optional cap type	the ftproof cap, screw thread cap
Capacity	2000-3000bph
Filling precision	≤ ±1%
Capping precision	≥ 99%
Voltage	220V 50/60Hz
Power	≤ 1.2kw
Air pressure range	0.4-0.6MPa
Weight	1000kg
Dimension	200012001600mm

Main feature

1.Adopt volumetric injection pump to fill high precision, also fill various viscosity liquid. Easy knock-down pump structure, convinent to clean and sterilize.

2.The piston ring of volumetric injection pump use different material of silicome, polyflon or other kinds according to liquid characteristic, use ceramic pump in special industry.

3.PLC control system, frequency conversion adjusting speed, high degree automatization.

4.No bottle, no fill, auto count the quantity

5.Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.

6.Filling mode can be adjusted as liquid-level-control, just add a overflow device.

7.Filling nozzle has drop leak function.

8.Adopt rotary valve type piston pump, no foam.

9.Applicable to various sizes of container, easy adjusting,short time cost.

10.The whole machine is designed according to requirement of GMP.

Technique parameter:

Filling Machine ----Filling Part

The filling part is manly composed of a filling valve and filling transmission parts. T
