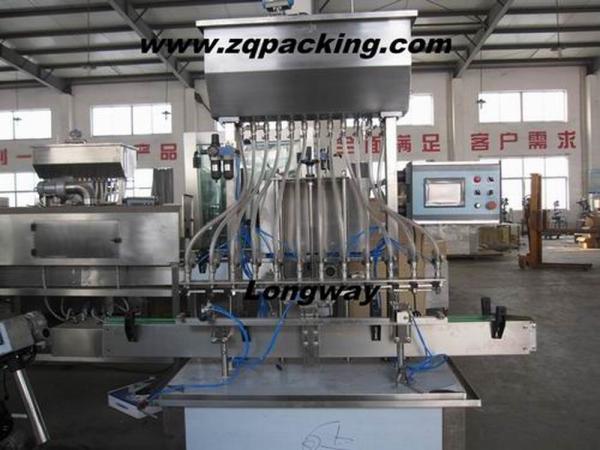

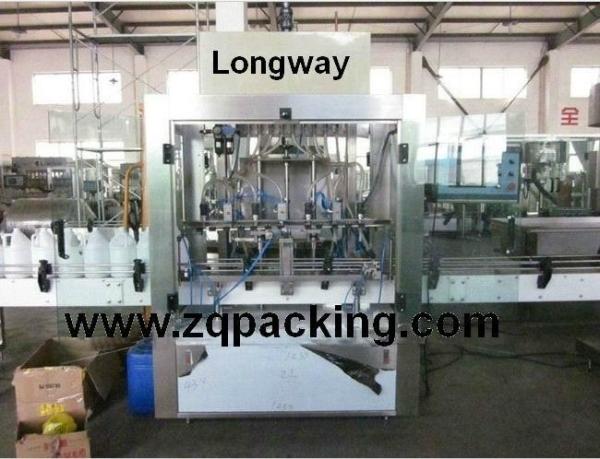

Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Factory Price Liquid chemical bottle filling machine/Chemical Filler /Chemical bottling machine
Specifications
Brand Name :
longway
MOQ :
1
Packaging Details :
wooden case
Model Number :
GLY-6
Certification :
CE
Place of Origin :
Zhangjiagang China
Payment Terms :
T/T
Supply Ability :
10sets
Delivery Time :
25days
Material :
SUS304/SUS316/PVC
Power :
0.75KW
SIZE :
2000*1200*2200
Description

  • Product Description

    Specifications

    chemical filling machine
    1.bottle volume.200ml-5L
    2.Capacity.1500bph-2500bph
    3.liquid with and without viscosity

    chemical filling machine

    1.bottle feeding table.

    2. chemical filling machine with 10 filling heads.

    3.capping heads

    4.Double sides labeling machine.

    5.Packing table.

    6.The whole line is connected by conveying belt.

    INTRODUCTION

    1.Control system - with Mitsubishi PLC control system, filling dose of random fine-tuning.

    2.Operation Interface - 6-inch color touch-style user interface, intuitive and simple, safe and reliable

    3. Feature Enhancements - Cutting with anti-drip device, can dive filling materials with functional properties. (This feature can be optional)

    4. Electrical components - are used internationally renowned brands, ensuring that equipment reliability, high accuracy;

    5. Machine parts are of high quality 304 stainless steel.

    After sale services

    1.One year warranty, technical supports the whole life.

    2.Installation,If buyer need, we can send technical people to buyer’s

    company to install the machine, while buyer should pay the

    cost (such as ticket and accommodation).

    You can also send your workers to my company to study how to use the machine.

    Technological parameters

    1 Speed <1000bottles/hour
    2 Filling range 500-1000ml
    3 Measurement precision ±1%
    4 Working power 220VAC
    5 Air pressure 5-6kg/cm²
    6 Air consumption 0.5m³/minute
    7 Power rate 0.8kw
    8 Other devices power rate 1.5kw(air compressor)
    9 Net weight 450kg
    10 Counter size 1700×870×1900mm

    photo sensor filling mouth PLC

    angle seat Valve filling valve infeed valve

    oil-water separator solenoid valve Level button

    frequency converter solenoid valve pad deafener

    configuration

    NO. ITEM SUPPLIER Brand
    1 Touch screen Taiwan Eview
    2 PLC Japan Mitsubishi
    3 Photo sensor for bottles Japan OPTEX
    4 solenoid valve Taiwan SHAKO
    5 Level button Mexico JOHNSON CONTROLS
    6 angle seat Valve Jointed BURKERT
    7 Other devices Taiwan Airtac
    8 Power button Taiwan Mean Well
    9 Button German Schneider
    10 frequency converter Japan Panasonic
    11 bottle- transport motor China Huangyan
    12 Speed reducer China Jiao xing
    13 Relay Japan Omron
