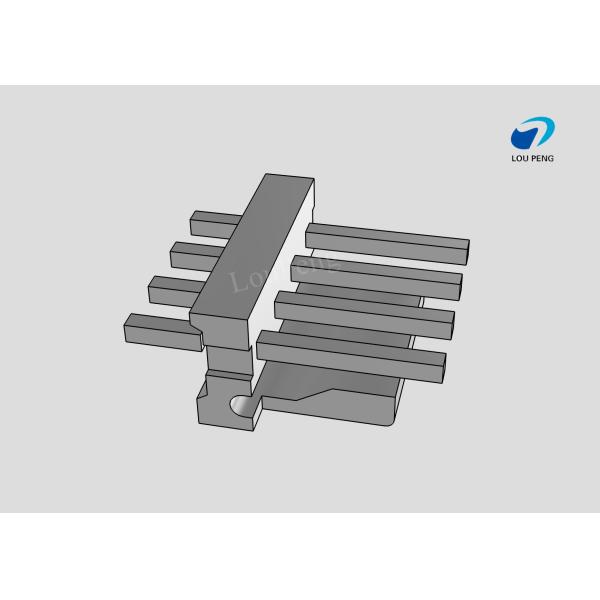

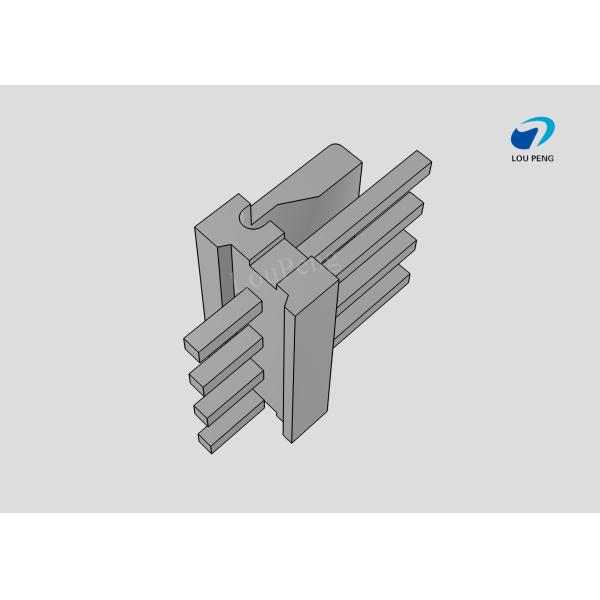

PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
Specifications
Brand Name :
LP
Model Number :
LP-WF006
Certification :
ISO-9001：2000
Place of Origin :
China
MOQ :
1000pcs
Price :
0.0001
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000pcs
Delivery Time :
7~10 days
Packaging Details :
Loose Piece
Color :
White
Description

Product Description

PCB connector component type: PCB mounting connector
Connector system: wire-to-board
Joint type: solid core, with cover
Sealable: no
Connectors and terminals are connected to: printed circuit board

Connector terminal load status: full load
PCB mounting direction: Vertical
Number of Positions: 4
The number of rows: 1

Operating Voltage (VDC) : 100
Insulation resistance (M Ω) : 5000

Base material of terminal: copper alloy
PCB terminal terminal area plating material: tin
Terminal shape and construction: square
Thickness of electroplating material in PCB terminal terminal area: 100
Terminal positioning force in the housing: no
Joint square column size:.5 mm [.02 in]
Electroplating material for terminal contact: tin
Thickness of electroplating material in terminal joint area: 2.54 m [100 in]
Terminal type: pin
Terminal rated current (maximum) (A): 3

Cable end connection method: compression connection
PCB ending method: through hole - welding
Number of ends per cylinder (maximum) : 3

Shell material: high temperature thermoplastic plastic

Operating temperature range: -25 -- 85 °C [-13 -- 185 °F]

UL flame retardant grade: UL 94V-0

PCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / SolidPCB Mount Header, vertical, Wire-to-Board, 4 Position, 3.96mm Pitch, Tin, Natural Housing Color, Shrouded / Solid
