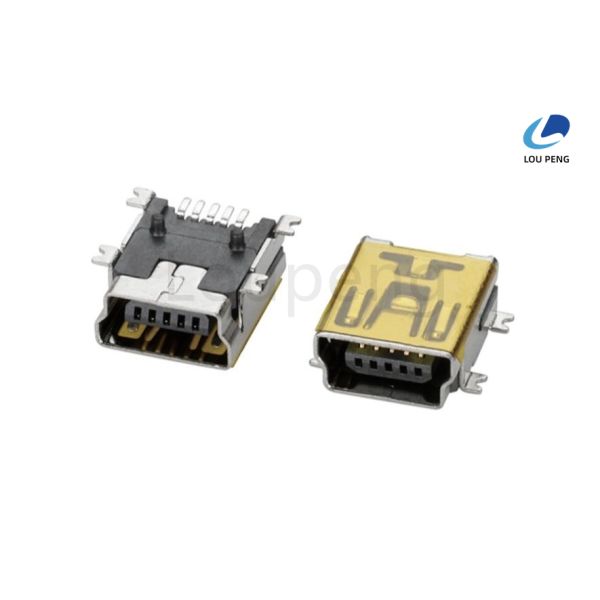

Mini USB 5Pin B SMT Type Waterproof Connector
Mini USB 5Pin B SMT Type Waterproof Connector
Mini USB 5Pin B SMT Type Waterproof Connector
Mini USB 5Pin B SMT Type Waterproof Connector
Specifications
Brand Name :
LP
Model Number :
LP-U003
Certification :
ISO-9001：2008
Place of Origin :
China
MOQ :
1000pcs
Price :
0.01
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000pcs
Delivery Time :
7~10 days
Packaging Details :
reel / Tubes
color :
Black
Description
DESCRIPTION
MINI USB 5Pin B SMT Type Waterproof Connector
ELECTRICAL
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1000V RMS 50Hz or 60Hz 1 min
MECHANICAL
1.Insertion Force
  • 2 CONTACTS....350g
  • 4 CONTACTS….500g
  • 6 CONTACTS….750g
  • 8 CONTACTS….900g
  • 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 750 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire

Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness

phosphor bronze alloy selective gold plating over nickel

3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 1u" , 3u" , 6u" , 15u" , 30u" , 50u" .
5.RoHS peak wave solder RoHS-5 peak wave solder temperature rating 235℃±5℃
6.RoHS peak wave solder RoHS-6 peak wave solder temperature rating 260℃±5℃
OPERATING AND STORAGE TEMPERATURE
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
