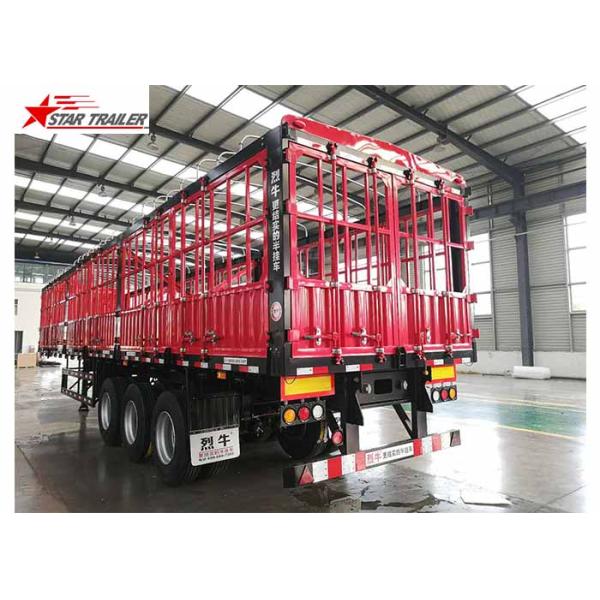

40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
Specifications
Brand Name :
star trailer
Model Number :
SW-002
Certification :
CCC/ISO
Place of Origin :
Shandong China (mainland)
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 units per month
Delivery Time :
25 days after receive payment
Size :
13500*2500*1500 (mm)
Max payload :
40-100 Ton
Material :
Steel
Type :
Side Wall Semi Trailer
Use :
Truck trailer
Description

40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light

Drop side trailer consist of just a load floor and removable side rails and a bulkhead in front to protect the tractor in the event of a load shift. They can haul almost anything that can be stacked on and strapped down.

Overview

Quick Details

Use:Truck Trailer Type:Semi-Trailer

Material:Steel Certification:ISO, CCC

Size:13500*2500*1500 (mm) OEM No.:

Max Payload:75T Place of Origin:Shandong, China (Mainland)

Brand Name:Star trailer Product Name:3 axle Side Wall Semi Trailer

Tare Weight:7.5 Tons Appr Axle Brand:13Tons FUWA /BPW

Landing Gear:JOST Tire:315/80R22.5 18PR Triangle Brand

Wheel base:6695+1310+1310 mm Suspension:10 pieces Leaf spring

King pin:2"(50mm)or3.5"(90mm) Brake System:Dual Line Braking System

Main beam:Height:500mm 14/8/16mm

Supply Ability

Supply Ability:60 Set/Sets per MonthSide Wall semi trailers

Packaging & Delivery

Packaging Details

1.Nude packing.
2.As your requirments.

Port

Qingdao/Tianjin/shanghai

Lead Time :25 Days After Deposit

Product Description

Size 13500*2500*1500 (mm)
Payload 75000KG
Main beam Heavy duty I beam.
Cross beam 160mm
Axles 4 * 13ton capacity (Brand optional)
Suspension Mechanical suspension (Air suspension optional)
Leaf spring 10pcs
Tire 12R22.5 16pcs (Other size optional)
Rim 9.00-22.5 16pcs (Other size optional)
Kin pin 2’’/3.5’’ bolt type
Landing gear JOST two speed
Twist locks 12 pcs
Braking system Double air chamber ,brake valve,40L air tanks ;ABS optional
Electrical LED light , 7 ways ,24V
Painting Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
3 Axle 40 50 60 Ton Cage Side Wall Semi Drop Fence Log Box Van Cargo Trailer

40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light

Detail Comparison

40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light

40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light40-100 Ton Steel Side Wall Semi Trailer Heavy Duty I Beam With LED Light
