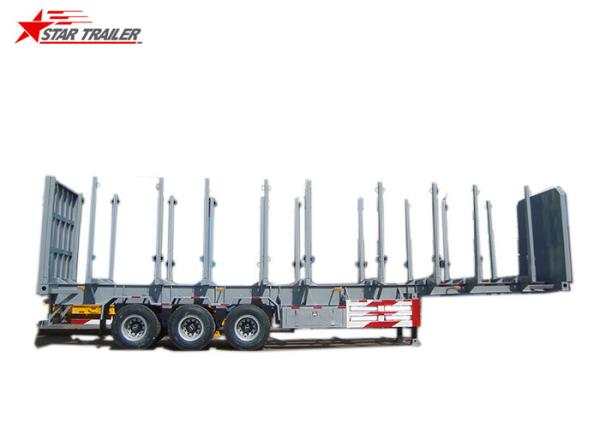

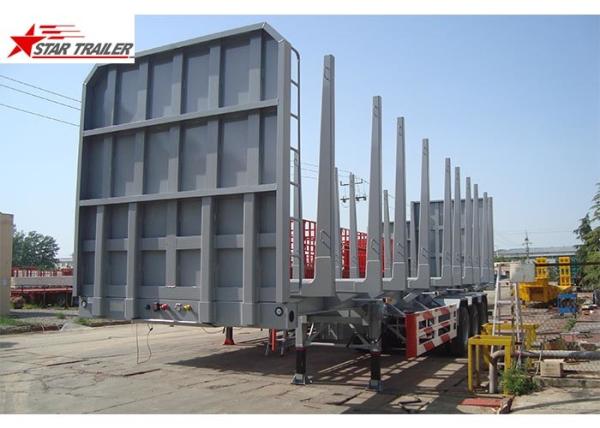

Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer
Specifications
Brand Name :
Star Trailer
Model Number :
RR-001
Certification :
ISO/CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
300 Units per month
Delivery Time :
40 days after down payment received
Use :
Truck Trailer
Type :
RoRo Semi Trailer
Material :
Steel
Brand name :
Star trailer
Axle brand :
FUWA/BPW
Description

Overview

Quick Details

Use:Truck Trailer Type:Semi-Trailer Material:Steel

Certification:ISO CCCT Size:By customer needs OEM No.:Optional

Max Payload:45 - 100 Tons Place of Origin:Shandong, China (Mainland)

Brand Name:Star Trailer

Condition::New Made / Customize by needs

Axle Style:BPW OR FUWA Suspension:Air/Mechanic/Rigid Optional

Color: By Needs

USAGE:Transport 20ft/40ft Containers or loose cargo on Roro Ship

Aftersale::1 year

Packaging & Delivery

Selling Units:Single item

Single volume:43 cm 3

Single gross weight:11000.0 kg

Package Type:BY BULK /RORO SHIP

Lead Time :

Quantity(Set) 1 - 5 >1
Est. Time(day) 40 To be negotiated

Product Description
Terms & Conditions:
Spec: Please see the enclosed specification
Delivery: 40 days after down payment received
Payment:

Down payment 30% by T/T within 5 days after order confirmation

Balance 70% by T/T before EXW.
Warranty: 12 Months

Specification:
Type: 3 Axles Container Skeletal Semi Trailer
Model: ZJV9403XXYDY
Dimension:
Length: 12,500mm
Width: 2,480mm
Height: 1,560mm
Kingpin location: 900mm from the front face of the front bolster
Axle spacer: 7,160mm+1,310mm+1310mm
Landing gear location 2,650mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification.)
Weight:
Payload: 35,000kg
Tare weight: Approx. 6,500kg
G.V.W.R.: Approx. 36,500kg
Frame & Structure:
Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 6mm, Bottom flange thickness 16mm
Kingpin: JOST 2” Kingpin, bolted in type
Stanchion: 7 sets
Welding standard: All welding are to be done by qualified welder per applicable national standard
Painting: Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
Running gear:
Suspension: JMCG mechanical suspension, leaf spring 13mmx90mm, China
Axle: FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
Brake system: Dual line pneumatic brake, with hose and connector
Brake chamber: 4 units T30/30 spring brake chambers, 2 units T30 brake chambers
Air tank: 40L, 2 pcs, China
Emergency relay valve: US SEALCO original import
Tire: Triangle brand, 11R20, 12 pcs. China
Rim: 8.0-20 steel disc wheel, 10 holes ISO, 12 pcs. China
Landing gear: JOST C200 two speed telescopic manual landing gear
Electrical System:
Voltage: 24 Volt
Receptacle: 7 way socket SAE standard, China
Front marker lamp: White
Side marker lamp: White & Red
Rear lamp: Red
Turn signal lamp: Amber
Reflector: Per customer requirement
Wiring: Electric cable protected by PVC conduit on main frame
Accessories:
Mud guard: Steel mud guard
Spare wheel carriers: 2 pcs
Tool box: 1 pc
Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changed, the price shall be modified accordingly.

Manufacturing accessories:

Lowbed semi-trailers are commonly used for transporting construction machineries such as bulldozers, excavators and overheight equipment such as transformer, generator, etc.

Star Trailer design & manufactures best useful lowboy trailers and mobile workshop truck bodies to meet customer requirements with high standards.Star Trailer specializes in the production of special lowboy trailers like extendable, hyraulic and self steered semi low loaders, special design flatbed trailers that meets all driver needs, mobile workshop truck bodies for basic maintenance, tyre repair, pipe-line maintenance etc.

Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer

Our Customers:

Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer

Features:

1. Steel construction: All chassis adopts the high-tensile steel

2. Running system: Axles and suspensions system are complied with international standards.

3. Brake system: Adopt the international brands.

4.Electric system: China famous brands.

5. Shot blasting twice and particular coat painting can guarantee the quality of the chassis surface.

6. The vehicle is mainly use for transfer 1x40FT, 1x40HQ, 1x20FT, 2x20FT, log, lumber, pipe or loose cargo

7. The vehicle equipped winches and side hooks for tie the cargo fasten on the board

Meet the Dream Team

Our team consists of 5 renowned senior experts, 21 engineers, and more than 230 certified welders.
Each is a seasoned professional with many years of experience in the trailer industry. We are dedicated to develop your next trailers.

Wood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi TrailerWood Pulling Timber Roro Mafi Trailer 3 Axles Container Skeletal Semi Trailer

K.K He

CHIEF ENGINEER

Australian engineer with 42 years of experiences in the semi-trailer industry. He is also the consultant of CIMC group, technical consultant of Fuwa axle, and America Sealco valve.

Zheng Xiaowei

CHIEF WELDING ENGINEER

Previously commander of technical department of the people’s liberation army. He is also the National 1st class certified welding engineer.
