Specifications
Brand Name :
Star Trailer
Model Number :
SW-013
Certification :
ISO/CCC
Place of Origin :
Shandong China (Mainland)
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T
Supply Ability :
300 units per month
Delivery Time :
40 days after receiving your payment
Max Payload :
60T
Size :
12550mm*2590mm*2702
Material :
Steel
Brand name :
Star Trailer
Axle brand :
FUWA OR BPW
Description
3 Axles Drop Side Front Load Trailer High Duty Steel Structure 60T Payload
Overview
Quick Details

Use:Truck Trailer Type:Semi-Trailer Material:Steel

Certification:CCC/ISO Size:12400*2500*3650 OEM No.:Optional

Max Payload:50T Brand Name:StarTrailer Model Number:Shuyue

Axle:FUWA 13 tons Brake:Wabco Floor thickness:3mm
Supply Ability
Supply Ability: 300 Unit/Units per Month 2 or 3 units packaged together to reduce the shipment cost.
Packaging & Delivery

Packaging Details

Nude

Port: China Port

Lead Time : Around 40 days after payment

Star Trailer Brand 3 Axles Drop Side Wall Front Load Trailer Semi Trailer

Dimension:
Length:Approx 12,493mm Width:Approx 2,566m Height:Approx2,906@ unload
King Pin Location: Approx 1,092mm from the front face of the front bolster
Landing gear position:Approx 2,520 from the king pin.
Axle spacer:Approx 7,000mm+1,310mm+1,310mm
King Pin Height:Approx 1,263mm with the chassis level
Weight:.
Tare Weight(Tolerance 0~-4%): Approx 8,500 kg
Max. Payload:Approx 60,000 kg
Gross Vehicle Weight:Approx68,500 kg
Steel Structure:
Material:High strength low alloy steel Q345 (350MPa) is used for welded I-beam and Q235 (235MPa) is used for the fabricated parts.
Main Beams:500mm deep x 146mm wide x 6mm web welded I-section main beam.
The top frame thickness is 14mm, The bottom frame thickness is 16mm.
Platform: checked steel floor, the thickness is 3mm.
Side wall: the height of front is 600mm.
OEM Parts Configuration:
King Pin:2” bolting king pin. Brand: JOST.
Twist Locks: twelve (12) units retractable ISO type twist locks
Landing Gear:CIMC 30ton Heigh Strength
Suspension: heavy duty tri-axle suspension with equalizers 8-leaf spring.
Axles: 13T capacity axle × 3
Rims: 9*22.5, 10 Holes ISO,12 pieces+1piece
Tires:12R22.5, 12 pieces+1piece
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS system.
Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.
Electrical System: 24 volt lighting systemwith modular wiring harness,7 way ISO receptacle infront of the front bolster

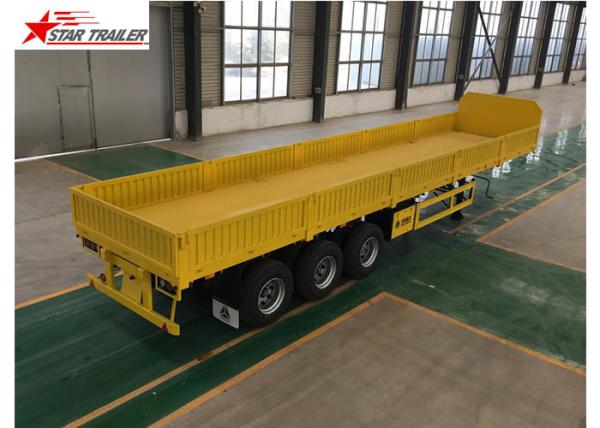

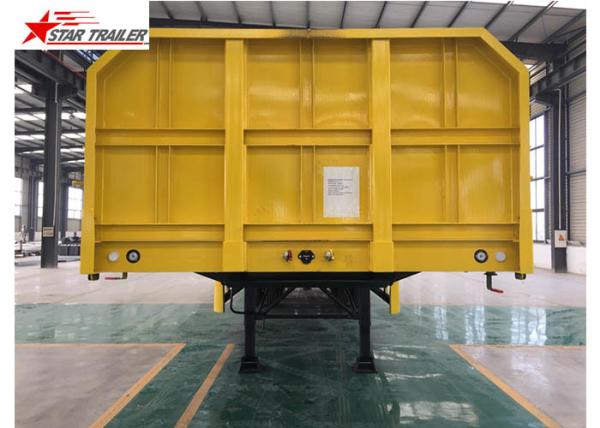

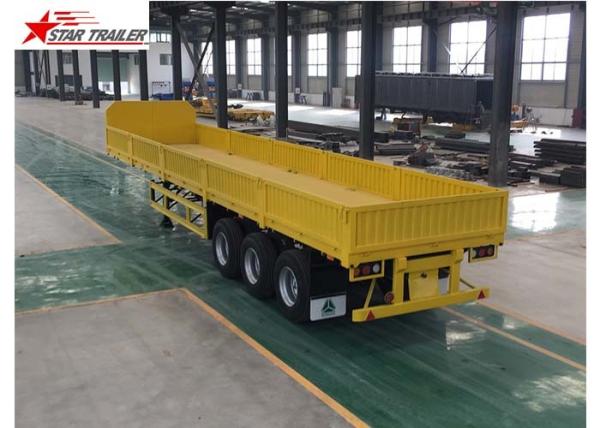

3 Axles Drop Side Front Load Trailer High Duty Steel Structure 60T Payload3 Axles Drop Side Front Load Trailer High Duty Steel Structure 60T Payload3 Axles Drop Side Front Load Trailer High Duty Steel Structure 60T Payload

3 Axles Drop Side Front Load Trailer High Duty Steel Structure 60T Payload

Company Information

As a leading Chinese vehicle exporter, we have many years professional experience in this field.

Besides the high quality of our vehicles, our international sales team will also provide you excellent logistics service and after-sales service.

We will always do our best to solve all the problems and put our customer's interests in the first place.

Need more information? Just contact us! Features:

1,Steel construction:All chassis adopts the high-tensile steel

2,Running system:Axles and suspensions system are complied with International Standards;

3,Brake system:Adopt the International brands;

4,Electric system:China famous brands;

5,Painting:zinc-rich primer and modified urethane topcoat as customers' choices

6,Harness: We adopt the rubber Wiring harness. Its advantages include waterproof, dustproof, anti-aging, safety more,etc.Specially there are some high intension clamps to fix the harness.

7,The side beam is high tensile steel which strengthen more the Cargo platform.

8,Double air chambers are adopted on all axles in order to brake the trailers safety and quickly.

9,Lights include the rubber grommets in order to decrease the shaking and extend its using period. Specifications:

FAQ

A. Which payment terms can we accept?

  • Normally we can work on T/T term or L/C term.
  • On T/T term, 30% down payment is required in advance, 70% balance shall be settled before delivery, or against the copy of original B/L for regular client.
  • On L/C term, normally need 30% down payment by T/T, 70% by L/C at sight. a 100% irrevocable L/C without “soft clauses” can be accepted sometimes. Please seek the advice from the individual sales manager whom you work with.

B. How long will our price be valid?

  • Price with long valid time -- We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations: The rate of USD:RMB varies significantly according to the international currency exchange rates. Manufacturers/factories adjusted the trailer price, because of the increasing labor cost and raw material cost.

C. What logistics ways we can work for shipment?

  • We can ship all trailer by various transportation tools.
  • For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
  • For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway.
  • For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
