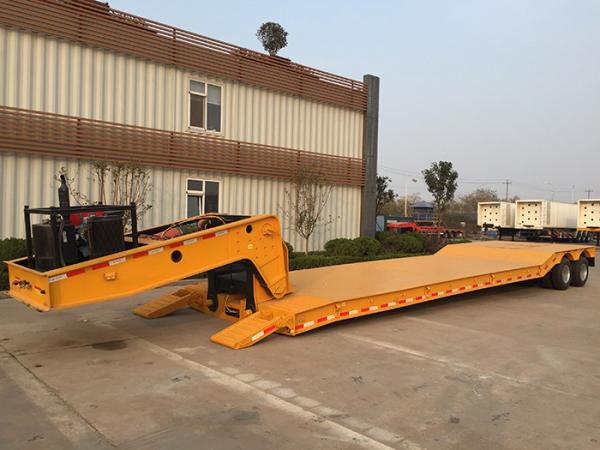

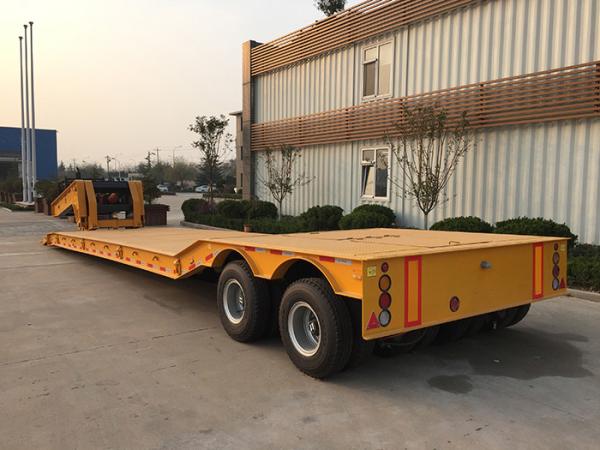

Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Specifications
Brand Name :
Stsr trailer
Certification :
CCC, ISO
Place of Origin :
Shandong China
MOQ :
1unit
Payment Terms :
L/C, T/T
Delivery Time :
40 days after down payment received
Packaging Details :
nude
Price :
Negotiable
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
17850*3500*1350mm
Max Payload :
70T
Description
Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard
Over view
Quick Details

Use:Truck Trailer Type:Semi-Trailer Material:Steel

Certification:CCC, ISO Size:17850*3500*1350mm OEM No.:

Brand Name:Star Trailer Max Payload:70T Place of Origin:Shandong, China (Mainland)

Overall dimension:16000*3000*1500mm Weight:20T

Axle:FUWA 3 Axles Brake system:Wabco Dual line pneumatic brake line

Electrical system:12/24V, 7 pin socket (US, EU or Australian standard)

Accessories:Tool box, D-rings, Stake pocket, container twist locks, etc

Supply Ability

Supply Ability:300 Unit/Units per Month

Packaging & Delivery

Packaging Details

Star Trailer front loading 70T lowbed semi trailer for crane transporting
The whole trailer will be waxed before shipment;Shipped in Bulk Cargo, FR Container or by Roro.

Port:Qingdao, Tianjin, Port of China

Specification:

Terms & Conditions:
Spec: Please see the enclosed specification
Delivery: 40 days after down payment received
Payment:

Down payment 30% by T/T within 5 days after order confirmation

Balance 70% by T/T before EXW.
Warranty: 12 Months

Specification:
Type: 3 Axles Container Flatbed Semi Trailer
Model: ZJV9400XXYDY
Dimension:
Length: 12,500mm
Width: 2,500mm
Height: 1,500mm
Kingpin location: 900mm from the front face of the front bolster
Axle spacer: 6,460mm+1,310mm+1,310mm
Landing gear location 2,650mm behind the kingpin location

(The above dimension will be adjusted according to the tractor specification.)
Weight:
Payload: 40,000kg
Tare weight: Approx. 7,500kg
G.V.W.R.: Approx. 47,500kg
Frame & Structure:
Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm
Side beam: 14# channel steel
Platform: 2.5mm thick chequer plate with supporting channel
Cross beam: 80*40mm square tube
Kingpin: JOST 2”SAE Kingpin, bolted in type
Twist lock: 12 sets twist locks
Welding standard: All welding are to be done by qualified welder per applicable national standard
Painting: Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
Running gear:
Suspension: JMCG mechanical suspension, leaf spring 13mmx90mm, China
Axle: FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China
Brake system: Dual line pneumatic brake, SAE hose and connector
Brake chamber: 4 units T30/30 spring brake chambers, 2 units T30 brake chambers
Air tank: 40L, 2 pcs, China
Emergency relay valve: Wabco relay valve
Tire: Triangle brand, 12R22.5, 12 pcs. China
Rim: 9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China
Landing gear: JOST C200 two speed telescopic manual landing gear
Electrical System:
Voltage: 24 Volt
Receptacle: 7 way socket SAE standard, China
Front marker lamp: White
Side marker lamp: White & Red
Rear lamp: Red
Turn signal lamp: Amber
Reflector: Per customer requirement
Wiring: Electric cable protected by PVC conduit on main frame
Accessories:
Mud guard: Steel mud guard
Spare wheel carriers: 2 pcs
Tool box: 1 pc

Accessories:

Waterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud GuardWaterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud GuardWaterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud GuardWaterproof Moisture - Proof Lowboy Heavy Equipment Trailers With Steel Mud Guard

Our accessories are used grade 8.8 chrome-plated bolts are non-corrosive and more resistant to loosening；High-strength hose, 360-degree folding does not block gas；Waterproof and moisture-proof sealed LED lamps；American standard copper joint, metal seal, no rust, no air leakage；Three-layer wear-resistant pipe.
