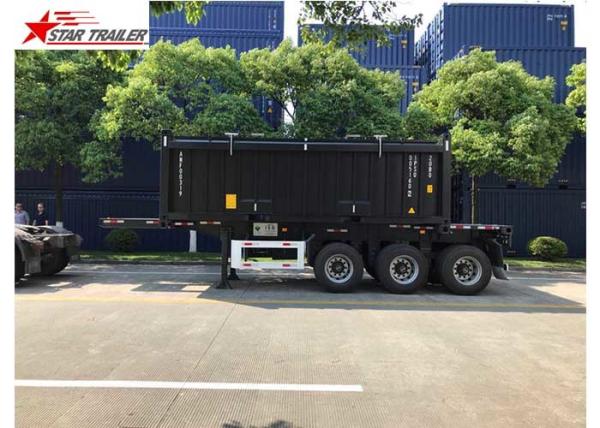

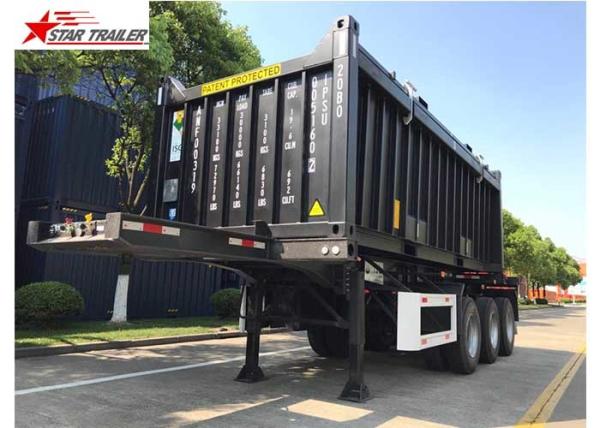

Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity
Specifications
Brand Name :
Star trailer
Model Number :
SW-007
Certification :
CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
500 Units per month
Delivery Time :
40 days after down payment received
Material :
Manganese Steel
Use :
Truck Trailer
Max Payload :
30T
Axle :
FUWA
Color :
Customer’ Request
Type :
Semi Trailer
Description

Overview

Quick Details

Use:Truck Trailer Type: Semi-Trailer Material:carbon steel

Certification:CCC Size:12500*2500*1550mm OEM No.:Optional

Max Payload:30T Place of Origin:Shandong, China (Mainland)

Brand Name:Srartrailer Product name:skeleton semi trailer

Suspension:Mechanical Axle:FUWA Landing Gear:JOSTKing pin:Jost 2"

Color:Customer's Request Function:Transport 20ft Container

Tire:12R22.5 light:LED Material:carbin steel

Supply Ability
Supply Ability:

300 Set/Sets per Month

Packaging & Delivery
Packaging Details By container .

Port:Qingdao

20ft Container Skeletal Trailer

Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy CapacityTransport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity

Product Description

Specification:

Specification:

Type: 2 Axle Container Skeletal Semi Trailer

Dimension:

Length: 12,460mm

Width: 2,480mm

Height: 1,560mm

Kingpin Location: 900mm from the front face of the front bloster

Axle spacer 7,900mm+1,300mm

Landing gear location 2,650mm behind the kingpin location

Weight:

Payload: 30,000kg

Tare weight: Approx. 5,500kg

G.V.W.R: Approx. 35,500kg

Frame & St

Main beam: Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 6mm, Bottom flange thickness 16mm

Cross beam: 80*40mm square tube

Kingpin: JOST 2 " SAE Kingpin, bolted in type

Twist lock: 12 sets twist locks

Welding standard: All welding are to be done by qualified welder per applicable national standard

Painting: Shot blast at Standard SA 2.5 prior to application of primer, polyurethane

top coat. Total DFT not less than 100umnning gear:

Suspension: JIMCG mechanical suspension, leaf spring 13mmX90mm, China

Axle: FUWA 150X150 square beam axle , 2pcs*13 ton capacity

Brake system: Dual line pneumatic brake ,SAE hose and connector

Brake chamber: 2 units T30/30 spring brake chambers, 2 units T30 brake chambers

Air tank: 40L, 1pc,China

Emergency relay valve: Wabco relay valve

Tire: Triangle brand, 12R22.5. 8 pcs

Rim: 9.00*22.5 steel disc wheel, 10 holes ISO, 8 pcs

Landing gear: JOST C200 two speed telescopic manual landing gear

ectrical System:

Voltage: 24 Volt

Receptacle: 7 way socket SAE standard, China

Front marker lamp: White

Side marker lamp: White & Red

Rear lamp: Red

Turn signal lamp: Amber

Reflector: Per customer requirement

Wiring: Electric cable protected by PVC conduit on main frame

Accessories

Mud guard: Steel mud guard

Spare wheel carriers: 2 pcs

Tool box: 1 pc

Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy CapacityTransport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity

Accessories:

Transport Container Skeletal Container Trailer 3 Axles Lightweight Heavy CapacityTransport Container Skeletal Container Trailer 3 Axles Lightweight Heavy CapacityTransport Container Skeletal Container Trailer 3 Axles Lightweight Heavy CapacityTransport Container Skeletal Container Trailer 3 Axles Lightweight Heavy Capacity

Our Services

What we can do for customers:

1. the satisfied product with high level standards;

2. the full aspect service from order to shipping to after sales service;

3. give customer most suitable advice when customer has special needs for your transportation or construction;

4. provide the related spare parts of trailer or tractors.

we are waiting for you to get this ideal products and best quotation!

Shandong 40ft container skeleton skeletal trailer chassis for sale -- FAQ

1. How do you transport the semi trailers?

We transport the semi trailers by bulk or container. Our factory possesses long- term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by CIMC group,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
