Use:Truck Trailer Type:Semi-Trailer, Truck Trailer

Material:Steel Certification: SGS ISO CCC

Size:20 40 45 53 Feet OEM No.:3708322800116

Max Payload:45 - 100 Tons Place of Origin:Shandong, China (Mainland)

Brand Name:Startrailer USAGE:CONTAINERS TRANSPORT Logo:By customer Needs Condition:New Made / Customize by needs

Axle :FUWA/BPW13-20Tons Suspension:Bogie/Air/Mechanic/Rigid Optional

Color:Customers Optional Tire:12R22.5

King pin:2"(50mm)or3.5"(90mm) Landing Gear:Standard 28Ton

Selling Units:Signal

Single package size:1200X250X158 cm

Single gross weight:6500.0 kg

Package Type:

BY BULK/CONTAINER/RORO SHIP

Lead Time :

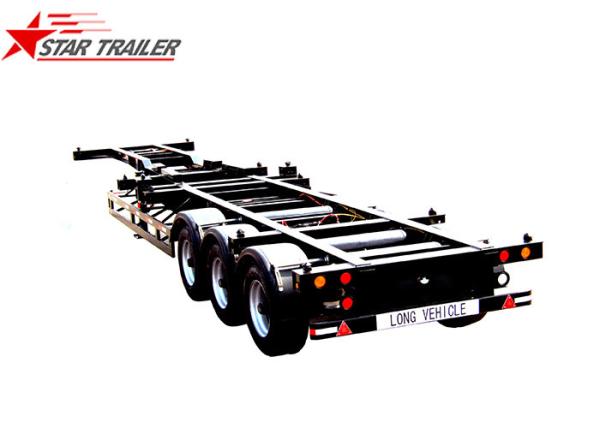

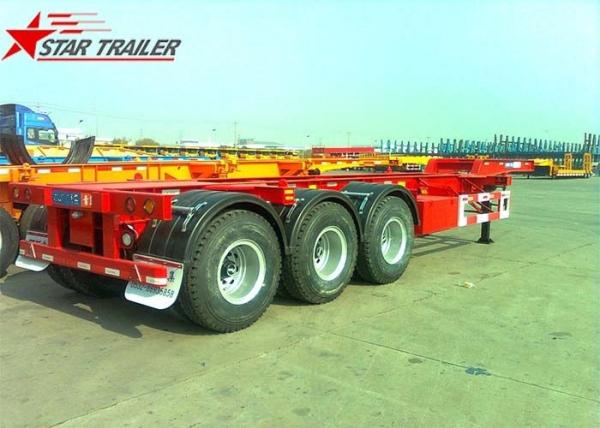

40ft Skeletal 3 Axles Container Semi Trailer For Transport Empty Wharf Containers

Dimension:

Length: Approx 12,538 mm

Width: Approx 2,260 mm

Height: Approx 1,290mm

King Pin Location: Approx 1000 mm from the front face of the front bolster

Axle spacer: Approx 7,200mm + 1,310mm + 1,310mm

Landing Gear location: Approx 2,489mm behind the king pin location

(The above dimension will be adjusted according to the tractor specification)

Weight:

Tare Weight (Tolerance: 0~4%): Approx 7,000 kg

Max. Payload: 30,000kg GVWR: Approx 37.000kg

Steel Structure:

Main Beams: high tensile steel to fabricated “H” beam, Steel: Q345.

Bolster: Front and rear bolster are of hot roller “C” type channel steel. Steel: Q345.

Cross Member: There are hot roller “C” type square channel steel cross member

Material: High strength low alloy steel Q345 with 350 Map yield strength is used for welded I-beam and Q235 in other fabricated parts.

OEM Parts Configuration:

King Pin: SAE standard 2” (exchangeable) bolting king pin, Supplier: JOST Made in China.

Twist Locks: Four (4) twist retractable locks.

Landing Gear: 2 speed road side winding with sand shoe. Static Load: 50 ton. Lift Load: 24 ton. Type: JOST D200T Made in China.

Suspension: Mechanical suspension with 7 pieces leaf springs. Famous Brand: FUWA, Baoming etc Made in China.

Axles: Axle with 13 tons capacity. Famous Brand: CIMC, York, BPW, SAF etc Made in China. Option is made by the factory.

Rims: 11.75×22.5, 10 Holes ISO, 6 pieces.

Tires: 385/65R22.5, 6 pieces; China Famous Brand: Linglong, Triangle, Jinguan etc. Option is made by the factory.

Brake System: Dual or single pneumatic brake system; WABCO relay emergency valve, none ABS brake system.

Brake Chamber: 30/30 type on the rear axle, 30 types on the front axle

Electrical System: 24 volt electrical system with 7-pin connector and modular wiring harness:

Others:

Spare Tire Carrier: Equipped two, without tire.

Side Guard: Side Protection.

Reflector: 2-Nos triangle shaped Red Reflectors at Rear.10 pieces Reflectors strip (Conspicuity tape) each side.

Tool Box: Equipped one

Mudguards: PVC, 2 pieces.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted

Painting: The Color is made by customer’s requirement.

Drawing

This drawing is only for reference
