Specifications

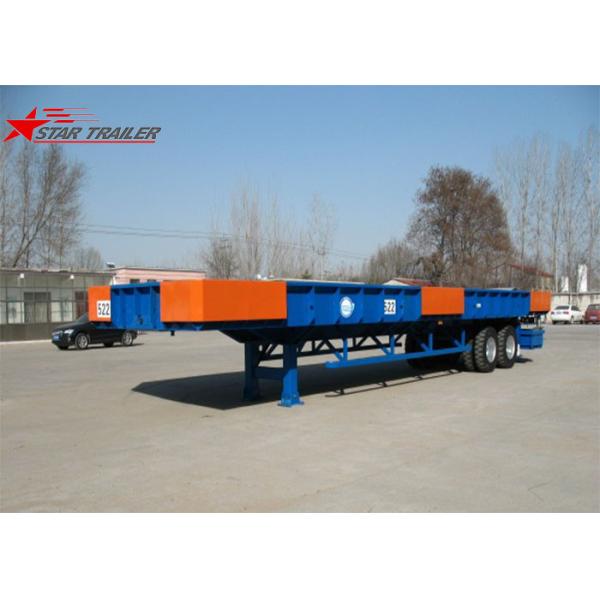

Type WX245 Bath Tub Trailer

The bath tub trailer is designed and manufactured for holding and transporting of containers with content leaking out and for use as a treatment platform for treatment of hazardous material inside the container ,without polluting the terminal yard surfacce.

Dimension

Overall Length:14,040mm

Overall Height:1,930mm

Overall Width: 3,200mm

Inner Length:13,740mm

Inner Width:2,900mm

Platform Height:About 1,525mm@unload

Front overhang:746mm

Axle spacer(from Kin Ping):9,580mm+1,360mm

Tare Weight(Tolerance±5%):Approx.13,200kg

Payload:32,000kg

Traveling speed:30Km/h

Material

High tensile steel with 550MPa yield strength is used for the fabricated H-beam and main structural parts.

Frame

☆ Main Beams: Fabricated H-beam 520mmx150mm. with 16mm thickness flange and

8mm web plate.

☆ Cross Members:8mm thick x 60mm wide x 120mm height formed channel

as support of the liquid tank. The container corner casting position 200 x 75

hot rolled channel bolster is used at two ends...

Landing leg

☆ Fixed landing ld with sand shoe. Leg size-200x200x10

King pin & Plate

☆ 10mm thick coupler plate with 8mm thick fabricated "C" channel reinforcement channel

☆ King pin: "2" weld on King Pin (JOST model KW1010)

Suspension

☆ Heavy duty tandem suspension with 12 leaf spring. (100mm width by 13mm

thickness/ leaf). Rated loading capacity 2 x 16Tons.

☆ Marker: MAG MC4/ST150-12

Axles

☆ 150x150 square axle of 16 tons capacity (at 10Km/h).ISO 10 wheel stud (M22x1.5).

☆ No brake components on the axle .

Wheels and tires

☆ 8.0x2.0 Steel disc wheels, 10 bolts, 335mm PCD, 280mm center hole

☆ 11.00-20Solid rubber tires

Brake system

☆ N/A

Liquid receiving tank

☆ One 1.0 Cu.M. liquid receiving tank with cover at the rear of the trailer, with fork lift pocket underneath,

2 coverable inlet hole on top and a 2" discharge valve at one end.

Electricall Syatem

☆ 12 volt lighting system with 7way receptacle and tailor made wiring harness

☆ Side clearance/marker light: One each side, amber

Tail/Stop light: One each side, Red

Rear turn signal light

Rear turn signal light:One each side, Red

Reversing light: One each side, white

Licence light: One, White

Coating

☆ Abrasive blast of alll metal surfaces to SA-2.5 or SSPC-SP-10 standard.

☆ Surface will be coated with Zinc-Rich epoxy primer and poly-urethane top coat, TDFT not less than 125μm. With five(5) year warranty.

☆ All overlapping surfaces and interior of the box section, including the bolster, and

cross pipes of suspension, shall be sprayed with zinc rich primer before fabricating.

The interior of liquid tank is not coated to minimize chemical effect with the content of

the container.

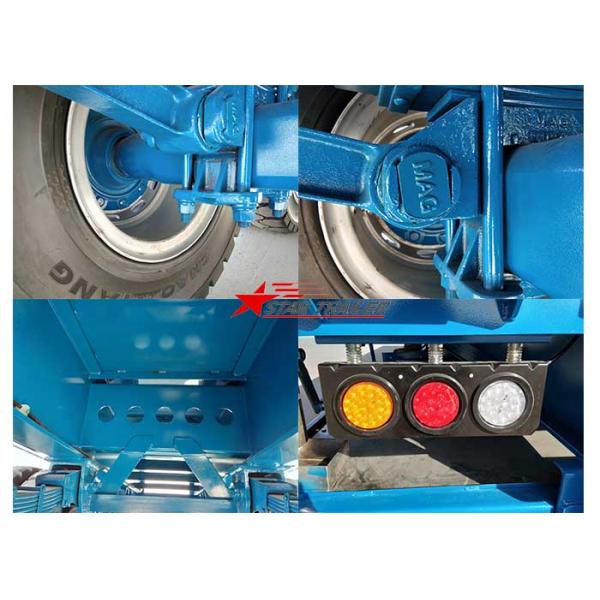

Product detail picture
