Specifications
Brand Name :
Startrailer
Model Number :
FT2-001
Certification :
CCC、ISO
Place of Origin :
Shandong China
MOQ :
2 units
Price :
USD $13000~$15000
Payment Terms :
L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
30 days after receives deposite
Type :
Semi trailer
Material :
Steel
MOQ :
2 units
Land gear :
JOST E100
King pin :
2"(50mm)or3.5"(90mm) JOST
Axle :
13 T FUWA
Description

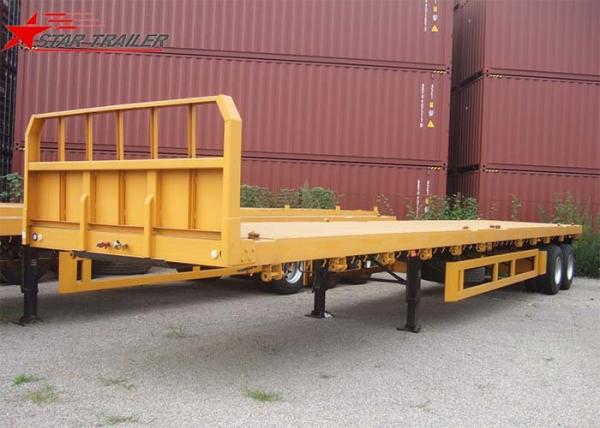

2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow
Overview
Quick Details

Use:Truck Trailer Type:Semi-Trailer, flatbed chassis

Material:Steel Certification:CCC ISO WMI

Size:12500*2500*1550mm OEM No.:SCD9400P

Max Payload:40T;20T Place of Origin:Shandong, China (Mainland)

Brand Name:Startrailer Flatbed Container Trailer

Product name:Three Axle 40FT 12 Tires White Flat Bed Semi-Trailer With Twist Locks

Capacity:40T;20T Axle:13 Ton Fuwa Brand

Suspension:Mechanical Suspension Function:Transport 20ft 40ft Container

Tire:12R22.5 King pin:2"(50mm)or3.5"(90mm) JOST

Landing Gear:JOST E100 Container Lock:12pcs

Supply Ability

Supply Ability:

200 Unit/Units per Month

Packaging & Delivery

Packaging Details

Nude
Chinese Factory Tri-axle 40FT Container Trailer 40ft flatbed Trailers

Port

Any port of China

T2-Axis 40-Foot Baffle 8 Tires 13T FUWA Axles Yellow Flat Bed Semi-Trailer

Specification:

20ft Flatbed Trailer with two-axle

The flat top trailer is designed for use in stevedoring and transporting of 1x20ft ISO cargo containers or loose cargo.

Dimension:

Length: 7,200 mm±10mm (approximate)

Width: 2,490 mm ±10mm (including mud guard)

Height: 1,476mm @ unload (without twist locks)

King Pin Location: 450 mm from the front face of the front bolster (No confirm).

Axle spacer: 4610mm + 1310mm

Fifth Wheel Height: 1,230mm with the chassis level (No confirm).

Landing Gear location: 2,200mm behind the king pin location (No confirm).

(The above dimension will be adjusted according to the tractor specification.)

Weight:

Tare Weight: approximate 6,000 kg Max. Payload: 30,000 kg GVWR: 36,000 kg

OEM Parts Configuration:

King Pin: 2” welding kingpin, supplier & type: JOST KW1010.

Twist Locks: Twelve (4) retractable ISO type twist locks.

Landing Gear: 2 speed road side winding with sand shoe Type: JOST/Eagle-Z20TT

Suspension: Mechanical suspension with 7 pieces leaf springs

Axles: Square axle with 13 tons capacity which is FUWA Brand, Made in China.

Rims: 8.25-22.5, 10 Holes ISO, 8+1 pieces.

Tires: 12R22.5, Radial Tires, 8+1 pieces; China Famous Brand.

Brake System: Dual air brake system, 2*40 Liters Air Pressure Tanks; WABCO relay emergency valve, none ABS brake system.

Brake Chamber: 30/30 type on rear two axles, 30 type on front axle

Electrical System: Complete 24V installation with modular wiring harness.

Accessories:

Spare Tire Carrier: Equipped one set per chassis with one set spare tire.

Side Guard: Steel Side Protection.

Tool Box: Equipped one set.

Marking: Qingdao CIMC Special Vehicle Co., Ltd. standard, Technical data plate including chassis no, dead weight, year of manufacturing etc. to be fitted

Painting: Color by customer’s requirement.

Note:

1) All the details not mentioned above should comply with Chinese regulations.

2) These specifications are given as information. CIMC reserves its right to change them without previous notice.

3)above quotation based on RMB 6.60 to USD 1.00. If any changes before the units been delivered or dispatched, we reserve the right to claim for the exchange rate losses in between. (This drawing is only for reference)

Our customers

With the harmonized team work of the management and staff member, we have successfully developed international customer base such as Singapore, South Korea, Australia, New Zealand, Russia, . . . . and established long-term cooperative relations.

2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow

Factory environment

2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow2- Axis 40 Foot Flat Deck Semi Trailer Baffle 8 Tires 13T FUWA Axles In Yellow

Steel plate unwinding equipment Primer electrophoresis process
