Specifications
Brand Name :
Star Trailer
Model Number :
TS-011
Certification :
CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 sets per month
Delivery Time :
40 days after down payment received
Type :
Terminal Trailer
Axle brand :
FUWA
Material :
Q345B
Size :
Buy's request
Use :
Transport containercontainers within container terminal.
Description
2/3 Axles Port Yard Terminal Trailer Heavy Duty Tandem Leaf Spring Or Air Suspension
Overview
Quick Details
Use:Terminal Trailer Type:Semi-Trailer Material:Q345B
Certification:CCC Size: Buy's request Brand Name:Star Trailer
Max Payload:30-200T Place of Origin:Shandong, China (Mainland)
Function:Transport 20/40ft container and Heavy Duty Equipment
Axle:13T 14T 16T 18T BPW FUWA Suspension:Mechanical Suspension/Air suspension
Landing Gear:JOST C200 two speed teles copic manual landing gear Tire:11r20 12r22.5 315 385
King pin:2"(50mm)or3.5"(90mm) JOST Color:Customers Optional
Production time:30 workdays
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery

Packaging Details

In nude,paiting wax before deliver to port
1. by container(40ftHQ/40ft FR)
2. by bulk ship/RORO ship

Port
Any port in china

Product Introduction:

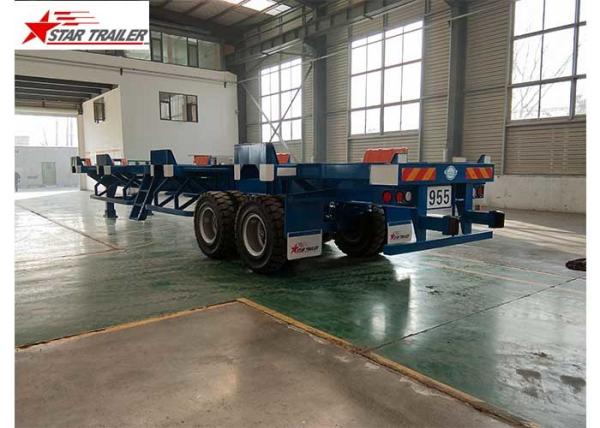

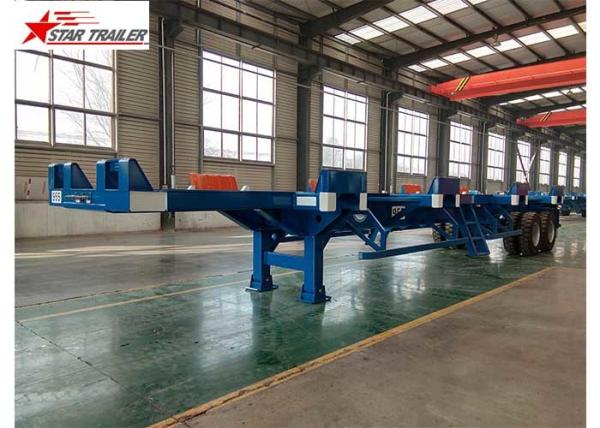

The terminal trailer is designed and manufactured for transporting lx20’,2x20’,l x40’and lx45’ISO containers within container terminal.
More charactors of strong semi trailer you will concern :

Product Description
2/3 Axles Port Yard Terminal Trailer Heavy Duty Tandem Leaf Spring Or Air Suspension2/3 Axles Port Yard Terminal Trailer Heavy Duty Tandem Leaf Spring Or Air Suspension2/3 Axles Port Yard Terminal Trailer Heavy Duty Tandem Leaf Spring Or Air Suspension
Material:
High tensile low alloy steel with 550 MPa yield strength is used for fabricating H-beam and 350 MPa steel material for other fabricated parts.
CIS: CHINA Industrial Standard
Frame:
Main Beams: 590 mm x 150 mm . Fabricated H-beam with 16mm x 150 mm. top and bottom flanges, 8mm web.
Cross Members: 8mm thick x 751mn wide x 400mm height fonned channel.
Side guide:
Four side guide block of 900 mm. (L) x 270 mm.(H) of box structure box structure slope inside surfa ce guiding container when loading. There are 50 mm. x 6 mm. rubbing plate on the side guides. Each pair of side guide are supporte d by bolster of a 200mm. x 200 mm. x 10mm. square tube and a 200 mm. x 73mm. channel.
Rear guide:

On the rear bolster there are two I40mm.(W) x 110 mm. (H) box type container guide/stopper on top of the
rear bolster. This guide/stopper will not affect opening of container door on the trailer.
Stopper:6 gravity stoppers of 100 mm above the top surface of main beam
Rear bumper: 100mm x 100mm square tube bumper with Heavy-duty vertical steel channel supports.
Ladder: One ladder at each side at center of the trailer position between two 20’containers .
Safety side guard rail: 100mm x 50mm rectangular tube, fixed type.
Landing leg:
Fixed landing leg with sand shoe.
Landing leg size: :200x200x10 square tube.
King pin & Plate:
10mm thick plate with 8mm thick fabricated“C” channel type king pin support, 2”(50.8mm)diameter bolt on king pin.
Type: KZ1010 ( JOST ,CHINA)
Suspension:
Heavy duty tandem suspension with 12 leaf spring. (100 width by 13mm thickness / leaf). Rated capacity is 2 x 16Tons.
Maker: MAG MC4/S 150-12
Axles:
l50x150 square axle. 10 stud ISO (M22xl.5) Manual slack adjuster.
Type:FUWA, MAX CAP:16000KG/axle@105km/h
Wheels:
8.0x 20 Steel disc wheels, ISO 10 holes, PCD 335nun , 280mm center hole.
Type: sunrise CHINA
Tires:
11.00 - 20 Solid rubber tires
Type: Chaoyang/Double coin/ Trangle tire...
Brake system:
Dual line pneumatic service brake system.
Valve: WABCO RE6 · without ABS
Brake chamber:T30 service brake chamber on both axle Air coupling: quick coupling type.
Electrical System:
12 volt lighting system with 7 way receptacle.
Brake/tail lamp ＆ turn signal lamp & reverse lamp.

Coating:
A brasive blast of all metal surfaces to a SA-2.5 or SSPC-SP-10.
Surface will be coated wit Zinc-Rich epoxy primer and poly- urethane top coat, TDFT 125µm with five (5) year warranty.
Maker: Kansai
Conspicuity Marking:
Rear end and side rail of trailer have red/white conspicuitytape where applicable.
Maker: 3M
