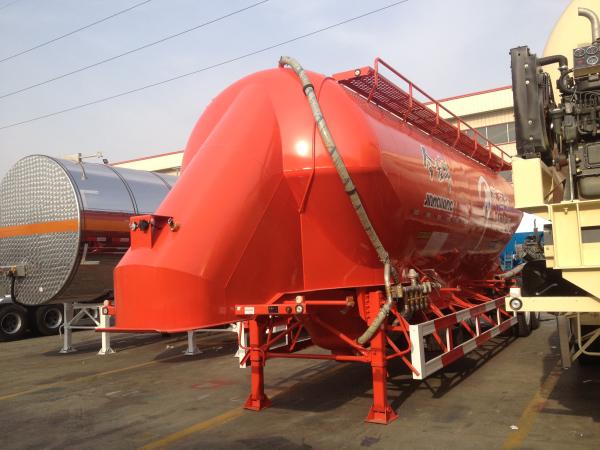

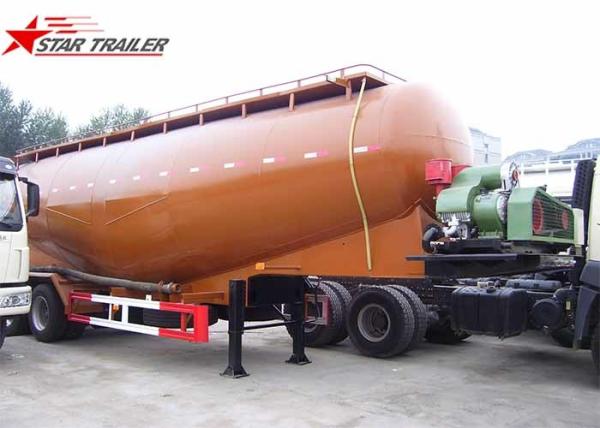

Cement Trailer

Cement Trailer Technical Properties:

Cement Trailer Capacity:
For 2 Axle 27500 Kg(Maximum laden weight)
For 3 Axle 35500 Kg(Maximum laden weight)
For 4 Axle 43500 Kg(Maximum laden weight)
Type:
2 Axle Cement Trailer (V Type)
3 Axle Cement Trailer (V Type)
4 Axle Cement Trailer (V Type)
Option: VACUUM Cement Trailer
Weight (Empty):
6.500 Kg - 8.700 Kg
Axle Unit:
12 (13 ton Fuwa brand)
Tire Unit And Dimension:
For 2 Axle, 4 Unit 385/65 R 22,5" or 8 Unit 12R22,5
For 3 Axle, 6 Unit 385/65 R 22,5" or 12 Unit 12R22,5
For 4 Axle, 8 Unit 385/65 R 22,5"
Chassis:
Cement Trailer (or vacuum cement trailer) has been produced in welding constructions with gas metal arc welding as "I" crossing from high resistant steel considering overloads proper to capacity and intended usage.
Tank Material:
Cement Trailer is produced from standard 4 mm "Ereğli". It depends on (light) 3mm MC 700 (flexible and reliable) it can provide. Vacuum Cement Trailer (suction and compression) vacuum cement trailer iron diameter is the 5 mm.
Brake:
Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, EBS, WABCO is brand
Compressor and Drive System:
Cement Trailer Compressor is two head or 3 head; brand is Bekomsan or Genckomp (Standart 3 head). Cement Trailer Compressor is system electrical (380 Volt AC) or Diesel engine (revision).
Vacuum cement trailer compressor is German. The brand is "WOLF."
Manhole Covers and Filling:
According to capacity 2 or 3 units utility hole covers ( top discharge and for filling). Vacuum (suction and compression) for version 3 inc or 4 inc is the dimension. Filter with piping (compressor pressure) it makes.
Accessories:
All Tender (plastic), water tank, bump stop rubber. Plastic tool cabinet and eat box, manometer (suspension boot barometric pressure shall).
V Type Cement Trailer Dimensions:

Total Length:
8000 mm - 12000 mm
Cement Trailer Capacity (Volume):
22 m3- 25 m3-(28 m3- 30 m3- 32m3- 35m3)* -40 m3- 45 m3- 50m3
(*General Volume)
Width:
2550 mm.
Total Height:
3500 mm - 4000 mm
Electric Installation:
The used Installation materials conform to the EEC 24 Certified European norms.
Lifting Foot:
OMS or GOS brand 2x24 tones two cycles lack lift system.
Paint:
The desired colour of Acrylic paint is used as the top coat over two layered epoxies.
King Pin:
2" or 3,5" flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screwing connections. E Certified

1. What’s your MOQ?

one unit semi-trailer

2. What's the delivery time?

Our delivery time is usually 25 days after deposit, and we will manage to keep our words.

3. Can you do OEM or CKD?

Yes, we can do OEM and CKD, and we've been cooperation with global customer for years.

4. How do you transport semi-trailers?

We transport the semi-trailers by build or container. Our factory possesses long-term cooperation

with the ship, the agency can provide you lowest shipping fee.

5. What should I know when placing an order?

The expected capacity, dimension, quantity, usage is beneficial for us to design a proper trailer for you,

if you have any special requirements, don't hesitate to tell us.
