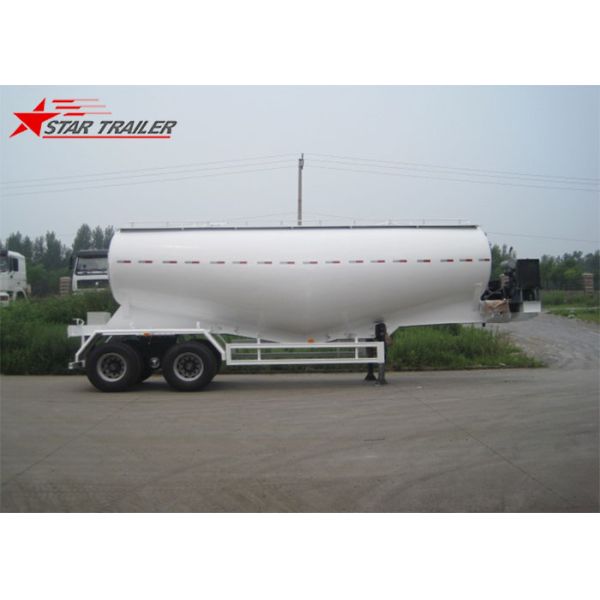

Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck
Specifications
Brand Name :
Startrailer
Model Number :
CM-001
Certification :
ISO、CCC
Place of Origin :
Shandong Province, China
MOQ :
2 units
Price :
USD18000-USD9000
Payment Terms :
T/T
Supply Ability :
50 units per month
Delivery Time :
50 days after receive payments
Packaging Details :
One unit per package loaded on the Flat-rack transport by container vessel;
Tank Volume :
30,000L
Tank material :
4mm thickness SM490A
Dished Ends :
5mm thickness SM490A
Pipe material :
Carbon steel
Discharging Hose Diameter :
4 inches
Discharging valve :
4” butterfly valve
Description

Click this link to talk to us:

Whatsapp: https://api.whatsapp.com/send?phone=8613864856071

YOUTUBE: https://www.youtube.com/user/BenjaminDuBin

Overview
Quick Details

Purpose: Logistics between cities Type: Semi-Trailer

Material: Carbon Steel Certification: ISO CCC

Size: 12000*2500*3900mm Max Payload: 80T

Place of Origin: Shandong Province, China Brand: Startrailer

Utility hole cover:500mm, 1piece Axle:13T Axle FUWA/BPW Brand

Landing Gear: Standard 28 ton, JOST optional Tire:12R22.5 /11.00R20

Brake System: Dual line pneumatic service brake system.

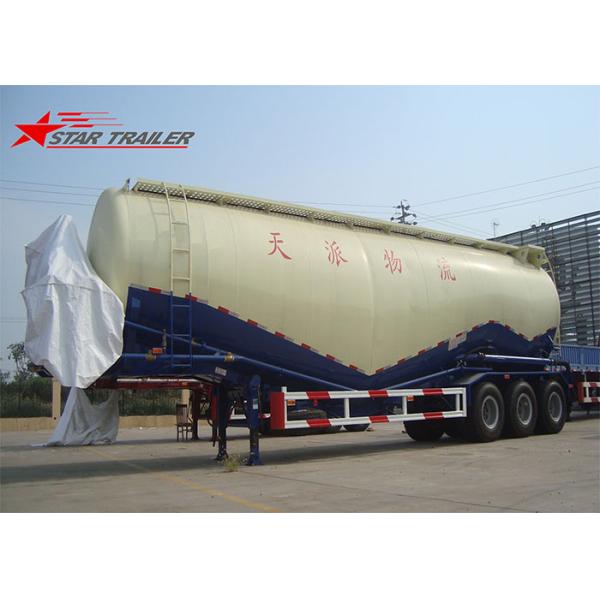

Three-Axle Air Discharge Tanker For Carrying Dry Bulk Cement Tank Semi Trailer

Specifications:

Type: Air Discharge Tanker For Carrying Cement

​DIMENSION:

Overall Length: 11,035mm

Overall Width: 2,500mm

Overall Height: 3,830mm

King Pin Setting: 1,515 mm

King Pin Plate Height: 1, 300 mm

King Pin to Landing gear: 2,550 mm

Wheel Span: 7,110 mm

Axle Spacing: 1,300 mm

TANK:

Tank Volume: 30,000L

Tank material: 4mm thickness SM490A

Dished Ends: 5mm thickness SM490A

Pipe material: Carbon steel

Discharging Hose Diameter: 4 inch

Discharging valve: 4” butterfly valve

Releasing Hose Length: 5,000mm

Hose quick coupling: 4” JG/T5021-93 (Chinese standard)

MAX. Horizontal Discharging Distance: 5,000mm

MAX. Vertical Discharging Distance: 15,000mm

Working pressure: 2 bar

Diesel engine: YANGZHOU 495GI

Air Compressor: WB-7/2

RUNNING GEAR:

Suspension: Undermount tandem suspension with equaliser,8-Leaf Spring.

Axle: Square axle, 13,000 kg capacity. (TSU13010)

Brake: Dual lines pneumatic brake system.

Parking Brake: Type 30/30 spring brake system on all axles.

Wheel: 10 holes steel Disc wheel.

Tire: 11.00x20 16 ply rating ,9 pcs (including one spare tire)

Kingpin: 2”.

LANDING LEG: (TSU CL25TA).

Two-speed manual operation type with the sandshoe.

ELECTRICAL:

Voltage: 24 Volt.

Receptacle: 7 way

Light: Front marker lamp: white

Side marker lamp: white and red

Rear lamp: red

Turn signal lamp: amber

STRUCTURAL WEIGHT RATING:

Tare Weight : 10,000kg

Payload : 23,300kg

G.V.W.R.: 33,300kg

King Pin Weight : 15,300kg

Axle Weight: 18,000kg

similar product

Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck

Air Discharge Carrying Dry Bulk Cement Trailers , Durable Cement Tanker Truck

Our Advantages

1. Steel structure: steel frames are built with top-class hot rolled or cold rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
2. Different types of suspensions are designed for the various operating condition; Bogie suspension; Air suspension; Mechanical Suspension.
3. Lamp assembly uses advanced LED light, top quality PC and cat wire harness in dual circuit design.
4. State-of-the-art detection devices: Components, hardness, and phase of metal are analysed to ensure the standards of processed material: Weld seam defects, paint thickness and adhesiveness are checked and amended to guarantee the quality of finished products.
5. Automatic the inflation and pressure sensor system is optionally available for enhanced saved and better fuel economy.

6. The axle is a world famous brand FUWA/BPW, also can choose other brands independently
