Specifications
Brand Name :
Startrailer
Model Number :
CM-003
Certification :
CCC、ISO9001
Place of Origin :
Shandong Province, China
MOQ :
2 units
Price :
USD18000-USD9000
Payment Terms :
T/T
Supply Ability :
50 units per month
Delivery Time :
50 days after receive payments
Packaging Details :
One unit per package loaded on the Flat-rack transport by container vessel;
Colour :
Green
Materual :
Carbon Steel
MOQ :
2 units
Volume :
optional
Description

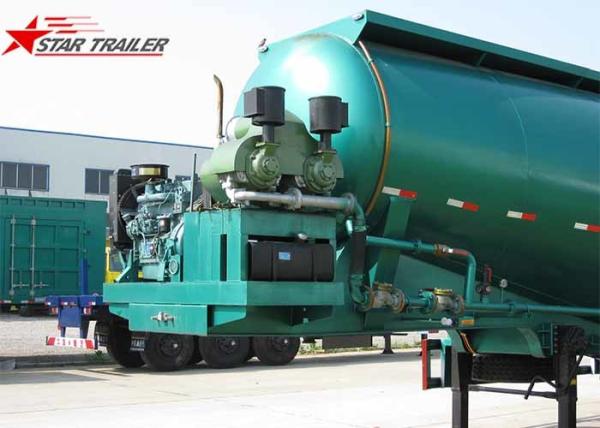

Banana Type Fuwa 3 Axles Bulk Cement Semi Trailer Green Colour CCC ISO Certification

Click this link to talk to us:

Whatsapp: https://api.whatsapp.com/send?phone=8613864856071

YOUTUBE: https://www.youtube.com/user/BenjaminDuBin

Banana Type Cement Trailer is used for carrying cement, lime, and any other powder materials in bulk, which is mostly preferred in Africa and Middle East countries. We offer this trailer with electrical or diesel compressor, and we have flexibility on the technical specification of Cement Trailer Banana Type. Nova Trailer can offer a competitive price and highest quality Cement Trailer Banana Type.

Overview
Quick Details

Type: Semi-Trailer Material: Carbon Steel

Certification: CCC, ISO Size: customised

Max Payload:45 - 100 Tons Place of Origin: Shandong Province, China

Brand: Startrailer Volume: optional

Axle Brand: BPW, FUWA, etc. Tyres: 12 pcs Kingpin: 2" or 3" for bulk cement tank semi-trailer

Suspension System: mechanical/air suspension Axles: 13 tons Fuwa

Color & painting: Customized

Keywords: bulk cement tanker

Production Capacity:

30 units per month trailer

Packaging & Delivery
One unit per package loaded on the Flat-rack transport by container vessel;

Port

The major port in China

Banana Type Fuwa 3 Axles Bulk Cement Semi Trailer Green Colour CCC ISO Certification

Product description

DIMENSION:

Overall Length:

12,906mm

Tare Weight 10000 kg
Overall Width:

2,500mm

Overall Height:

3,878mm

Kingpin Setting:

1,160 mm

Kingpin Plate Height: 1, 320 mm
Kingpin to Landing gear: 2,550 mm
Wheel Span:

7,980 mm

Axle Spacing:

1,350 mm

TANKER:
Tank Volume : 37,000L
Tank material :

4mm thickness SM490A

Dished Ends : 5mm thickness SM490A
Pipe material : Carbon steel
Discharging Hose Diameter : 4 inch
Discharging valve:

4” butterfly valve

Discharging Hose Length :

5,000mm

Hose quick coupling : 4” JG/T5021-93 (Chinese standard)
MAX. Horizontal Discharging Distance :

5,000mm

MAX. Vertical Discharging Distance :

15,000mm

Working pressure :

2 bar

Diesel engine:

YANGZHOU 495GI

Air Compressor:

WB-7/2

RUNNING GEAR:

Suspension: Undermount tri-axle suspension with equaliser,8-Leaf Spri
Axle:

Square axle 13,000 kg capacity. (TSU 13010)

Brake:

Dual lines pneumatic brake system.

Parking Brake:

Type 30/30 spring brake system on all axles.

Wheel:

Ten holes steel Disc wheel.

Tire: 11.00x20 16 ply rating ,13 pcs (including one spare tire)
Kingpin : 2”.

LANDING LEG: (TSU CL25TA).

Two-speed manual operation type with the sandshoe.

ELECTRICAL:

Voltage: 24 Volt.
Receptacle: Seven-way
Light :

Front marker lamp: white

Side marker lamp: white and red

Rear lamp: red

Turn signal lamp: amber

STRUCTURAL WEIGHT RATING:

Tare Weight : 12,100kg
Payload : 27,500kg
G.V.W.R.: 39,600kg
Kingpin Weight : 15,715kg
Axle Weight: 23,885kg

Product Details

Banana Type Fuwa 3 Axles Bulk Cement Semi Trailer Green Colour CCC ISO Certification

What is cement bulker?

1. Cement bulker is also known as cement bulk trailers, bulk cement tankers & cement trailers & pneumatic trailer.

2. Cement bulker is suitable for carrying bulk cement, coal ash, lime power, mineral power, flying ash and other power material with the particle diameter no more than 0.1mm.

3. Cement trailer is mainly used in cement factories, cement warehouses and large construction sites. With cement tanker, it will not only reduce the loss rate of cement power material but also improve the loading and unloading efficiency.

4. It is the best method to transport cement as bulkers are airtight. So it prevents the cement from getting exposed to the environment.

cement bulker advantage:

1. High strength wear-resistant steel: the tank body made of high-strength and wear-resistant steel, that can ensure its long service life than ordinary material

2. All the welding: perfect for making sure the high safety and no air leak: Special welding machine to weld the tank body from one side but form smooth, sturdy and uniform welds on both sides.

3. Latest flow structure: Increase load capacity, lower gravity centre, fast discharging and a small number of residual materials. residual volume less than 50kg, and the discharge speed up to 1.53cbm/min

4. Pipeline system: Fitted with reasonable auxiliary blower and anti-wear device, to realise smoother unloading process and faster unloading speed.

5. Domestic and foreign famous brand accessories and parts: Such as which engine, Bohai air compressor, Fuda air compressor, Make sure it's complete, save costs on operation and repair costs

6. Trailer frames: Use high-strength steel materials, light dead-weight, and ensure its resistance to twisting forces, shock and bump, meet load requirements on different kinds of road.
