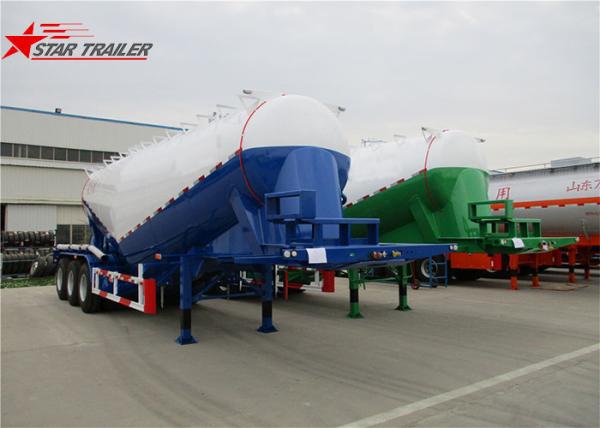

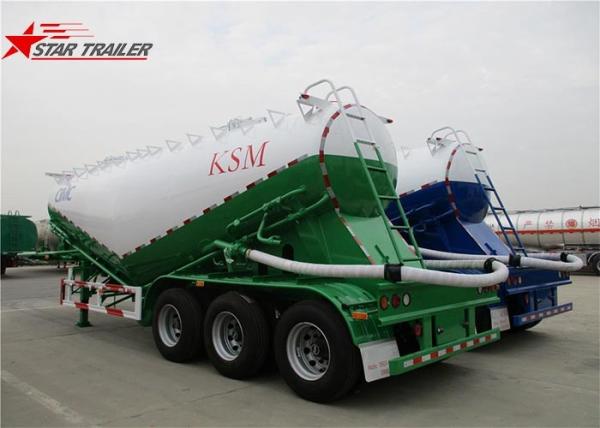

Structure:
– It is manufactured in 22 to 60 M3 volumes according to request

– Operating Pressure 2 BARS

– Test Pressure 3 BARS

– The body is ‘’Banana’’ type

– 4 mm-7 mm St 37 or St52 plate is used on semi-trailer body

Air Compressor:
– 3 head or 2 Head, a powered compressor with pistons and diesel Deutz motor or Electrical motor

Bakuman brand

Unloading Valve:
– It is unloaded from 4” or 3” spherical valve by the help of vibration hoses floored in the bottom.

Security Valve:
– It limits the pressure to 2 bars in the tank by 2 pcs of valves

Chassis:

Monoblock chassis is manufactured from St quality plate by using robot welding technology

Axles:

Fuwa,/Bpw 3 x 9,12,14,16 Ton axles brake drum or disc

There are brake shoes and heavy brake levers suitable for TSE norms

air-suspension-axle-set mechanical-suspension-axle-setbogie-suspension-axle-set

Suspensions ;

It is supplied 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width

Brake System ;

Wabco brand ABS or EBS braking system will be used.

Brake Chambers ;

1 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers

Electrical system ;

Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear

2 tail & stop combined fires (red)

2 turn signal combined lamps (orange)

1 license lamp (white)

Tires;

385/65 R22,5 or 12 R22,5 or 13 R22,5 or 315/80 R22,5 Bridgestone, Goodyear, Triangle, Michelin
Rims; 11.75 R22.5 Brand

Kingpin ;

Jost standards 2’’ or 3,5’’ kingpin detachable from below made by SAE standards 8 bolt type. With E certificate.

Landing Gear ;

Jost Turkish brand front Jack feet are telescopic, parallel working, double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity

Painting ;

Before the painting trailer is sandblasted

ZincRich epoxy grey is used for first protecting.

1-2 Times of high-quality paints are applied on trailer protects against humanity

Our customer selects the colour of the trailer according to RAL codes

STANDARD ACCESSORIES
– 2 pieces of utility hole caps that have the single cover and having durability for a test pressure

– 1 air pressure gauge

– Unloading air funnel hose system which provides liquidity

– 1 security valve set to 2.5 bars

– 1 spherical jet air valve that accelerates the unloading process

– 1 under lap toolbox (on body)

– 1 non-slip floor, walking platform

– 1 ladder (climbed from behind)

– 2 PVC pipes to carry unloading hoses

– Multi-piece plastic fenders that cover trailing axle tires

– 1 plate tool box

– Control Panel (Mob, air clock, access ramp lever)

– Plastic water tank

– Roller spare tire conveyor

– Mounting and mounting space
