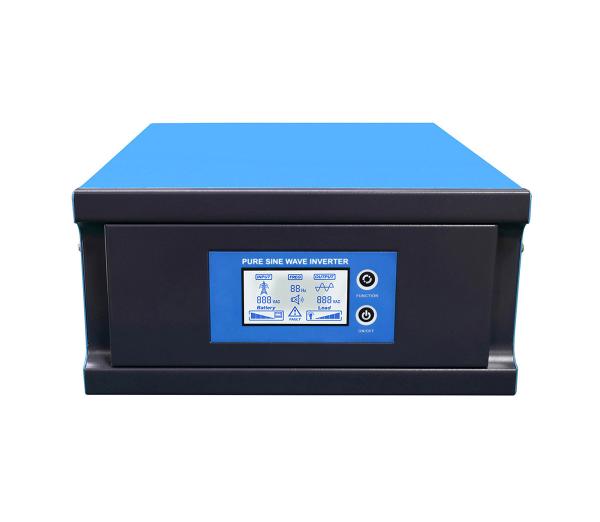

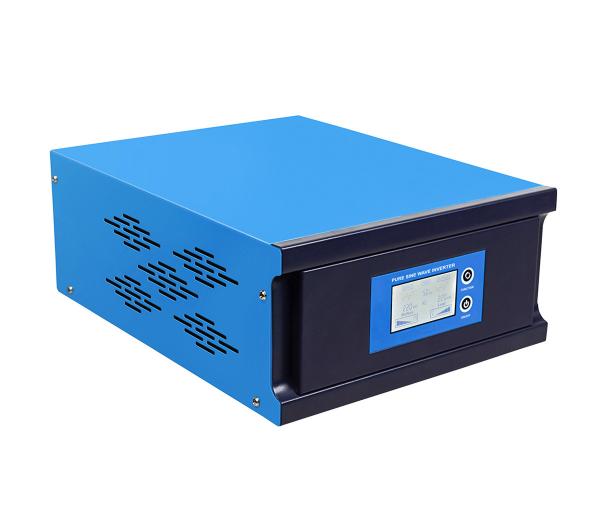

350W 50Hz Self Adaption Solar Pv Inverter With Built In Charge Controller
350W 50Hz Self Adaption Solar Pv Inverter With Built In Charge Controller
350W 50Hz Self Adaption Solar Pv Inverter With Built In Charge Controller
350W 50Hz Self Adaption Solar Pv Inverter With Built In Charge Controller
Specifications
Brand Name :
Leeque
Model Number :
YQPD350W-1000W
Certification :
CE&IEC
Place of Origin :
made in China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000+pc+per month
Delivery Time :
5-25days
Packaging Details :
Packing Size:L310*W240*H115mm/L370*W320*H200mm
Rated Power :
350W/500W/1000W
battery Voltage :
12VDC/24VDC
DC Input Voltage Range :
10.5VD-15VDC(Single battery voltage)
AC Input Voltage Range :
73~138VAC/145~275AC
Efficiency :
≥85%
Output Voltage(Battery Mode) :
110VAC±2%/220VAC±2%(Battery Mode)
Description

Product Name:

YQPD PV inverter 350W12V,500W12V,1000W24V invert to 110V/220V,50/60Hz self-adaption.

Product certificate:

CE&IEC

Application area

Domestic appliance:fan,lamp,rice cooker,etc.

Office equipment:computers,printers,etc.

Electronic tools:electri drill,punching machine,water pump,etc.

Vehicle and Ship equipment:ambulances,ships,traffic lights,etc.

Emergency power supply:standby power supply.

PV inverter can be used in small-scale PV power system,which contain mobile phones, notebooks,computers,digital cameras,rice cookers,fans,hand drills and other electrical appliances with total power not exceeding 350W,500W or 1000W.

Product Description

Feature

  1. Pure sine wave ouput low frequency toroidal transformer lower loss;
  2. LCD/LED&LCD real-time display working status;
  3. AC charging function,maximum charge current up to 15A,AVR AC output.
  4. Auto select working modes:AC first,battery first and energy-saving mode;
  5. RS232 communication port optional;

PV Inverter Parameters

Model:YQPD YQPD350W YQPD500W YQPD1000W
Rated Power 350W 500W 1000W
Battery Voltage 12VDC 12VDC 24VD
Size(L*W*Hmm) 310*240*115
Packing Size(L*W*Hmm) 370*320*200
N.W.(kg) 5 6 8
G.W.(kg)(Carton Packing) 6 7 9

Parameter
Input DC Input Voltage Range 10.5VD-15VDC(Single battery voltage)
AC Input Voltage Range 73~138VAC/145~275AC
AC Input Frequency Range 45Hz~64Hz

Output

 Efficiency ≥85%
Output Voltage(Battery Mode) 110VAC±2%/220VAC±2%(Battery Mode)
Output Frequency(Battery Mode) 50Hzor 60Hz±1%
Output Wave (Battery Mode) Pure Sine Wave
AC Output Voltage Range 110VAC±10%/220VAC±10%
AC Output Frequency Range Tracking Automatically
Transfer Time ≤4ms
Battery Type According to Customer Requirements
Display LCD
AC Charging current Max 15A
Thermal method Cooling fan in intelligent control
AC First(mains first with AC charging)
Working Mode Saving Energy Mode(Load powers ≤10% machine turns off,≥11%-100% machine turns on)
Battery First(When charging Battery voltage≥13V,turn converting mode;When converting:Battery voltage≤10.5V,turn mains mode)
Communication RS232(Optional)
Protection Battery low voltage alarm 10.5VDC(Single battery voltage)
Battery low voltage protection 10VDC(Single battery voltage)
Battery over voltage protection 17V±0.5V(Single battery Voltage)
Battery over voltage alarm 15VDC-16VDC(Single battery voltage)
Over power protection 110% more than rated capacity
Temperature protection ≥85℃ alarm, ≥90℃ machine shut off
Enviroment Noise ≤55dB
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Note:All specifications are subject to charge without prior notice
