500W 15A 48 Volt Dc To 220 Volt Ac Inverter With Built In Charge Controller
500W 15A 48 Volt Dc To 220 Volt Ac Inverter With Built In Charge Controller
Specifications
Brand Name :
Leeque
Model Number :
YQNBTseries
Certification :
CE
Place of Origin :
made in China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000+pcs+per month
Delivery Time :
5-25days
Rated Power :
350W-40KW
Battery Voltage :
12V/24V/48V/96VDC/192V/240V/384V
Total Harmonic Distortion :
≤3%
Efficiency :
≥85%
Working Mode :
Battery First/AC First/Saving Energy Mode
AC Charging current :
Max15A
Battery Type :
According to Customer Requirements
Transfer Time :
≤4ms
Display :
LCD
Thermal Method :
cooling fan in intelligent control
Description

Hybrid solar inverter with Working modes:AC first or battery first optional ,intelligent charging

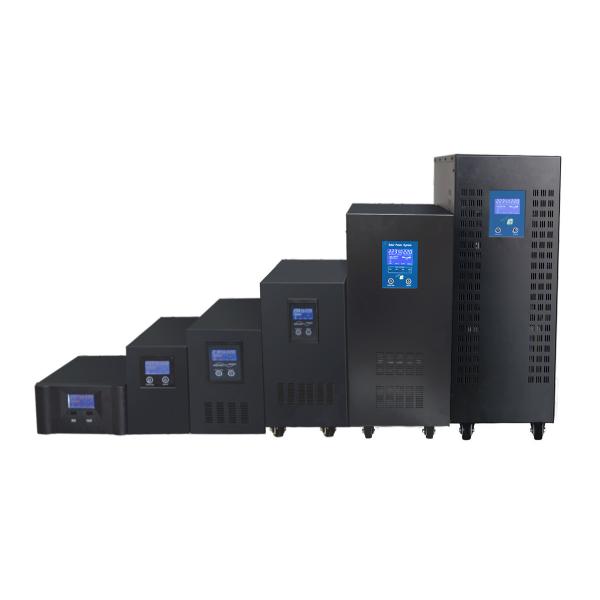

YQNBT Hybrid solar inverter

Product certificate:

CE&IEC

Application area

Domestic appliance:fan,lamp,rice cooker,etc.

Office equipment:computers,printers,etc.

Electronic communications:DVD,monitoring devices,communication stations,etc.

Vehicle and Ship equipment:ambulances,ships,traffic lights,etc.

Emergency power supply:standby power supply

Product Description

Feature

  1. Pure sine wave ouput;
  2. Wide AC voltage input range,AVR output;
  3. Adopt traditional EI transformer,stable performance;
  4. LCD/LED&LCD real-time display,concise and straightforward;
  5. Working modes:AC first or battery first optional ,intelligent charging;
  6. Built-in MPPT or PWM charge controller optional.
  7. Special voltage,power and appearance can be sustomized
  8. RS232 communication port optional.

Hybrid Inverter Parameters

Model:YQNBT YQNBT350W YQNBT500W YQNBT700W YQNBT1000W YQNBT1500W YQNBT2000W YQNBT3000W YQNBT4000W
Rated Power 350W 500W 700W 1000W 1500W 2000W 3000W 4000W
Battery Voltage 12/24V 12/24V 24/12VDC 24V/48VDC 24v/48v 24V/48V 48V/96V

Inside Solar controller

(Optional)

 10A~30A(PWM) 10A~60A(PWM or MPPT)
Size(L*W*Hmm) 335*210*122 410*143*210 400*180*320 420*208*348 460*245*445
Packing Size(L*W*Hmm) 385*270*185 460*200*270 480*240*380 490*300*400 530*310*550
N.W.(kg) 6.5 8 10/11 13 18 21 23/29 46
G.W.(kg)(Carton Packing) 7.5 9 11/12 14 19 22 24/30 48
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85V～138VAC/89V～144VAC/93V～150VAC/170～275VAC/178V～288VAC/186V～300VAC
AC Input Frequency Range 45Hz～65Hz

Output

 Efficiency ≥85%
Output Voltage(Battery Mode) 110VAC±2%/115VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
AC Output Voltage Range 110VAC±10%/115VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%
AC Output Frequency Range Tracking Automatically

Inside

Solar controller

 Charging Mode MPPT or PWM
Charging current 10A,20A,30A,40A,50A,60A
PV Input Voltage Range 12V system:15V-44V;24V System:30V-44V;48V System:60V-88V
Max PV Input Voltage(AT25℃) 12V/24V system:50V;48V system:100V
PV Array Maximum Power

12V system:140W,280W,420W,560W,700W,840W;

24V system:280W,560W,840W,1120W,1400W,1680W;

48V system:560W,1120W,1680W,2240W,2800W,3360W;
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging current(selectable) 0～30A
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Battery Type(selectable) LEAD Charge Voltage:14V;Float Voltage:13.8V(Single battery Voltage, x2 for 24V; x4for 48V
OP-LE Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage, x2 for24V; x4 for 48V
Lithium Charge Voltage:13V;Float Voltage:12.6V(Single battery voltage, x2 for24V; x4 for 48V
Remark The Charging parameters of other types battery can be user-defined
Protection Over-load/Over-discharge/Short circuit/High temperature/Reverse polarity
communication RS232/RS485 (Optional)
Environment Noise ≤55dB
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Note:All specifications are subject to charge without prior notice
