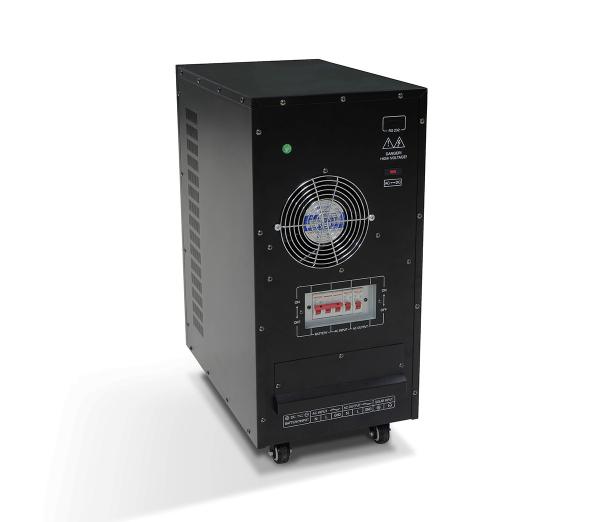

7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
7HP 10 Kilowatt Inverter 7kw Solar Inverter 275VAC 10kw Hybrid Inverter
Specifications
Brand Name :
Leeque
Model Number :
YQNBT7000W /10KW
Certification :
CE
Place of Origin :
made in China
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram
Delivery Time :
5-25days
Rated Power :
7000W/10KW
Peak Power(20ms) :
21000W/30KW
Start Motor :
5HP/7HP
Battery Voltage :
48VDC/96VDC
DC Input voltage range :
10.5-15VDC(Single battery voltage)
AC Input voltage range :
73VAC～138VAC/145 VAC～275VAC
AC input frequency range :
45Hz～65Hz
Description

YQNBT7000W /10KW MPPT Best popular Sine wave Photovoltaic hybrid inverter

Product model:
YQNBT7000W /100KW DC96V/192V Best popular DC　AC PWM hybrid inverter
convert to 110V/120VAC,built-in 50A /100A PWM charge controller.
Product certificate:
CEIEC
Application area
YQNBT7000W /10KW PWM Photovoltaic hybrid inverter can be used in home appliance,agricultural equipment,industrial electric tools,electric power communication equipment whose total power not exceeding7KW ,or10KW.
Feature

  1. Pure sine wave output;
  2. Wide AC voltage input range,AVR output.
  3. Adopt traditional EI transformer with stable performance;
  4. LCD/LED&LCD real-time display,concise and straightforward;
  5. Working modes:AC first or battery first optional ,intelligent charging;
  6. RS232 communication port optional;

DC AC hybrid inverter Parameters

Model:YQNBTYQNBT7000WYQNBT1000W
Rated Power7000W10KW
Peak Power(20ms)21000W30kW
Start Motor5HP7HP
Battery Voltage48VDC/96VDC
Size(L*W*Hmm)485*300*646
Packing Size(L*W*Hmm)550*365*785(1PCS)
N.W.(kg)6266
G.W.(kg)(Carton Packing)7277
InstallationTower
Parameter
InputDC Input Voltage Range10.5-15VDC(Single battery voltage)
AC Input Voltage Range73VAC～138VAC/145 VAC～275VAC
AC Input Frequency Range45Hz～65Hz
Max AC charging current15AMAX(Depending on the model)
AC charging voltageLEAD battery:Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage)
AC charging methodThree-stage(constant current,constant voltage,floating charge)



Output

Efficiency(Battery Mode)≥85%
Output Voltage(Battery Mode)110VAC±2%/220VAC±2%(Battery Mode)
Output Frequency(Battery Mode)50Hz±0.5or60Hz±0.5
Output Wave(Battery Mode)Pure Sine Wave
Efficiency(AC Mode)>99%
Output Voltage (AC Mode)110VAC±10% / 220VAC±10%
Output Frequency (AC Mode)Tracking Automatically
Output waveform distortion(Battery Mode)≤3%(Linear load)
No load loss(Battery Mode)≤2.5% rated power(7KW); ≤1% rated power(10KW)
No load loss(AC Mode)≤2% rated power( charger does not work in AC mode)
No load loss(Energy saving Mode)≤10W
Battery TypeCustomized batteryCharge and discharge parameters of different types of batteries(such as lithium batteries,etc.)can be customized according to user requirements.
Battery undervoltage alarm11V(Single battery voltage)
Battery undervoltage protection10.5V(Single battery voltage)
Battery overvoltage alarm15V(Single battery voltage)
Battery overvoltage protection17V(Single battery voltage)

Protection

Battery overvoltage recovery voltage14.5V(Single battery voltage)
Overload power protectionAutomatic protection(battery mode),circuit breaker or insurance(AC mode)
Output short circuit protectionAutomatic protection(battery mode),circuit breaker or insurance(AC mode)
Temperature protection>90°C(Shut down output)
Inside Solar controllerCharging ModePWM
Charging current96V /192system: 50A,100A
PV Input Voltage Range96V System:120V-176V;192V system:240V-352V
Max PV Input Voltage(At 25°C)96V system:200V;192V system:400V
PV Array Maximum Power

96Vsystem: 5.6KW, 11.2KW, 1680W;

192V system:11.2KW,22.4KW

Standby loss≤3W
Maximum conversion efficiency>95%

Alarm

ANormal working condition,buzzer has no alarm sound
BBuzzer sounds 4 times per second when battery failure,voltage abnormality,overload protection
CWhen the machine is turned on for the first time,the buzzer will prompt 5 when the machine is normal
Working ModeBattery First/AC First/Saving Energy Mode
Transfer Time≤4ms
DisplayLCD
Thermal methodCooling fan in intelligent control
CommunicationRS232(Optional)
Operating temperature-10℃~40℃
Storage temperature-15℃~60℃
EnvironmentNoise≤55dB
Elevation2000m(more than derating)
Humidity0~95%( No condensation)
Note:All specifications are subject to charge without prior notice
