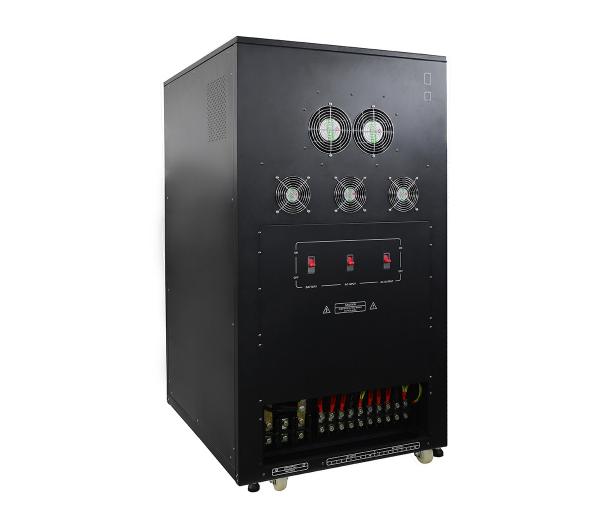

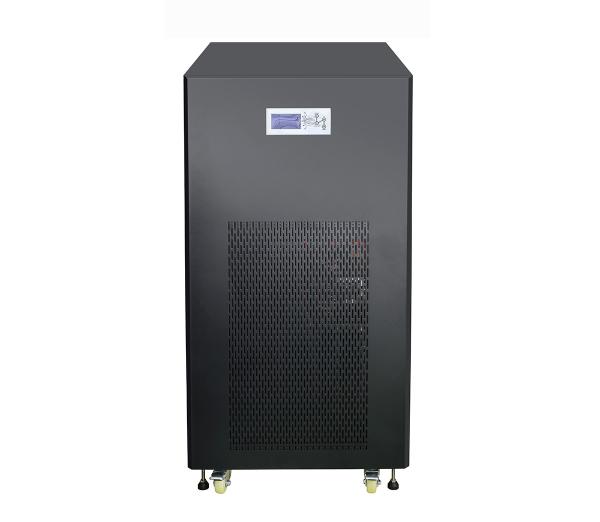

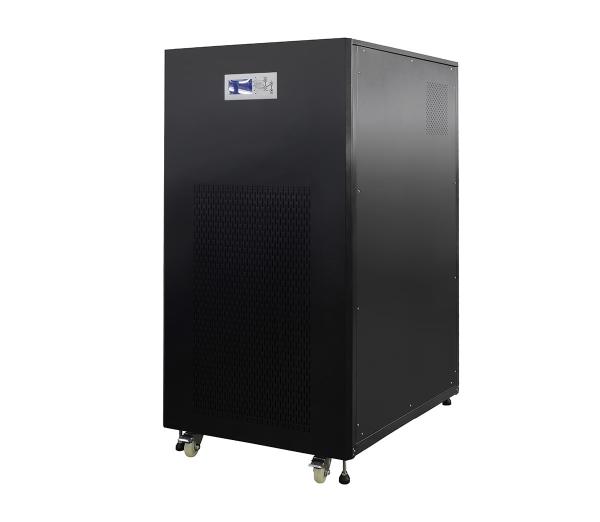

3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
3 Phase Off Grid Solar Inverter 100KVA 150KVA Low Frequency Power Inverter
Specifications
Brand Name :
Leeque
Model Number :
YQHDSX100KVA/125KVA/150KVA
Certification :
CE&IEC
Place of Origin :
made in China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000+pc+per month
Delivery Time :
5-25days
Model: :
100KVA
Rated Power :
80KW
Voltage :
384V
N.W.(kg) :
850
Output Wave (Battery Mode) :
Pure Sine Wave
THD :
Liner load≤3%
Description

Product Name: solar PV 3 phase off grid inverter 100KVA/125KVA/150KVA DC384V invert to AC380V/400V(customized AC190V/200V)

Product certificate:

CEIECTLC

Application area

solar PV 3 phase off grid inverter can be used in high power water pump,bench drill and other industrial electric with high –power thre-phase industrial motorand with total power not exceeding 80KW, 100KW,120KW.

Product Description

Feature

  1. Pure sine wave ouput ;
  2. Wide LCD screen,clearly and precisely shows icon data;
  3. AC charge current 0 to 45A adjustable;
  4. 100% imbanlance loading design,3times peak power;
  5. Setting different working modes based on varible usage requirements;
  6. DC first/AC first optional
  7. Various communication ports and romote controls(RS232/RS485/APP/SNMP/GSM optional)

Solar Three Phase Power Inverter Parameters

Model:YQHDSX 100KVA 1250KVA 150KVA
Rated Power 80KW 100KW 120KW
Battery Voltage 384V
Size(L*W*Hmm) 925*760*1450
Packing Size(L*W*Hmm) 990*825*1590
N.W.(kg) 850 900 1120
G.W.(kg)(Wooden Packing) 895 945 1165
Parameter
Input AC Input Voltage Range 380VAC/400VAC±10%(customized 190VAC/200VAC)
AC Input Frequency Range 45Hz~65Hz
Phase 3/N/PE

Output

 Efficiency ≥85%
Output Voltage(Battery Mode) 380VAC/400VAC±10%(Customized 190VAC/200VAC)
Output Frequency(Battery Mode) 50/60Hz ±1%
Output Wave (Battery Mode) Pure Sine Wave
THD Liner load≤3%
AC Output Voltage Range Conforming to A C input
AC Output Frequency Range Conforming to A C input
Phase 3/N/PE

Battery

 DC input voltage range 10.5-17V DC/Single battery
Battery low voltage alarm 11V /Single battery
Battery low voltage protection 10.5V DC/Single battery
Battery high voltage alarm 15V /Single battery
Battery high voltage protection 17V DC/Single battery
Battery Type U0: Gel U.S.A / U1: A.G.M.1 /U2: A.G.M.2 / U3: Sealed lead Acid / U4: Gel European / U5: Open lead Acid / U6: Calcuim(open) / U7: Sulphation cycle
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
AC Charging current(selectable) 0~45A
Display LCD
Thermal method Forced air cooling
Protection Over-load/Over-discharge/Short circuit/High and low temperature
Communication RS232/RS485/APP/SNMP/GSM(Optional)
Enviroment Noise ≤65dB
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Height 2000m(Less load when height over)
Note:All specifications are subject to charge without prior notice
