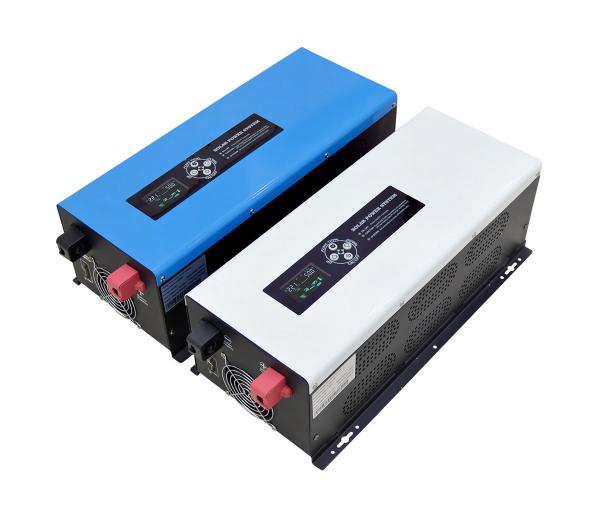

4KW 5KW 6KW Hybrid Solar Inverter With Built In Charge Controller
4KW 5KW 6KW Hybrid Solar Inverter With Built In Charge Controller
Specifications
Brand Name :
Leeque
Model Number :
YQLWT1000W/2000W/3000W/4000W/5000W/6000W
Certification :
CE
Place of Origin :
made in China
MOQ :
5
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
5000+pcs+per month
Delivery Time :
5-25days
Rated Power :
1000W/2000W/3000W/4000W/5000W/6000W
Peak Power(20ms) :
3000W/6000W/9000W/12000W/15000W/18000W
Start Motor :
1HP/2HP/3HP/3HP/4HP/4HP
Battery Voltage :
12/24/48VDC
Installation :
Wall-Mounted
DC Input Voltage Range :
10.5-15VDC
Communication :
RS232/RS485 (Optional)
Description

YQLWT1000W/2000W/3000W/4000W/5000W/6000W hybrid inverter

Product certification

CE&IEC

Application area

Domestic appliiance:fan,lamp,rice cooker,etc.

Office equipment:computers,printers,etc.

Electronic communications:DVD,monitoring devices,communication stations,etc.

Electric tools:electric drill,punching machine,water pump,etc.

Vehicle and ship equipment:ambulances,ships,traffic lights,etc.

Emergency power supply:standby power supply.

Product Description

Feature

  1. Pure sinusoidal output
  2. Built-in PWM charge controller optional;
  3. AC charge current 0-30A adjustable:AVR output;
  4. Low frequency totordal transformer increase efficienc;
  5. Dedicated DCP chip design;stable and high-speed operation;
  6. Added fault code query function,easy to monitor the operation in real time;
  7. Supports diesel or gasoline generator,adapt anytough electricity situation;
  8. Communication ports:RS232/RS485(Optional)

Hybrid Inverter Parameters

Model:YQLWT YQLWT1000W YQLWT2000W YQLWT3000W YQLWT4000W YQLWT5000W YQLWT6000W
Rated Power 1000W 2000W 3000W 4000W 5000W 6000W
Peak Power(20ms) 3000W 6000W 9000W 12000W 15000W 18000W
Start Motor 1HP 2HP 3HP 3HP 4HP 4HP
Battery Voltage 12/24VDC 12/24/48VDC 24/48VDC 48VDC
Size(L*W*Hmm) 550*243*175 570*261*199
Packing Size(L*W*Hmm) 605*305*270 625*320*295
N.W.(kg) 11 19 20.5 20.5 22.5 24 26
G.W.(kg)(Carton Packing) 12.5 20.5 22 22 24 26 28
Installation Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85V～138VAC/89V～144VAC/93V～150VAC/170～275VAC/178V～288VAC/186V～300VAC
AC Input Frequency Range 45Hz～65Hz

Output

 Efficiency ≥85%
Output Voltage(Battery Mode) 110VAC±2%/115VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
AC Output Voltage Range 110VAC±10%/115VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%
AC Output Frequency Range Tracking Automatically

Inside

Solar controller

 Charging Mode PWM
Charging current 10A,20A,30A,40A,50A,60A
PV Input Voltage Range 12V system:15V-44V;24V System:30V-44V;48V System:60V-88V
Max PV Input Voltage(AT25℃) 12V/24V system:50V;48V system:100V
PV Array Maximum Power

12V system:140W,280W,420W,560W,700W,840W;

24V system:280W,560W,840W,1120W,1400W,1680W;

48V system:560W,1120W,1680W,2240W,2800W,3360W;
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging current(selectable) 0～30A
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Battery Type(selectable) LEAD Charge Voltage:14V;Float Voltage:13.8V(Single battery Voltage, x2 for 24V; x4for 48V
OP-LE Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage, x2 for24V; x4 for 48V
Lithium Charge Voltage:13V;Float Voltage:12.6V(Single battery voltage, x2 for24V; x4 for 48V
Remark The Charging parameters of other types battery can be user-defined
Protection Over-load/Over-discharge/Short circuit/High temperature/Reverse polarity
communication RS232/RS485 (Optional)
Environment Noise ≤55dB
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Note:All specifications are subject to charge without prior notice
