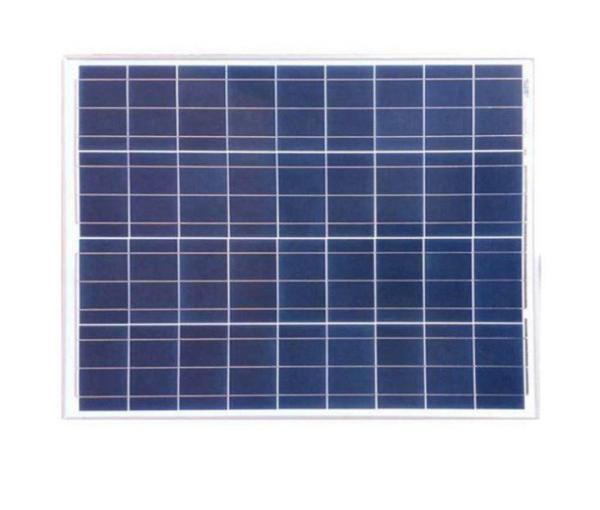

65W Polycrystalline Solar Panels 3.448A To 4.396A 70w Solar Panel
65W Polycrystalline Solar Panels 3.448A To 4.396A 70w Solar Panel
Specifications
Brand Name :
Leeque
Model Number :
YQPSP60W-80W
Certification :
TUV,IEC61215,IEC61730,CE,PV CYCLE
Place of Origin :
made in China
MOQ :
5
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
5000+pcs+per month
Delivery Time :
5-25days
Maximum Power at STC(Pmax) :
60W/65W/70W/75W/80W
Optimum Operating Voltage(Vmp) :
17.2V-18.2V
Optimum Operating Current(lmp) :
3.448A-4.396A
Solar cell efficiency(%) :
15.8-18.40
Operating Temperature :
-40℃ ~ 85℃
Maximum System Voltage :
DC1000V
Maximum Series Fuse Rating :
15A
Power Tolerance :
± 3%
STC :
Irradiance 1000W/㎡,25℃,AM1.5
Description

Polycrystalline Solar Modules60W-80W-YQPSP60W/65W/70W/75W/80W

Polycrystalline solar modules60W-80W

Power:60W/65W/70W/75W/80W

Certification:

Rigorous quality control meeting the highest international standards;

TUV,IEC61215,IEC61730,CE,PV CYCLE

Introduction:

Polycrystalline photovoltaic modules has high conversion efficiency and stable output performance.

Product Description:

  1. High-transmissivity low-iron tempered glass,strong aluminium frame using UV-resistant silicon;
  2. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies;
  3. High quality,strong aluminium frame,passing mechanical load testing 5400Pa and wind pressure 2400Pa;
Polycrystalline Photovoltaic Modules Parameter
Model YQPSP60W YQPSP65W YQPSP60W YQPSP60W YQPSP80W
Maximum Power at STC(Pmax) 60W 65W 70W 75W 80W
Optimum Operating Voltage(Vmp) 17.2V 17.2V 17.50V 17.8V 18.2V
Optimum Operating Current(lmp) 3.488A 3.779A 4.000A 4.213A 4.396A
Open-Circuit Voltage(Voc) 20.81V 20.81V 21.18V 21.54V 22.02V
Short-Circuit Current(Isc) 3.767A 4.081A 4.320A 4.551A 4.747A
Solar Cell Efficiency(%) 15.8 16.20 16.70 17.50 18.40
Solar Module Efficiency(%) 11.78 12.77 13.75 14.73 15.71
Operating Temperature -40℃ ~ 85℃
Maximum System Voltage DC1000V
Maximum Series Fuse Rating 15A
Power Tolerance ± 3%
STC 1000W/㎡,25℃,AM1.5
