Aluminum Alloy Wheel Casting Machine , Low Pressure Casting Machine 800 Kg Capacity
Aluminum Alloy Wheel Casting Machine , Low Pressure Casting Machine 800 Kg Capacity
Specifications
Brand Name :
BOQIAO
Model Number :
BQ-J458
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Supply Ability :
10 sets per mouth
Delivery Time :
60 days
Packaging Details :
Export standard packaging
Name :
low pressure casting machine
material :
carbon steel or cast iron
application :
aluminum alloy casting
Operationo system :
Siemens PLC and touch screen
hydraulic system :
Servo motor and Variable piston pump
furnace capacity :
800 kg
Cooling system :
16 route (water and gas)
Description

aluminum alloy wheel hub special low pressure casting machine

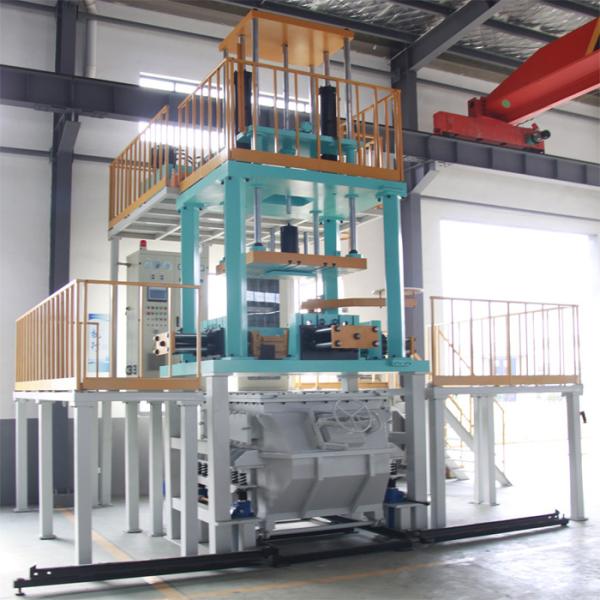

Aluminum Alloy Wheel Casting Machine , Low Pressure Casting Machine 800 Kg Capacity

Usage

Specially designed for aluminum wheeled disc hub casting

Product features introduction:

² Non-stick aluminum furnace structure, reduce oxidation loss

² Full digital servo hydraulic system, or variable frequency hydraulic system, saving more than 50%

² Mold 90° mounting or 45° mounting (reverse mounting)

² High precision pressure automatic control

² Fully automatic cycle

² Automatic cycle

² Automatic pickup

² high productivity

² High rigidity, high strength and high reliability

Technology parameter

No. Name Technical parameters Remark
1 Lower table plate size 2380×1600×120mm
2 Dynamic template size 1300×1100mm
3 The distance between the movable platen and the platen 600～1600mm
4 Maximum stroke of moving platen 1000mm
5 Ejection cylinder size 500×250×50mm
6 Dynamic template opening force 340 KN System pressure 12MPa
7 Mold clamping force 276 KN System pressure 12MPa
8 Top output 400 KN System pressure 12MPa
9 Side mold distance 800～1400 mm
10 Single side die mechanical adjustment +140mm
11 Side mold center height 165-300 mm
12 Single side die opening force 150 KN System pressure 12MPa
13 Single side mold clamping force 125 KN System pressure 12MPa
