aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
aluminum turbine shroud low pressure aluminum die casting making machine manufacture
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
BOQIAO
Certification :
CE/ISO9001
Model Number :
J452-2
Supply Ability :
20 Set/Sets per Month
Packaging Details :
Packaging details:One set per wooden case,or as required package
MOQ :
1 Set/Sets
Price :
negotiable
Delivery Time :
60 days
Condition :
New
Voltage :
380V
Power(W) :
33.5 kw
Dimension(L*W*H) :
1000*1000*900 working size
Weight :
5.6 ton
Product name :
Low pressure die casting machine
Application :
Precision aluminum die casting
Feature :
high strength and automatic
Material :
Cast iron QT500
Holding furnace capacity :
200 kg
Max temperature :
850 degree
Dimession :
Support customization
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Port :
SHANGHAI
Description

Product description:

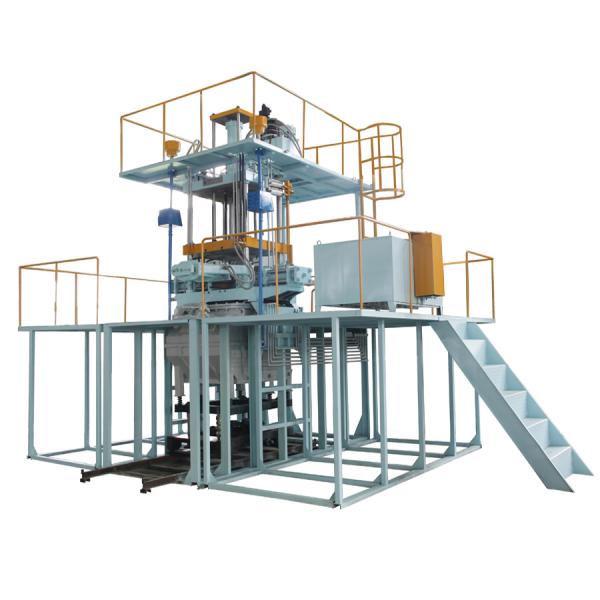

Low pressure casting machine details:

Producable product automobile wheel hub,engine cylinder head and block,compressor housing,structural component,motorcycle cylinder head and block and others,electric power fitting,fan impellers,shock absorbers,hydraulic pumps,brake pumps,valves,etc
Cast aluminum alloy material A356,A356.2,ZL101,ZL102,ZL105,ZL108,ZL111,6063......
Casting quality T6 heat treatment
Min installation mold diemension 1000*900*500mm
Hoilding furnace capacity 200kg,300kg,500kg,800kg,1000kg,1500kg......
Holding furnace variety Crucible type or molten pool type (optional)
Hydraulic system Common or servo system (optional)
Cooling system 8 routes,10 routes,16 routes
Safety lock structure Optional
Operation system Automatic and manual

Main produce process:

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

Packaging & Shipping

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

Note:Because our machine is big and heavy,we usually ship by FCL.

Low pressure casting dvantages:

1.Higher mechanical property,and it is 10% higher than gravity casting.

2.Casting surface smoothness is better.

3.Can put sand core or other metal material into the mold

4.Have no riser.Pouring gate is small,10-20% of total weight.But gravity casting is 40-60% of total weight.

5.Easy to achieve automation,the repeatability of product is good,low labour intensity.

6.Low defective index,can up to over 95% percent of pass

7.Low investment cost,not limited by the size of the product.

Our advantages:

1.Different configuration is optional according to customer output,product size,customer investment intention.Make the only and cost-effective configuration for customer.

2.Over 10 years industry experience.

3.Professional team to design manufacturing technique according required mechanical property.

4.High percent of pass,high efficiency,low energy consumption

5.Making feasibility analysis including machines cost,operation cost,construction cost.

6.Quick delivery time to help customer create profit.

Technical parameter:

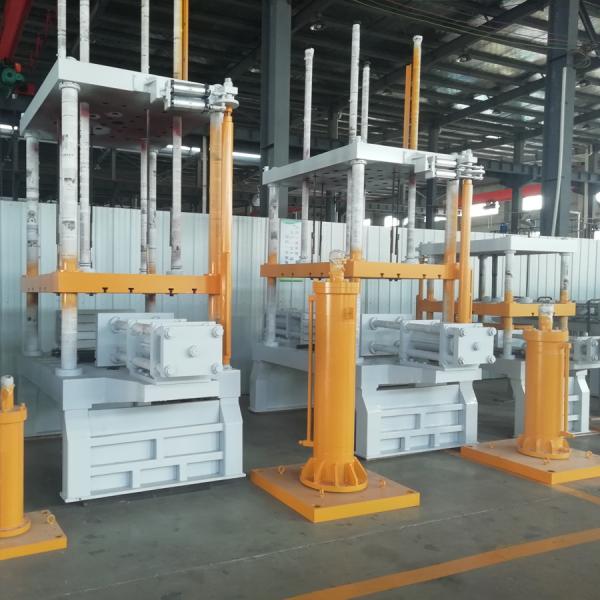

Other machines:

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

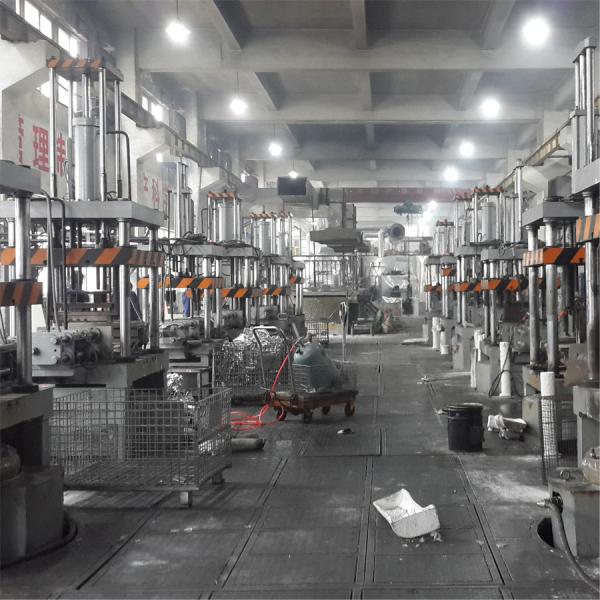

Company Photos:

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

aluminum turbine shroud low pressure aluminum die casting making machine manufacture

FAQ

Q:Are you manufacturer or trade company?

A:We are manufacturer

Q.What kind of products can be made with your machine?

A:Theoretically,our machine can produce the all aluminum casting with thickness over 4mm.But it is better to ensure after seeing drawings or samples.

Q:How to ensure that we can produce qualified products by your machine?

A:The solution is that firstly we check your product drawing or samples.If the product is ok,you pay 50% of mold price,we make mold for you.When the mold is made out,we try the mold and get the new samples.If the samples is qualified,you buy our machine.If no,we pay back you the all money.

Q:What is your delivery time?

A:Commonly,we deliver within 60 days.

Q:Can i visit your factory?

A:Sure,welcome you.

Our address:Nanjing city,Jiangsu Province,China.

Nearest airport:Nanjing LuKou International Airport

aluminum turbine shroud low pressure aluminum die casting making machine manufacture
