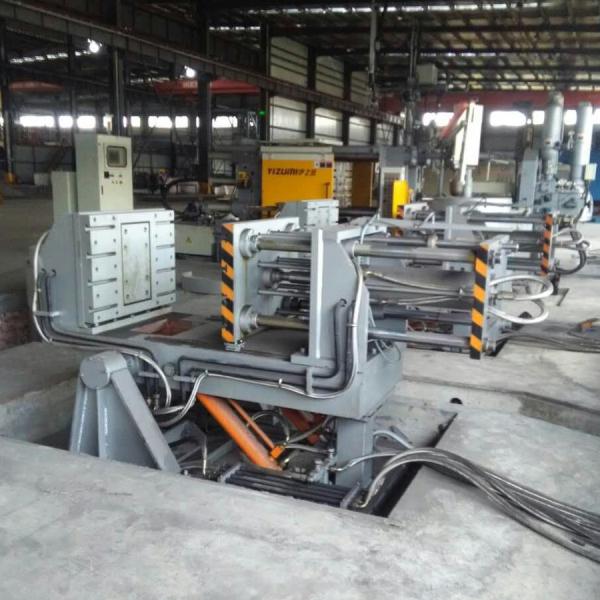

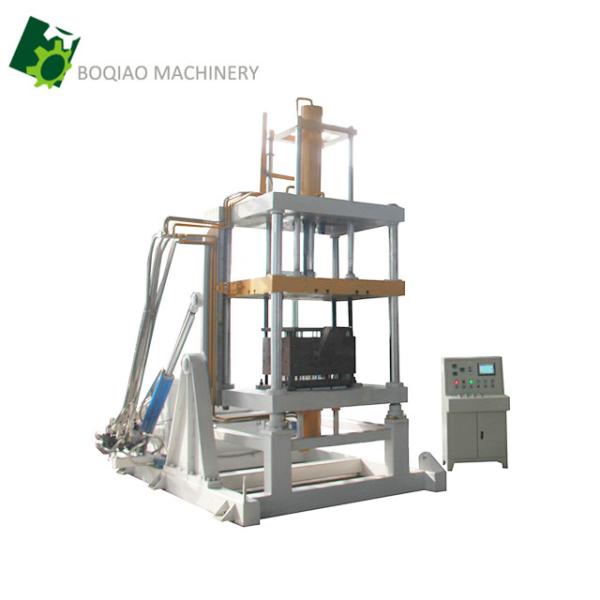

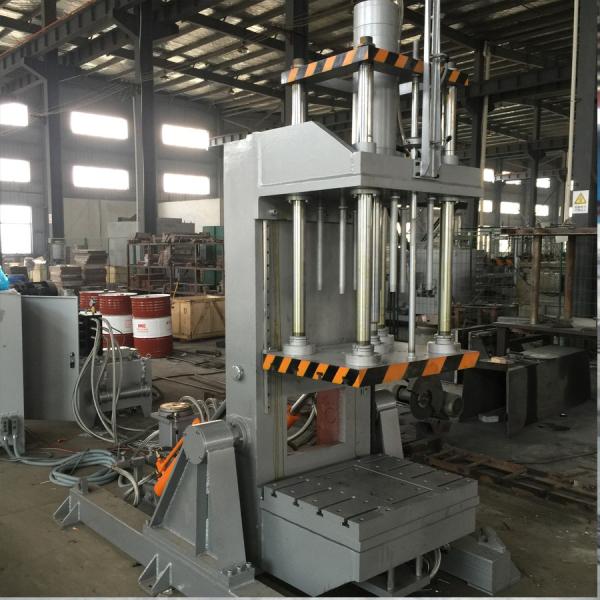

Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Tilting Gravity Die Casting Machine 7.5KW Power For Aluminum Die Casting
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
BOQIAO
Certification :
ISO9001 CE
Model Number :
BQ-J34-4
Supply Ability :
100 Set/Sets per Month
Packaging Details :
One pair per polybag,or as required package
MOQ :
1 Set/Sets
Price :
negotiable
Condition :
New
Voltage :
380V
Power(W) :
7.5KW
Dimension(L*W*H) :
Customized Dimension
Weight :
4.2ton
Warranty :
1 Year
Application :
Casting Industries
Usage :
making sand core
Feature :
High Efficency
Type :
casting machine
Color :
OEM
Design :
OEM & ODM
Name :
TOP Sale Automatic Tilting Gravity Csting Machine Price for Sale
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
SHANGHAI
Description

tilting gravity die casting machine for aluminum die casting


Compared to sand casting, metal casting has the following

advantages:
1. The metal type has large thermal conductivity and heat capacity, the cooling rate of the molten metal is fast, the structure of the casting is dense, and the mechanical properties are higher than that of the sand casting. For example, the tensile strength of the aluminum alloy casting can be increased by 10%-20%, and the elongation is improved doubled.
2. Can obtain castings with high dimensional accuracy and good surface quality.
3. It can produce castings with complex internal cavity structure, such as engine block, cylinder head, wheel hub and so on.
4. Easy to automate and mechanize, high production efficiency

Parameter

Unit

ZJ750

ZJ860

ZJ1210

Dual active plate size

mm

700*500

800*600

1200*1000

Main mold opening and closing stroke

mm

600

600

800

Main model hydraulic cylinder bore

mm

150

150

200

Secondary mold opening and closing stroke

mm

100

100

150

Auxiliary mold hydraulic cylinder bore

mm

150

150

200

before and after the additional cylinder template size

mm

300*400

300*400

500*600

before and after the additional mold stroke

mm

150

150

200

before and after the cylinder bore

mm

125

125

180

the main mold vice mold minimum closure and maximum open Distance

mm

400*1100

500*1200

900*1600

tilt angle

°

0-90

0-90

0-90

tilt cylinder bore

mm

100

100

150






















Product tags

gravity die casting machine

,

gravity die casting machines

,

gravity die casting work
