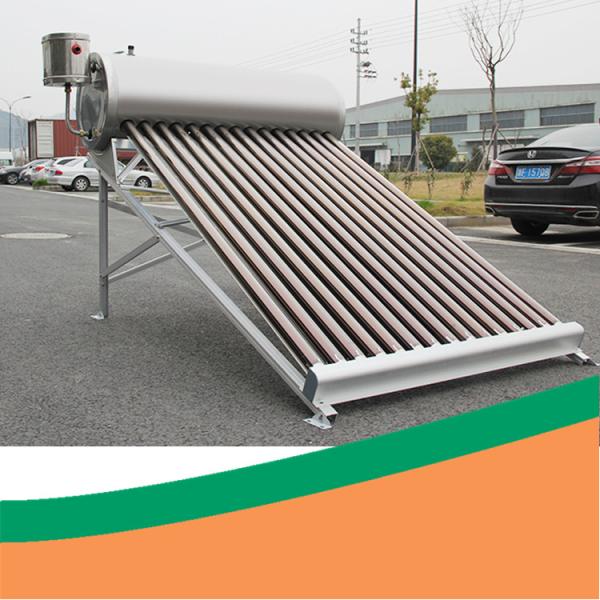

compact babysun solar outdoor solar water heater low pressure solar water heater
(1) Product Description

There are two types of outdoor solar water heater on the market

FPC (flat plate collector) system: the flat plate collector system is a metal system. The outdoor solar water heater consist of an insulated metal box covered with armoured glass. There is a layer of copper on the metal box, which can absorb heat well.The copper plate is also coated with a black coating to improve heat absorption.The metal box contains copper tubes arranged vertically and connected by two horizontal copper tubes (called header) at the top and bottom. Cold water enters the collector (golden box) from the bottom pipe and then rises into the vertical pipe. outdoor solar water heater is heated in a vertical pipe. As the water is heated, it becomes lighter (hot water is lighter than cold water), and the water rises and is collected into the storage tank through a top horizontal pipe (or header). Now you can use the water.

(2) Technical Specification:
Solar Water Heater Inner Tank:
SUS304 stainless steel, 0.4/0.5mm, diameter :360mm
Solar Water Heater Out Tank: stainless steel/painted steel 0.4mm, diameter: 460mm
Insulation: 50mm high-density polyurethane foamed
Inlet&Outlet: 3/4”, stainless steel
Vacuum Tube: 58mm-1800mm
Water Tank Bracket: stainless steel/painted steel/aluminum alloy, 1.2/1.5/2.2mm , stainless steel 304 screws & nuts

(3) Optional Accessories and their Function:
Assisytant tank: to add water automatically;
Electric heater: to heat water when rainy and cloudy days;
Magnesium anode: to soften water in hard water area;
TK-8A/TK-7/TK-5 digital controller: to read and control water temperature and water level

(4) Our Advantage:
1. Solar water heater with assistant tank modelnew design side assistant tank for hard water area;
2. Non-welding technology

(5) Application:
The main use is for family use, such as bathing, cloth washing and so on.
Solar water heater with assistant tank model is widely used in apartment, hotel and school.
Also it can be used for swimming pool, farm.

(6) FAQ
1- What is your Delivery Time?
LCL order/Sample order: within 7 days.
Full container order: 7-14days.
2- What is your Guarantee Time?
5 years.
Provide you with 1%-2% extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES.
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 set.
6- What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality standard export carton.

7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
10000 sets.
9- What is your Shipping Term?
By Sea/Air/Rail.
