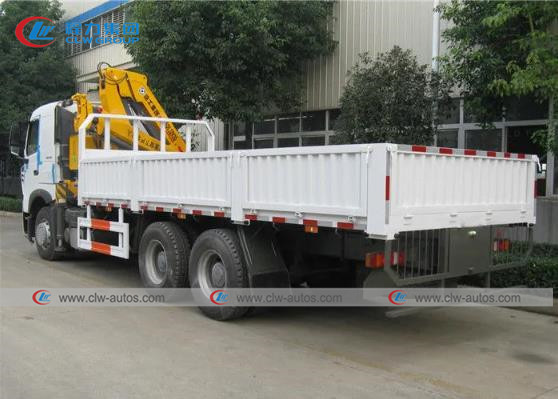

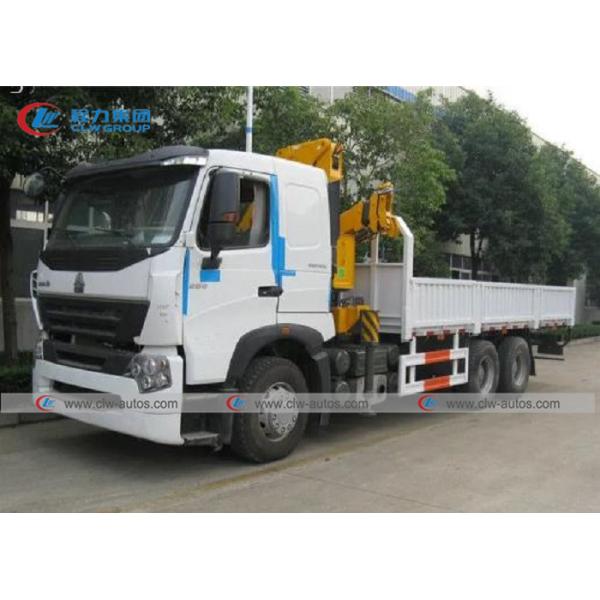

Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane
Specifications
Brand Name :
CLW
Model Number :
CLW5076BPS
Certification :
CCC, ISO, BV, SGS
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Packed with Wax
Chassis Brand :
Dongfeng, Sinotruk Howo, Foton, FAW, JAC, JMC, ISUZU, etc.
Engine Brand :
Wd615.69, 336HP
Gearbox :
Fast, 10forwards and 2reverse
Crane Brand :
SANY, XCMG, CHENGLI, etc.
Crane Capacity :
6.3ton, 8ton, 10ton, 12ton, 14ton, 16ton, etc.
Crane Boom Type :
Straight Telescopic Crane, Knuckle Crane
Boom Type :
Knuckle 3-Arm Telescopic Boom
Cargo Material :
Q235 carbon steel
Cargo Thickness :
Side 2mm, Bottom 3mm
Warranty :
1 year
Description

Sinotruk HOWO 6*4 Truck Mounted with 6.3t Knuckle Boom Crane 7t 8tons Folded Arm Crane Truck

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

Vehicle Main Dimensions Overall dimensions (L x W x H) mm 9800×2500×3718
Carriage Size (L x W x H) mm 7100×2326×600
Wheel base (mm) 4325+1350
Wheel track (front/rear) (mm) 1500/2625
Approach/Departure angle(°) 16/15
Weight in KGS Curb Weight 13870
payload 25000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 90
Engine Brand Sinotruk
Model WD615.69
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 336 HP
Emission standard Euro 2
Gearbox HW19710,10 Forwards gear & 2 reverse gear.
Steering ZF8098, from Germany,
Tire 12R22.5 tubeless radial tires, 11pieces including one spare
Clutch Reinforced diaphragm clutch, diameter 430 mm
Crane specifications Brand : CLW or SANY or other brands
Type: Knuckle
Max lift capacity: 8000 kg
Max working radius 12.5 m, Max lifting height : 10m2
TYPE Max Lifting Capacity Max Lifting Moment Recommend Power Needed At Recommend Oil Flow Max Oil Flow of Hydraulic System Rated Pressure Of Hydraulic System Oil Tank Capacity Rotation Angle Crane Weight Installation Space
SQ8ZK3Q 8000KG 16
T.M		 28
KW		 40
L/MIN		 28
MPA		 160
L		 All Rotation 2970
KG		 1150
MM

Reference Photos

Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane

Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane

Sinotruk HOWO 6*4 Truck Mounted 6.3T Knuckle Boom Crane


Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
