Specifications
Brand Name :
CLW /Weiyu Brand
Model Number :
CLW5168JSQ
Certification :
CCC, ISO
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Supply Ability :
350 units/month
Delivery Time :
10-20 Work Days
Packaging Details :
Nude Pack with Waxing
Brand :
Dongfeng
Engine Brand :
Cummins
Engine Capacity :
170HP or 190HP
Displacement :
5900ml/cc
Emission Standard :
Euro 2, Euro 3
Gearbox :
FAST 8Forward & 1 Reverse
Crane Brand :
6Ton
Type :
Straight Arm
Box Size :
5800x2200x550mm
Description

1Ton Platform Lifting 6Ton Dongfeng Kingrun Crane Truck in Telescopic Straight Arm

Major Specification:

1. Truck Brand: Dongfeng Brand, 170HPCummins Engine, FAST Gearbox, 9.00R20 Tire

2. Crane: 6Ton Crane, Straight arm, CLW Brand or XCMG, SANY Plafinger.

3. Box: 5600x2200x550m, Carbon Steel, 2mm side, 3mm bottom

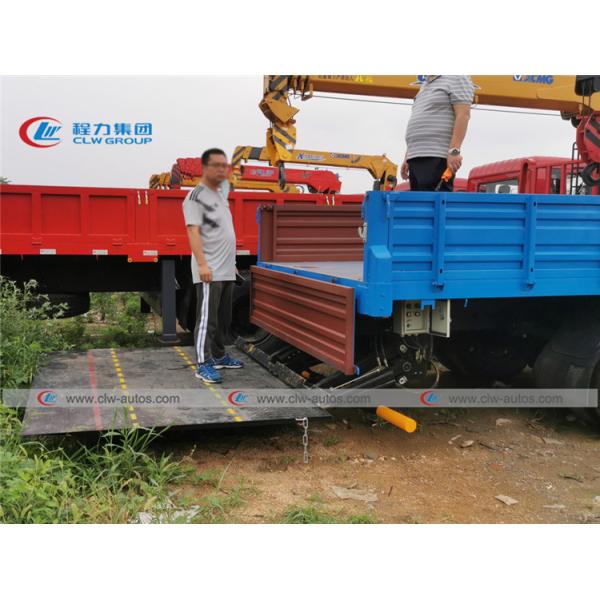

4. Lifting Platform: Hydraulic Control,1Ton to 2Ton Lifting Capacity.

5. Fuction: equipment delivery, electrical pole delivery, etc


Product Specification

General Description
Overall Dimension(mm) 8600×2490×3650 Cargo body size 5600*2200*550
Gross Weight Appro* 12000Kg Driving type 4*2, left hand drive
Curb weight Appro* 6120Kg Rated loading capacity kg 6000
Wheel base (mm) 3950 mm Axle number 2
Approaching/Departure Angle(°) 23/20(°) F/R Axle load(kg) 3600/7650
Passengers in cab 3 Maximum speed(km/h) 90
Number of Tires 6 (1 spare piece) Tyre type 9.00-20
Front/Rear suspension(mm) 1250/2650 Front/Rear track base (mm) 1920/1860
Transmission 6 Forward with 1 Reverse, manual Fuel type Diesel oil

Engine parameters
Brand Cummins Model B170-33
Displacement (L) 5.9 L Emission Standard EURO III
Max Power Output 125 kw Horse power 170HP
Number of cylinders 6 Cylinder spread pattern In-line

Intake type
In line
Rated rotation(rpm)		 2500
Crane Model(5 Ton 3 telescopic arms crane) SQ5SA2 Unit
Max Lifting Capacity 5000 kg
Max Lifting Moment 12.5 T.M
Recommended Power 20 KW
Recommended Hydraulic Flow 40 L/min
Rated hydraulic Pressure 20 MPa
Oil tank capacity 100 L
Crane Weight 2200 kg
Installation Space 900 mm
Rotation Angle 400° °
lifting capacity table
Working radius(m) 2.5 3.95 6.3 8.65
Rated loading(kg) 5000 2250 1450 1000

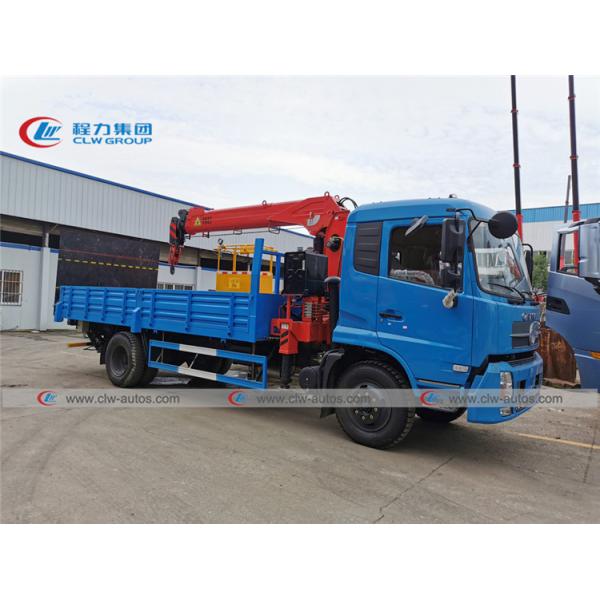

Truck Photos:

6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform6MT Dongfeng Boom Crane Truck With 1 Ton Hydraulic Platform
