50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
Specifications
Brand Name :
CLW /Weiyu Brand
Model Number :
CLW5020XLCS5
Certification :
CCC, ISO
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Supply Ability :
500 units/month
Content :
lpg gas
Tank Capacity :
50000 Liter
Loading Weigh :
20Ton to 25Ton
Axle :
3 Axle
Axle Brand :
FUAW or BPW
Suspension :
Leaf Spring
Tire :
12R22.5
Tank Material :
Q345R, Q370R
Design Pressure :
16.1Mpa
Description

50CBM 20Ton Propane Gas Transport Tank Semi Trailer with Rochester level Gauge

Description:
1. Tank Design Standard of 25tons lpg tanker trailer : Chinese GB Standard or American ASME Standard.


2. Factory direct exporting, with high quality and lower price.


3. We have the biggest LPG trailer and LPG truck in the world:
a. we have the biggest LPG trailer in the world, the max. volume is 61.9 cbm; low transport costs, more profit.
b. we have the biggest 8x4 LPG truck in China, the max volume is 37cbm;
c. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
d. we have mobile filling station from capacity 5cbm to 120cbm.


Specification

Tanker Essential Information
Volume of Tank (cbm) 49.6
Overall Dimensions(L*W*H)(mm) 12740*2480*3800
Tank Dimensions(Inner Diameter*thickness*Length) 2300*12*12354
Estimated Tare Weight (kg) 15300
Payload(kg) 20832
Total Weight(kg) 36132
Wheelbase(mm) 6800+1320+1320
Shell of Tanker
Products Liquefied Petroleum Gas (propane)
Fluid Property Flammable
Design Temperature(ºC) 50ºC
Design Pressure(MPa) 1.61
Corrosion Allowance(mm) 1.00
Weld Joint Factor 1
Major Materials of Bearing Pressure Tanker body:Q345,12mm,
End plate:Q345R,12mm
Main beam:16Mn
Detection
Heat Treatment Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection 100% Flaw detection
Test Pressure(MPa) 1.61
Hydraulic Test(MPa) 2.1
Magnaflux Inspection Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity 1;on top
Size DN450
Safety Valve(As Customer's Requirement)
Quantity 2
Location On the top of tanker
Size DN80
Level Gauge
Type Manuel Switch type
Location At the rear of the end dish
Running System
Axles 3*13T BPW
Tire 12R22.5 Tubeless tire ,8 with one spare tire
Landing leg JOST
King Pin #50 or #90

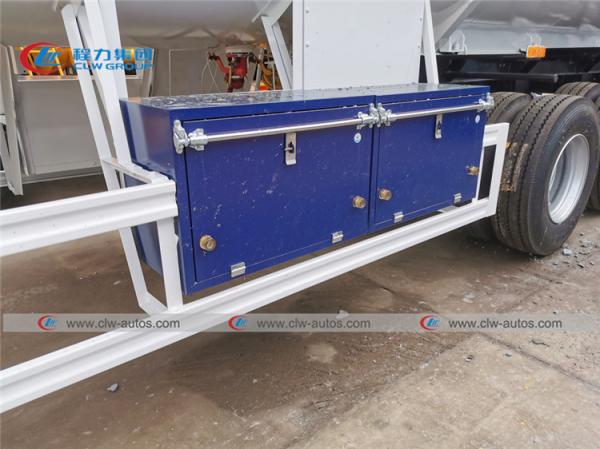

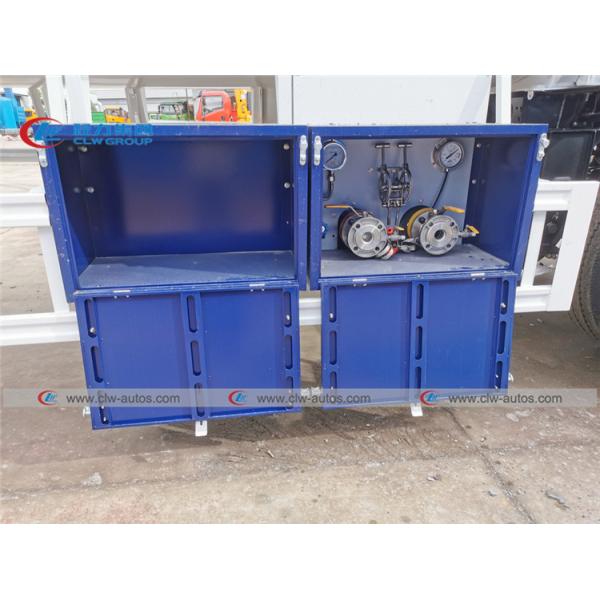

Control System
Emergency Cut-off Valves 2 or 3
Ball Valve 4 or 6
Liquid Gauge 1
Pressure Indicating Thermometer 1
Pressure Gage 1

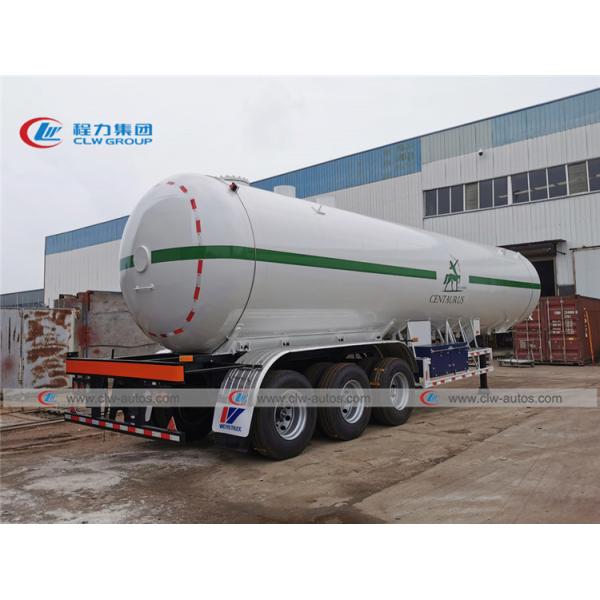

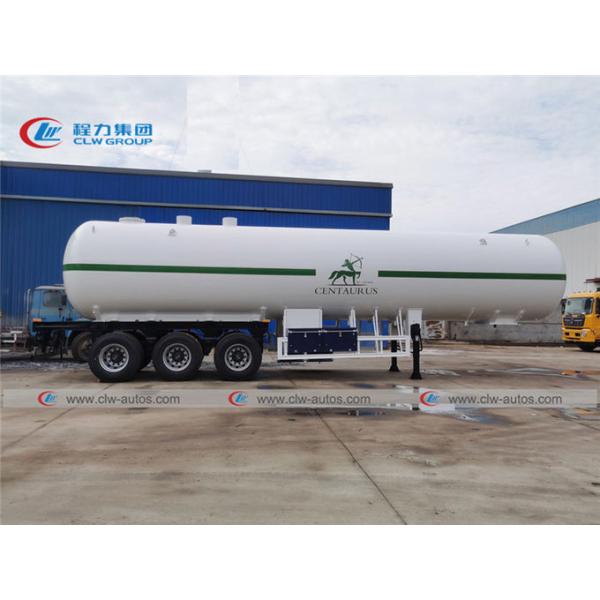

Trailer Photos

50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge

50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge50cbm 20 Ton LPG Gas Tanker Truck With Rochester Level Gauge
