Specifications
Brand Name :
CLW /Weiyu Brand
Model Number :
CLW5090JSQ
Certification :
CCC, ISO
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Supply Ability :
350 units/month
Delivery Time :
10-20 Work Days
Packaging Details :
Nude Pack with Waxing
Brand :
ISUZU
Engine Brand :
ISUZU
Engine Capacity :
350HP
Displacement :
5900ml/cc
Emission Standard :
Euro 2, Euro 3
Gearbox :
FAST 12 Forward & 2 Reverse
Crane Brand :
16Ton
Type :
Straight Arm
Box Size :
8600x2200x550mm
Box Material :
Q235
Material Thickness :
3mm Side, 4mm Bottom
Crane :
Straight Arm
Description

ISUZU GIGA 16Ton Straight Boom Arm Crane Truck for heavy duty equipments delivery

Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

eneral Technical Parameters
Overall Dimension 11980×2500×3980 (mm)
Gross Vehicle Weight 24900(Kg)
Curb Weight 15800(Kg)
Chassis Specification
Chassis Brand ISUZU
Drive model 8*4
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3
Engine Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
231KW/315HP
Emission standard EURO 4
Displacement 8300(ml)
Fuel type Diesel
Gearbox 9Forwards & 1Reverse
Brake System Air break
Wheel Base 1850+4600+1400 mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification
Cargo Body Dimension 8600×2300×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Working System Boom Type Straight 4-Arm telescopic boom
Crane Crane Brand XCMG or SANY or CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 16000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

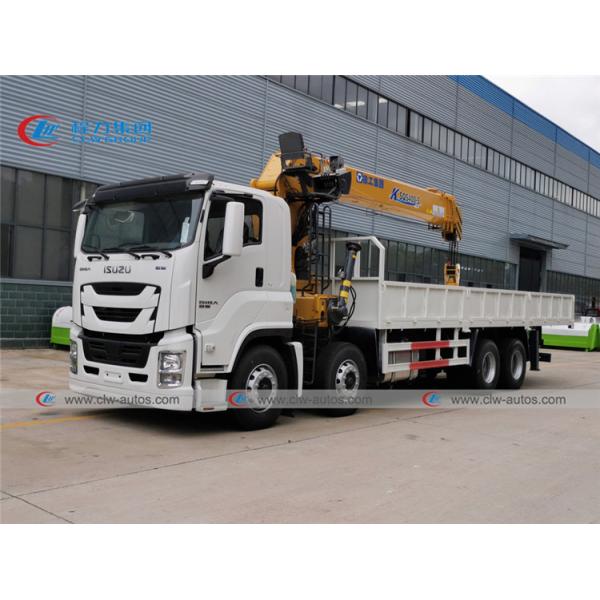

Truck Photos:

Isuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo BoxIsuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo BoxIsuzu Giga 16t Xcmg Straight Boom Crane With 8 Meter Cargo Box
