North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500
Specifications
Brand Name :
CLW
Model Number :
CLW5165SQXWC
Certification :
ISO, CCC
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
18520 usd/unit~49660 usd/unit
Payment Terms :
L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package shipped by bulk ship
Truck brand :
Dongfeng,Shacman,Sinotruk howo,CAMC,FAW,ISUZU Septic cleaning truck
Driving model :
LHD,RHD Septic cleaning truck
Engine :
Diesel engine Septic cleaning truck
Material :
Q235 carbon steel Septic cleaning truck
Tanker size :
10000Liters 10Tons 10m3 3000 gallons Septic cleaning truck
Loading capacity :
5tons 6tons 8tons 10tons Septic cleaning truck
Thickness of tanker :
5mm or 6mm Septic cleaning truck
Vacuum pump :
Chinese pump,BP,Jurop,Moro Kaiser Septic cleaning truck
Suction Depth :
8 meters Septic cleaning truck
Suction distance :
50~100 Septic cleaning truck
Medium :
sewer/sludge/septic suction Septic cleaning truck
Description
North Benz Beiben 10000Liters 3000 gallons 10Tons Vacuum Septic Sewer Cleaning Truck with Battioni Pagani MEC13500

Description--septic cleaning Truck(also called sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
septic cleaning Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature
- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;
---Quality chassis , perfect performance
---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
---Nice shape , rational structure
---Massive, durable ,perfect performance
---Prolonged service time

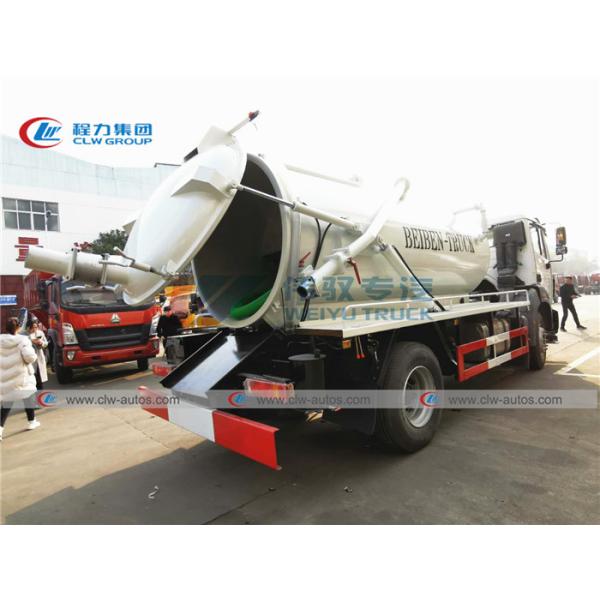

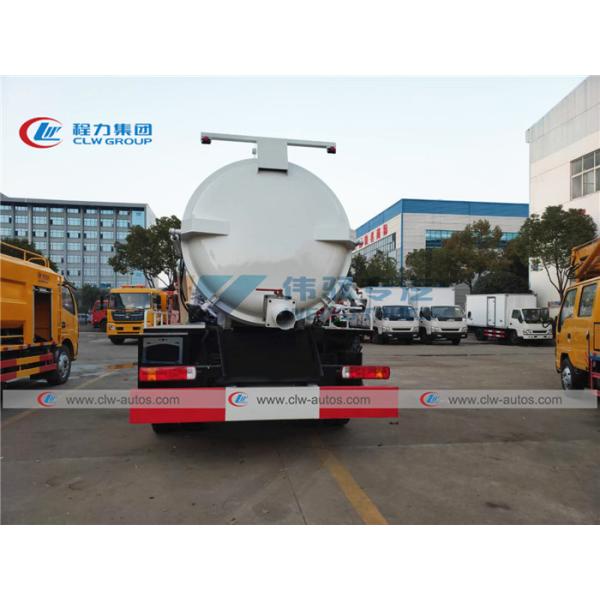

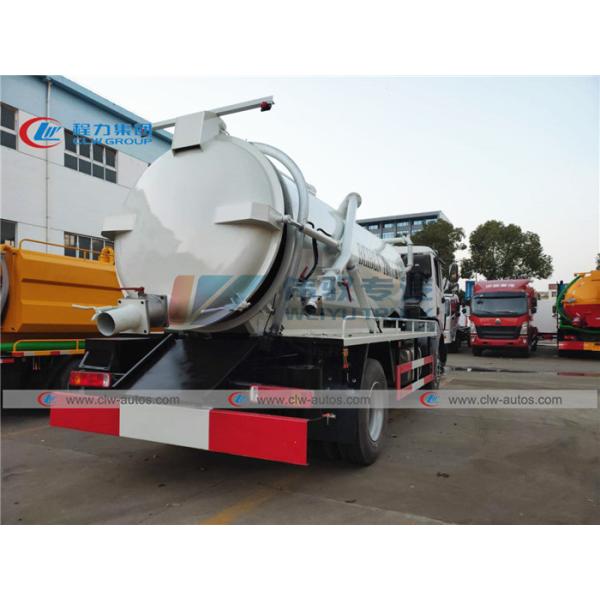

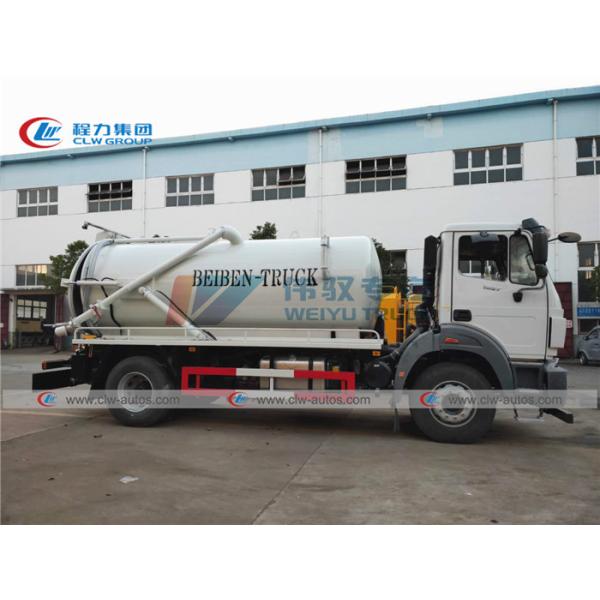

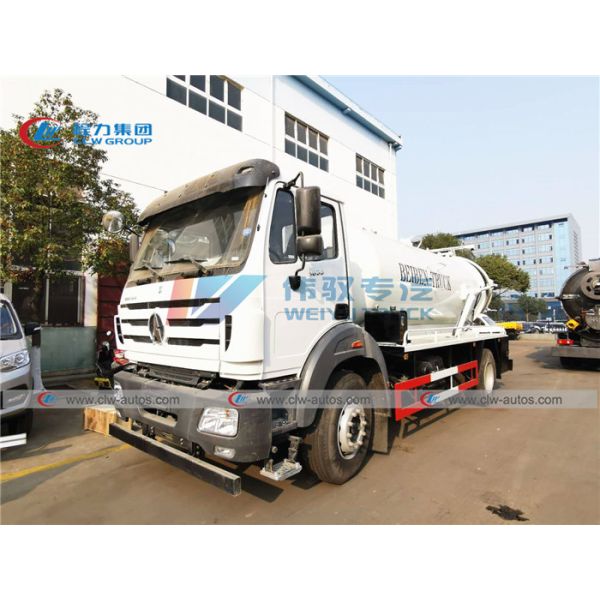

Reference picture of North benz septic cleaning truck wih BP MEC13500 pump

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

Howo 8000liters sludge tanker truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500


Specification

Product Technical Specifications
Item Descriptions Spesifications and Types
Vehicle Brand north benz
Overall Dimensions L*W*H 8665*2500*3580mm
Weights GVW. 16,000kgs
Kurb Weight 9170kgs
Rated Payload 6700kgs
Chassis Chassis Brand North-benz
Drive Type 4×2
Steering LHD or RHD
Engine Brand Weichai engine
Power 340HP
Emmission Level EURO II or Euro III or EURO IV
Performance Max. Speed 80km/h
Wheel base 4800 mm
Tyre Specifications 12.00-20 16PR,12.00R20 16PR,11.00-20
No. of Tyre 6 pcs (1 spare tyre included)
Cab Cab Capacity 2 persons allowed
Body/Superstructure Tank Capacity 10 m³
Material 5mm or 6mm high quality carbon steel
Vacuum pump BP MEC13500 vacuum pump
Vacuum rate 93% thorically
Suction head 6m
Rotation speed 500 rpm,low noise,high efficiency
Basic
Equipments

Install vacuum pumps and hydraulic systems driven by engine

through PTO.

One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand

washing tank and a piece of 6m suction hose
Paint Tank color is according to client’s requirements.
Optional Equipments Italy vacuum pumps
Stainless steel tanker material
Anti-rust coating inside tank

Structure of a Vacuum septic cleaning truck

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

Why do you choose us for vacuum septic cleaning truck?

1.well experienced truck production company to offer high quality and competitive-price septic cleaning truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive howo 290hp 10,000liters septic cleaning truck

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

Right hand drive FAW J5 10,000liters septic cleaning truck

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

Left hand drive Old dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

North Benz Beiben 13000 Gallons Sewer Cleaning Truck With Battioni Pagani MEC13500

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
