High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine
Specifications
Brand Name :
CLW
Model Number :
CLW5256GS
Certification :
ASME,CCC,BV,SGS
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit/Month
Delivery Time :
30-35 working days
Packaging Details :
naked,waxed,bulk ship,ro-ro
Tank Material :
Q345r or Q370r, Q420r
Loading Capacity :
5t, 5ton, 5tons, 5mt
Tank Size :
10m3, 10cbm, 10000liters, 10000L
Thickness :
10.0mm
Design Pressure :
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure :
2.21MPa 22.1bar
Liquid Line :
2''/Dn50
Gas Line :
2''/Dn50
Stop Valve :
China Local Brand
Pressure Gauge :
China Local Brand
Thermometer :
China Local Brand
Level Gauge :
China Local Brand
Needle Valve :
China Local Brand
Color :
White/Blue/Yellow/Blue/Customized
Life Time :
20 Years
Description

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

Product Description

LPG bobtails (also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. lpg bobtails is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for lpg bobtails :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtails : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L lpg bobtails

3) Function of lpg bobtails: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of lpg bobtails : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Spec of lpg bobtails : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

Product Specification

​

Items Descriptions Specifications and Types
General Truck Name LPG dispenser truck
  Truck Model CS
  Drive Type 4*2
  Gross Vehicle Weight(kg) 7495
  Curb Weight (kg) 4990
  Overall Dimensions(mm) 5900*2045*2600 mm
Engine Engine Brand Chao Chai
  Modle CY4100Q
  Fuel Type Diesel
  Power 95HP/70KW
  Emission Standard Euro III
  Displacement(ml) 3856
  Engine Type Diesel Engine,Water cooled, Four Stroke, ,4 Cylinder in line.
Chassis Cab Single row cab
  Tire 7Nos x 7.00-16 tire
  Wheelbase (mm) 3300
  Axle No. 2
  Gear Box 5 speed forward with 1 reverse, manual
  Brake Air brake
  Steering Wheel Left hand drive with power-assisted
Tank Filling Medium LPG(Propane)
  Tank Volume(L) 5000
  Filling Mass(KG) 2500
  Cylinder Design Thickness(mm) 10
  Head Design Thickness(mm) 10
  Tank Material Q345R high tension carbon steel, 8mm Thickness Tank Body.
  Density of Medium(kg/m3) 420(50°)
  Design Pressure(Mpa) 1.77
  Hydrostatic Test Pressure(Mpa) 2.66
Equipment for the tank pressure gauge, thermometer ,discharge valve, Safety Valve, Level Gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape.
Refilling system
Pump Medium:Liquid petroleum gas
Speed:15m3/h
Input and Output Diameter:50 mm
Working pressure:2.0 Mpa
Working temperature:-40ºC- 50ºC
Material:carbon steel
Dispenser Directly Fill Cylinder or Tanker
Nozzle Flow Rate: 10 - 60 liter/min
Max Working Pressure: 2.5 Mpa
Working Temperature: - 30 ~ + 55 ºC
Filling gun with pipe 1 unit filling gun, 15m filling pipe

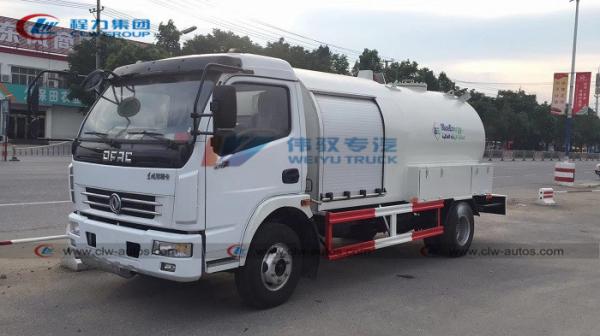

​Reference Photos

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

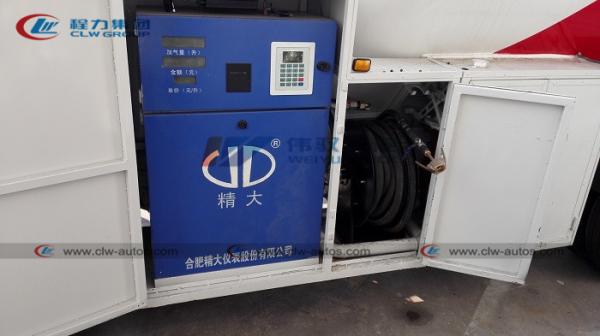

Two Types of Dispenser for Optional
High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

Manufacturing Process

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

High Quality Dongfeng 5000L 5cbm 5m3 LPG Refueling 2.5mt 2.5tons Delivery Mobile Tanker Truck with Dispenser Machine

Sales Service

1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products?

A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
