Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Full Computer Control Forland 4X2 Aerial Platform Truck
Specifications
Brand Name :
CLW
Model Number :
CLW51KW
Certification :
CCC,ISO,SGS,BV
Place of Origin :
Suizhou,China
MOQ :
1
Price :
negotiable
Payment Terms :
D/A, D/P, Western Union, MoneyGram
Supply Ability :
600Unit Per Month
Delivery Time :
35-40 Days
Packaging Details :
Naked Pack with Wax
Chassis brand :
Dongfeng,ISUZU,JAC,JMC,Forland,Foton
Lifting height(m) :
10m, 12m, 14m, 16m
Operating height(m) :
12m, 14m, 16m, 18m
Control mode :
Control handle/Remove control
Drive model :
4x2; 4x4; As per upper design and customer request
Color :
Red/Yellow/Blue/Green/Optional
Description

Forland 12-16 Meters Aerial Platform Truck Truck Mounted Aerial Work Platform Aerial Bucket Truck

Description

  1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  3. Full Computer Control System with Danger Waring System.
  4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
  5. Rectangular Shape Arms to Increase the Arm Strength.
  6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Specifications

AERIAL PLATFORM TRUCK

General

 Descriptions Specifications and types
Truck Brand CLW
Chassis Brand Foton forland
Approx. Dimension 8200*2320*3120 mm
GVW./Kerb Wt. 6495 /6300 kg
Cab Cab Capacity 3 persons' seat
Air Conditioner Air Conditioner is optional
Chassis Drive Type 4X2,LHD or RHD
Fuel Type Diesel
Engine Make & Model Chaochai engine
Power 120 HP / 88 KW
Displacement 3856ml
Emission Standard Euro II or EURO III
Wheelbase/No.of axle 3800mm / 2
Tyre Specfication 7.50-16,7.50R16,8.25-16,8.25R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Automative metallic paint
Superstructure Max working height 12-16M
Working cage 200kg capacity
Beam Hydraulic control
Slewing 360 continuous rotation
Equipments

Four hydraulic outriggers are equipped, stable and reliable

Dual control system both in the working cage and on the deck.

Safety device: relief valve, balance valve, double way hydraulic lock ,

motor emergency system

Insulated aerial platform ,hoist hook with cables optional

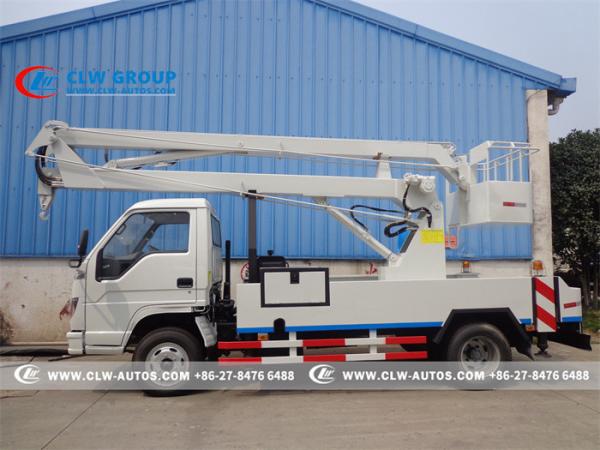

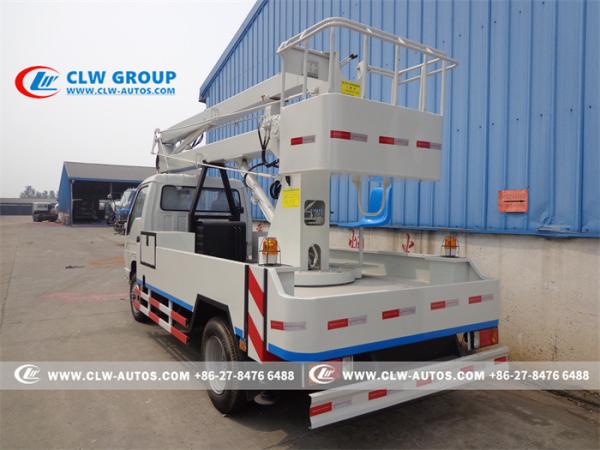

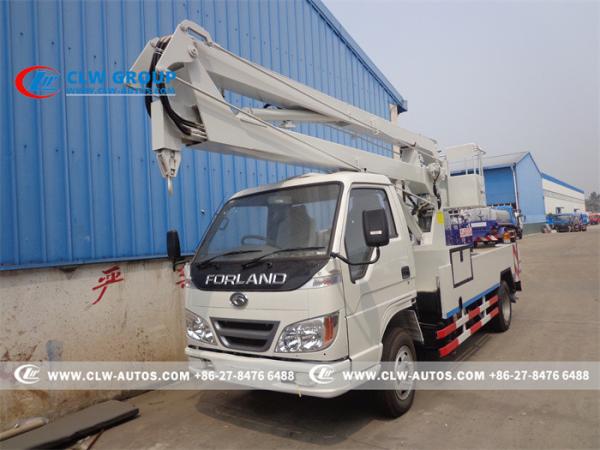

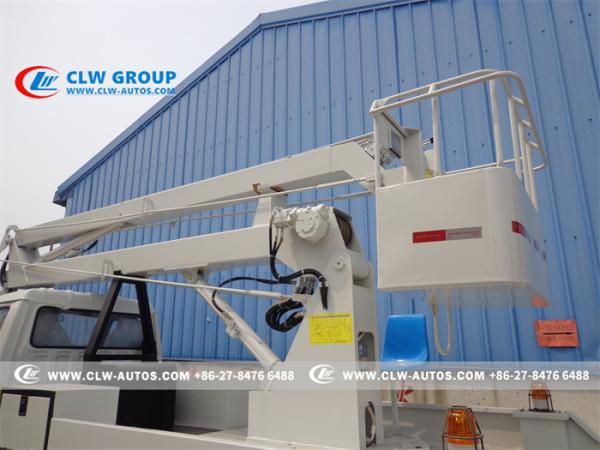

Reference photos

Full Computer Control Forland 4X2 Aerial Platform TruckFull Computer Control Forland 4X2 Aerial Platform Truck

Working show

Full Computer Control Forland 4X2 Aerial Platform Truck

Full Computer Control Forland 4X2 Aerial Platform Truck

Full Computer Control Forland 4X2 Aerial Platform Truck

Bulk orders

Full Computer Control Forland 4X2 Aerial Platform Truck

Factory overview

Full Computer Control Forland 4X2 Aerial Platform Truck

Full Computer Control Forland 4X2 Aerial Platform Truck

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?


A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied truck mounted aeriel platform to any overseas companies?


A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
