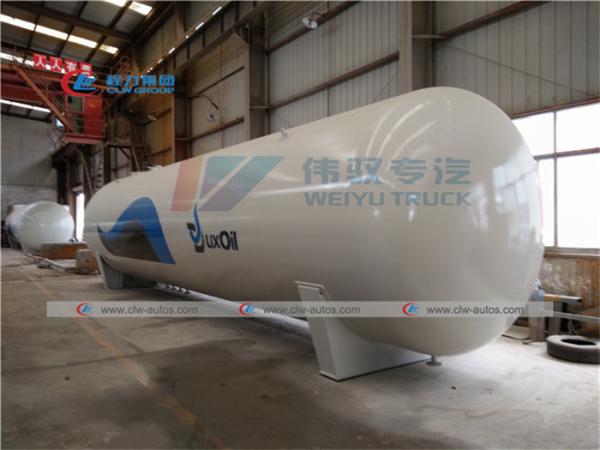

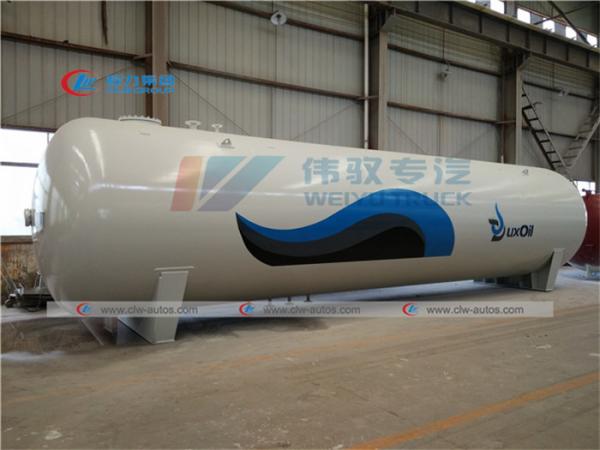

Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Specifications
Brand Name :
CLW
Model Number :
ASME,CCC,SGS,BV
Certification :
CLW9520
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
20~30 days after receiving deposit
Packaging Details :
Naked Package,Bulk Ship,Roll-Roll
Size Option :
40tons,40mt,80cbm,80m3,
Materail :
Carbon Steel Q345R
Filling Medium :
Propane,butane
Tank Diameter :
DN2400mm
Design Pressure: :
1.77Mpa
Level Gauge :
China Brand Megnatic Type or US brand Rocheseter
Tank Valves :
Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc..
LOGO :
As per request
Service time :
15 years
Description

Cylinder Refilling Propane Gas Tank 40tons LPG Storage Tank For Gas Filling Plant

Product Description

1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.

3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.

5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

6.Maintenance-free operation with simple calibration and proof testing.

7.20 years guarantee against manufacturing defects.

40CBM LPG TANK DIMENSIONS
Volume of Tank80 CBM
Filling Weight31920 kg
Tank Weight17000kg
Thickness of Shell (mm)16 mm
Thickness of End plate (mm)1 mm
Tank Diameter (mm)3100 mm
External Dimensions (mm) (length x width x height)11166 x 3132X3722 mm
Material of Tank and Main Pressure PartsCarbon Steel Q345R
Filling MediumLiquefied Petroleum Gas ( Propane)
Design Pressure1.77 MPa / 17.7Bar
Corrosion Allowance1 mm
Medium Density500 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
ItemSpecificationQuantity
Discharge PipeDN801
Inflow PipeDN801
Gas phase balance pipesDN502
Drain HoleDN501
ManholeDN4501
Air-out PipeDN501
Safety Valve PipeDN802

Safety Accessories (Included in the quotation):
Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge.
Gas filling station design in Nigeria
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Filling house for cylinders
Cylinder 40 Tons LPG Storage Tank For Gas Filling Plant
Key words: 40tonsLPG storage tank, Propane gas tank, LPG gas tank, Gas filling plant
