ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5044WYXWC
Certification :
ISO, CCC
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
12820 usd/unit~32850 usd/unit
Payment Terms :
L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package shipped by bulk ship
Truck brand :
ISUZU,Dongfeng,Shacman,Sinotruk howo,CAMC,FAW Septic Tank Cleaning Truck
Driving model :
LHD,RHD Septic Tank Cleaning Truck
Engine :
Diesel engine Septic Tank Cleaning Truck
Material :
Q235 carbon steel Septic Tank Cleaning Truck
Tanker size :
2cbm 3cbm 4cbm Septic Tank Cleaning Truck
Loading capacity :
2tons 3tons 4tons 5tons Septic Tank Cleaning Truck
Thickness of tanker :
5mm or 6mm Septic Tank Cleaning Truck
Vacuum pump :
Chinese pump,BP,Jurop,Mono Kaiser Septic Tank Cleaning Truck
Suction Depth :
7meters Septic Tank Cleaning Truck
Suction distance :
50~100 meters Septic Tank Cleaning Truck
Medium :
sewer/sludge/septic suction Septic Tank Cleaning Truck
Description
ISUZU 2000Liter Water 4m3 Sewage Tank Vacuum Sewer Jetting Septic Tank Cleaning Truck

Description--Septic Tank Cleaning Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Septic Tank Cleaning Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Structure of septic tank cleaning truck:
The sewage cleaning truck is mainly composed of chassis + tank body + sandwich power take-off + high pressure pump + high pressure tee + hose reel + high pressure pipe + nozzle + hydraulic system + vacuum pump + vacuum system + hydraulic lifting mechanism.

High-pressure part: The high-pressure pump is mainly driven by a full-power power take-off to produce high-pressure jet water and various blockages in the pipeline are flushed through the pressure of the reflected water of the high-pressure nozzle to achieve the purpose of dredging and cleaning the pipeline.

Dirt sucking part: The vacuum pump is driven by the side-mounted power take-off to extract the air in the tank to form a vacuum inside the tank and suck the dirt into the tank through atmospheric pressure!

Feature
--Vacuum septic suction truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Japanese ISUZU truck chassis;

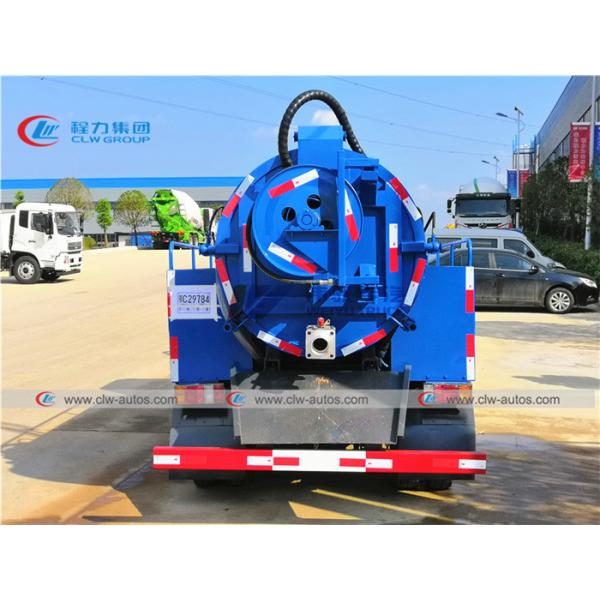

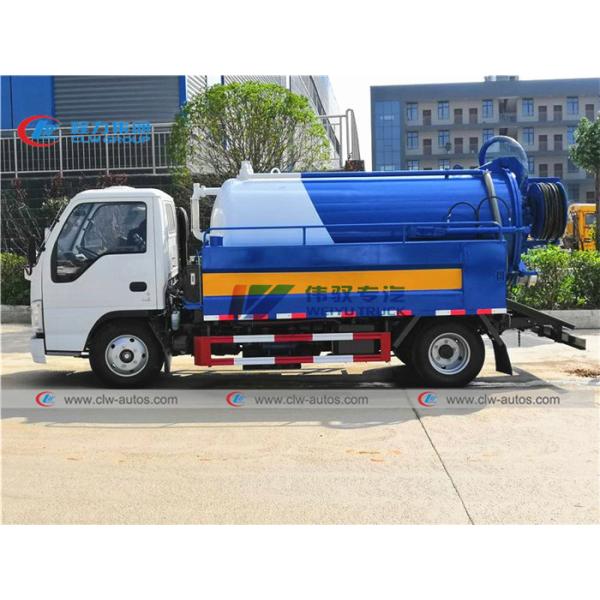

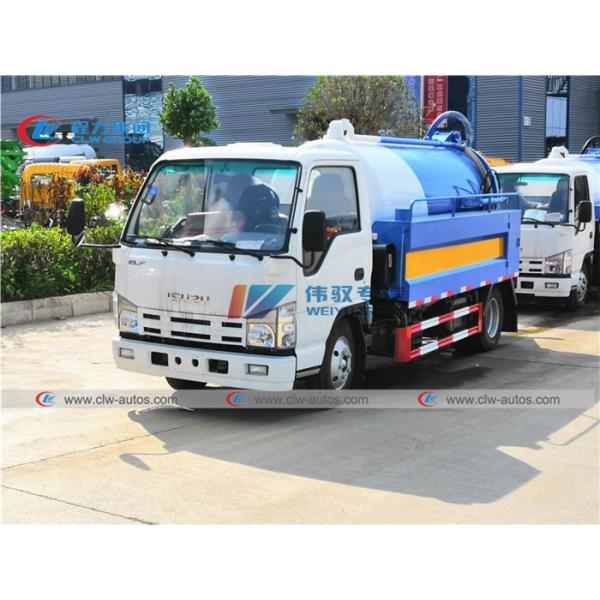

Reference picture

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum TruckISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum TruckISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

Specification
Chassis parameters
Cabin ISUZU 100P cabin/Left hand drive/4x2
Loading weight(kg) 3800kg
Wheelbase(mm) 3360 mm
Dimensions(mm) 5900*1900*2400mm
Front/Rear Axle loading(kg) 2000/4000 kg
Wheel track (front/rear) (mm) 1770/1586 mm
Front/Rear overhang(mm) 1210/1490 mm
Approach/Departure angle(°) 24/12 °
Max. driving speed(km/h) 100 km/h
Clutch Reinforced diaphragm clutch
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 7.00R16
Gear box Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse

Engine

 Brand ISUZU engine
Model 4KH1CN5LS
Fuel type Diesel
Displacement(ml) 2999ml
Power(kw) 72 kw
Horsepower(HP) 98 HP
Max. Torque(N.m) 220
Emission standard Euro V
Sewage Suction Tanker

1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm.

2)Equipped with 60m high pressure tube,diameter 19mm.

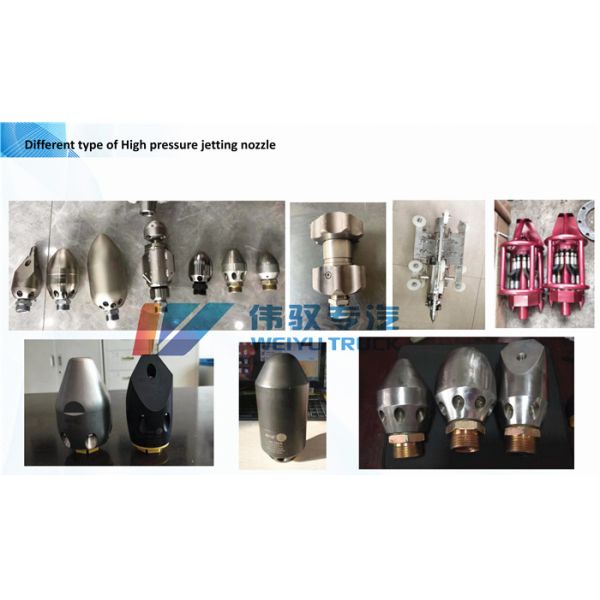

3) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer.

4) Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m.

5) High pressure pump:

Brand : Italy HPP

Model : ESL122/130

Pressure : 16Mpa

Flow : 130L/min

6)Vacuum water pump

Model : SK-6

Type : water circulation pump

Vertical suction: 9m

Flow : 1.5m3/min

Related product

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck

Product tags

vacuum sewage suction tank truck

,

sewage suction truck specifications

,

vacuum sewage suction truck
