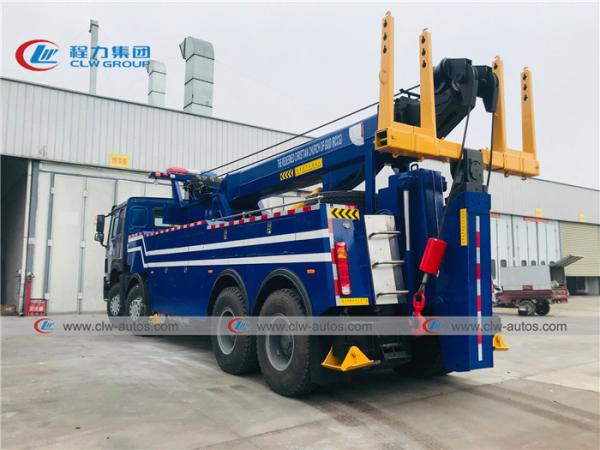

RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
Specifications
Brand Name :
CLW
Model Number :
CLW5310
Certification :
CCC SGS BV
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per month
Delivery Time :
40~50 days after receiving deposit at account
Packaging Details :
naked,waxed,bulk ship,ro-ro
Chassis Brand :
DONGFENG,ISUZU,FAW,HOWO,JAC,JMC
Towing capacity :
30t,30tons,30tons,40t,40tons,40ton,50t,50tons,50ton Rotator Towing truck
Color :
White,yellow,Blue as customized
Steering :
LHD and RHD Rotator Towing truck
Engine :
Diesel engine Rotator Towing truck
Wrecker Type :
Heavy duty/Mege Rotator Towing truck
Winch :
25tonsX2 Nos
Underlift capacity :
25tons Rotator Towing truck
rotation angle :
360 °
Steel rope :
45meters
Diameter :
18mm
Description

RHD 30Tons 40Tons 50Tons Rotator Towing Wrecker Heavy Duty 50t Recovery Tow Truck

Product Description

Purpose of rotator towing truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

Feature of 30tons 40tons 50tons rotator towing truck

1. Full rotating boom. Three 15-meter booms can lift 50 tons and fully extend 15 tons. Wireless remote operation!

2. Two 25-ton hydraulic winches, 55-meter steel wire rope with two 30-ton hooks. Wireless remote operation!

3. The 3 section retractable, lifting arm, in-situ lift 50 tons, fully extended 3 meters, lift 20 tons; lift 150 tons. Four double-cavity hydraulic outriggers (front outrigger folding type). Wireless remote operation!

4. Equipped with engineering warning lights, microphones, rear working lights, hand washing box, U-shaped tire holding device, fork support, fork support seat, chain hook, auxiliary light assembly, auxiliary brake air pipe assembly. Imported hydraulic components. Split-type carriage, double-sided linkage operating device.

Specification of 30tons 40tons 50tons rotator towing truck

CHASSIS
Cabin HW76 standard cabin,Right hand drive,with air conditioner,allowed for 2~3 persons
No load(kg) Curb Weight 13070
Front axle 7000*2
Rear axle 18000*2
Full load Max. Overall Weight 31000
Overall Dimensions(mm) Length 11430
Width 2500
Height 3270
Wheel base(mm) 1800+4600+1350
Track(mm) 2022/1830
F/R Suspension(mm) 1500/2200
A/D Angle(°) 16/18
Driving Model 8*4
Tyre 315/80R22.5
Max. Speed(km/h) 105
Max. Grade-ability(%) 30
Min. Turning Diameter(m) 22.6
Min. Ground clearance(mm) 310
Engine Model WD615.47
Horsepower(HP) 371
Displacement(mL) 9726
Transmission HW19710,10 forwards&2 reverses
WRECKER EQUIPMENT
Max. Towing Weight(kg) 43000
Lifting System Max. Lifting Weight(kg) 25000
Max. Lifting Weight under all extension(kg) 8300
Effective Length of Corbeling Arm(mm) 3650
Extend-retract of Corbeling Arm(mm) 1750
Slope Angle of Corbeling Arm(°) 7
Folding angle under no load(°) -7~92
Folding angle under load(°) -7~16
Max. Ground Distance(mm) ≮900
Landing Strength(KN) 80*2
Hydraulic Hose Tianhe,Guangdong Province
Hydraulic Joint Germany technology and exported Sealing rings
Hydraulic Lock Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
Swivel Joint Yangzhou Zhongmei Pressure Parts Co.,Ltd.
Compartment plate One-step Modeling by Germany 3P2A 1000T punching machine
Hoisting System Max. Hoisting Weight(kg) 50000
Max. Hoisting Weight under all extension when Hoisting Angle is 30°(kg) 7800
Max. Hoisting Weight under no extension when Hoisting Angle is 30°(kg) 18000
Extension Distance of Oil Cylinder(mm) 6000
Length of Crane Arm(mm) 5880
Section No. Of Crane Arm 3
Max. Hoisting Height(mm) 12300
Max. Operation Diameter (mm) 10710
Max. Hoisting Angle(°) 0~60
Rotation angle(°) 360
Winch No. 2
Curb Traction/Per(KN) 250
DN of Steel Rope(mm) Φ20
Length of Steel Rope(m) 45*2
Min. Line Speed(m/min) 5
Front Outrigger Type “H” type
Rear Outrigger Type “L” type
Front Outrigger Span(mm) 6600
Rear Outrigger Span(mm) 4080
Span between front and rear Outriggers 5550
Jump-start cables 12~24 Volts
Electric system Rear working lamp(stop,tail,turning) 3
Revolving beacon 1
Lamps for license plate 1 set
Pneumatic hoses 1 set
Key Parts Multitandem Valve Italy Hydro control
Balance Valve Italy Hydro control
Pump Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd
Hydraulic cylinder Germany Rexroth technology and exported sealing rings
Hydraulic Winch Jiashan Huachuang Hydraulic technology Co., Ltd.
Hydraulic Hose Tianhe,Guangdong Province
Hydraulic Joint Germany technology and exported Sealing rings
Hydraulic Lock Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.
Swivel Joint Yangzhou Zhongmei Pressure Parts Co.,Ltd.
Compartment plate One-step Modeling by Germany 3P2A 1000T punching machine
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating BoomRHD 30T 40T 50T Recovery Tow Truck With Full Rotating BoomRHD 30T 40T 50T Recovery Tow Truck With Full Rotating BoomRHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
RHD 30T 40T 50T Recovery Tow Truck With Full Rotating Boom
Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of towing trucks I can order from your company?


A: There are various sizes of towing trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied towing trucks to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
