5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning
Specifications
Brand Name :
CLW
Model Number :
CLW90050
Certification :
CCC,ISO,BV,SGS
Place of Origin :
Suizhou,China
MOQ :
1 UNIT
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300 units per month
Delivery Time :
30-35days after received advance payments
Packaging Details :
Naked packing
Material :
Stainless steel 304
Auxiliary engine :
ISUZU Brand
Blower :
China famous brand
Wheelbase :
3360 mm
Color :
Customized LOGO painting as per customer request
Description

Product Description

This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.

Chassis
Drive Model 4X2, Left hand drive
Vehicle Main Dimensions Dimensions(L x W x H)(mm) 6200*2000*2590
Wheel base (mm) 3360
Overhang (front/rear) (mm) 1015/1815
Wheel track (front/rear) (mm) 1504/1425
Approach/Departure angle(°) 24/13
Weight in KGS Curb Weight (kg) 4880
Front/Rear axle loading(kg) 2500/4800
Max. driving speed(km/h) 110
Engine Model 4JB1CN
Horse Power(HP) 98
Displacement (ml) 2771
Emission standard Euro IV
Gearbox 5 forwards & 1 reverse
Steering Gear Power steering, hydraulic steering with power assistance
Brakes Hydraulic oil brake
Tire 7.00-16 tire , 6 + 1(spare tire)
Upper & Equipment
Tank Garbage tank Tank material Stainless steel 304
Tank volume(cbm) 4.0 cbm
Water tank Tank material Stainless steel 304
Tank volume(cbm) 1.0 cbm
Operation detail Max. Operation ability(m2/h) 40000
Max. Sucking dimension(mm) 50
Auxiliary engine Model ISUZU Brand
Quantity(No.) 1
Power(kw/HP) 55 /75
Vacuum cleaner Main Vacuum cleaner Quantity(No.) 1
Width(mm) 1800
Side Vacuum cleaner Quantity(No.) 2
Width(mm) 600
Max. Working width(mm) 2400
Sucking Nozzle wheel Quantity(No.) 4
Height Adjustable
Remarks

1. Rear LED pilot lamp

2. Self unloading box body

3. Power system: DC 24V

4. The color will be designed on basis of your requirements.

5. Rear sucking hose as per customer request

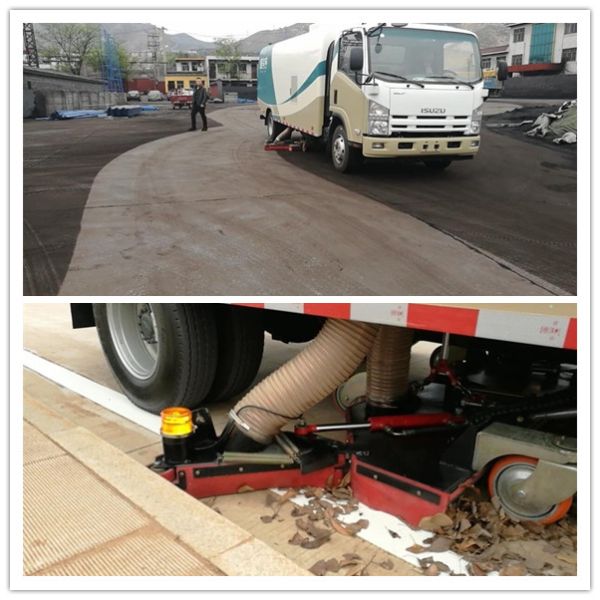

Working Show

5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of Sweeper Truck products I can order from your company?

A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.

Q3: Have you supplied to Sweeper Truck any renowned companies?

A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
