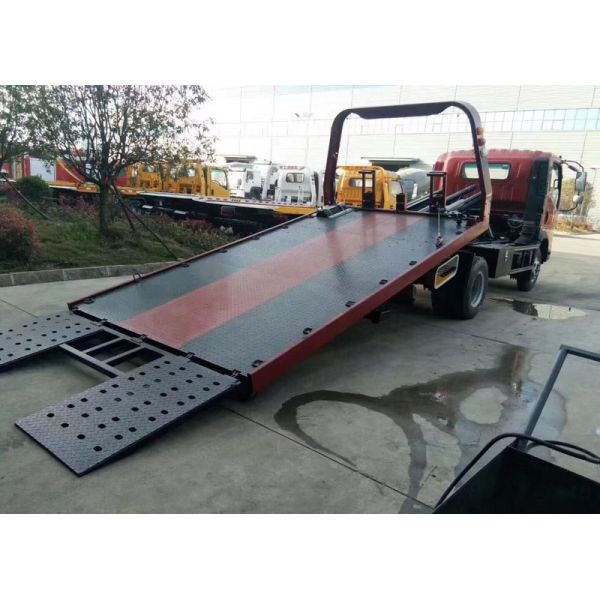

Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5071
Certification :
CCC SGS BV
Place of Origin :
SUIZHOU,CHINA
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per month
Delivery Time :
30 days after receiving deposit at account
Packaging Details :
naked,waxed,bulk ship,ro-ro
Truck Brand :
Sinotruk Howo or as request
Towing capacity :
3Ton
Flatbed Length :
5400mm
Flatbed Width :
2200mm
Truck Overall Size :
7640x2280x2520mm
Winch :
1 Unit
Winch Rope :
25 Meter
Rope Diameter :
DN11mm
Winch Diameter :
DN90mm
Minimum Release Speed :
3.23 meter/min
Description

Product Description

Construction Equipment Car Rescue Sinotruk Howo Flatbed Wrecker Tow Truck

1) 3Ton Towing Recovery Truck for Towing Broken Cars or Equipment

2) Sinotruk HOWO Brand Chassis for Euro 2 or Euro 3 Emission

3) Spare parts of 3ton towing recovery truck:

  • Italy brand multi-way valve and balance valve;
  • Gernamy Roxroth technology hydraulic cylinder and joint;
  • International Brand Sealing element;
  • Strengthed Checked plate

4) Capacity range of towing recovery truck: 3ton to 50ton

Structure drawing

Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck
Item No. Name
1 chassis
2 Warning lamp
3 Single lamp(white-front clearance lamp;red-rear clearance lamp
4 Winch and steel rope
5 Loading plate
6 Side signal lamp
7 Chain hook
8 Wheel lift
9 “L” bracket
10 Operation and hydraulic system
11 Auxiliary wheel
12 Side guard rail
13 Tool box and accessories
14 PTO and oil pump
15 Witch and operation handle of PTO

Specification of howo 3ton towing recovery truck

Item No. Parameters
Overall Dimension 5995x2300x2450 mm
Driving ModelL LHD or RHD
Cabin 2~3 persons
Gross Vehicle Weight 4495 kg
Curb Weight 3860 kg
Loading Weight 505 Kg
Wheel Base 3360 mm
Front/rear Tread 1210/2470 mm
Approach/Departure Angle 24/12 degree
Front Axle 3310 kg
Rear Axle 4965 kg
Engine Yunnei engine
Engine horsepower 115 HP EURO III
Displacement 3856mL (Diesel)
Max Driving Speed 90 km/h
Tire 7.00-16( 7 pieces)
Loading Plate
Body Material Q235A carbon steel
Lifting Weight 3000kg
Loading Plate Dimensions 4450*2200mm
Loading Plate Glide Range 2700mm
Min. Slope Anglo 8 degree
Steel Rope Length 21m
Winch Speed 5m/min
Towing Weight 4000kg
Wheel Lift Max. Length 1640mm
Wheel Lift Extension 1340mm
Tool Box no. 1
Auxiliary wheel no. 2
“L” bracket no. 1
LOGO

Company Logo or any advertisement can be printed on

the carriage body according to the customer's design.
Car Road Rescue Heavy Duty Tow Truck / Sinotruk Howo Flatbed Tow Truck

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of towing recovery truck I can order from your company?


A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied towing recovery truck to any overseas companies?


A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
